7 Axis 16 mm CNC Spring Coiler Machine Compression Spring Wire Bending Machine
Contact Supplier
Product Attributes
- Customization
- Available
- After-sales Service
- 1 Year
- Control Type
- CNC
- Model NO.
- HYD-7160
- Axis Count
- 7 Axis
- Warranty
- 1 Year
- Wire Diameter
- 6.0-16.0mm
- Transport Package
- Plywood Case
- Specification
- 4700*2220*2900mm
- Trademark
- HYD
- Origin
- Dongguan, China
- HS Code
- 84633000
- Production Capacity
- 40 Sets/ Month
Product Images of 7 Axis 16 mm CNC Spring Coiler Machine Compression Spring Wire Bending Machine
Find Similar Products
Product Description

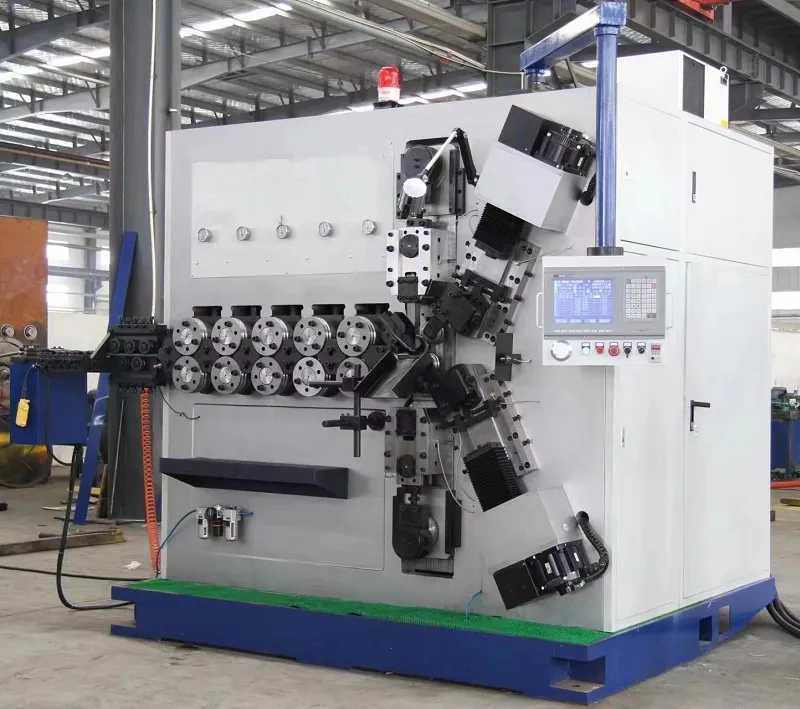

7 Axis 16 mm CNC Spring Coiler Machine Compression Spring Wire Bending Machine
| Model | HYD-7160 |
| Axis Count | 7 axis |
| Wire Size Range | 6.0-16mm |
| Max Outside Diameter | 240mm |
| Control system+decoiler | 1 set |
| Wire Feed Motor | 37KW |
| Wire cutting Motor | 15KW*2 |
| Variable Diameter Motor | 4.4KW*2 |
| Pitch Servo | 4.4kw |
| Lifting-down fixed cutter servo | 2.9kw |
| Machine Dimension | 4700*2220*2900mm |
| Machine Weight | 14000KG |
Machine Features:
1. Explore the use of servo control system and full digital drive. The camshaft can move positively and reversely, and the wire-feeding shaft can feed or withdraw the thread.
2. The large-size (matrix) touch screen is used to operate simultaneously with the thin-film keys, making computer operation easier.
3. Using micro-current detection technology to achieve high-sensitivity probes, no need to slow down detection, 20 times more sensitive than ordinary probes.
4. During production, the production capacity can be increased or decreased by turning the hand wheel at any time; the length of the wire can also be increased or decreased by the wire feeding shaft.
5. The unique integrated function module of the wire feeding frame can save the complicated circuit of the traditional wire frame and allow the computer to directly control the wire feeding frame motor.
6. The external circuits of all computer outputs use contact short-circuit protection technology, which saves the trouble of replacing fuses.
7. Equipped with automatic oil filling function, no manual oil filling is required.

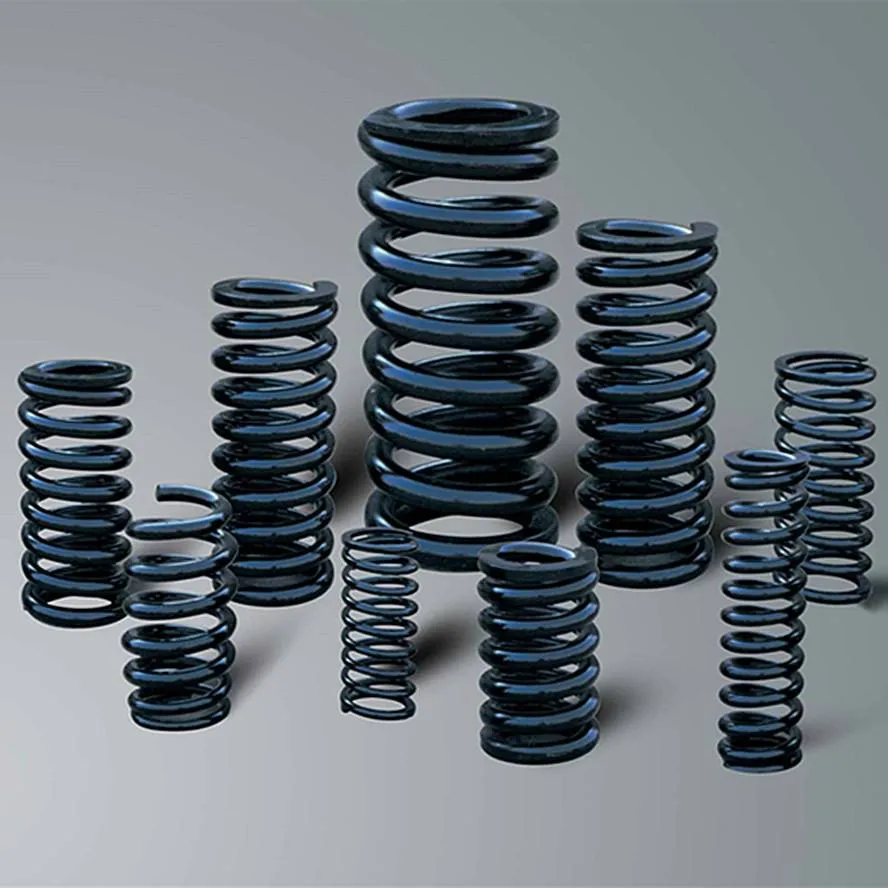

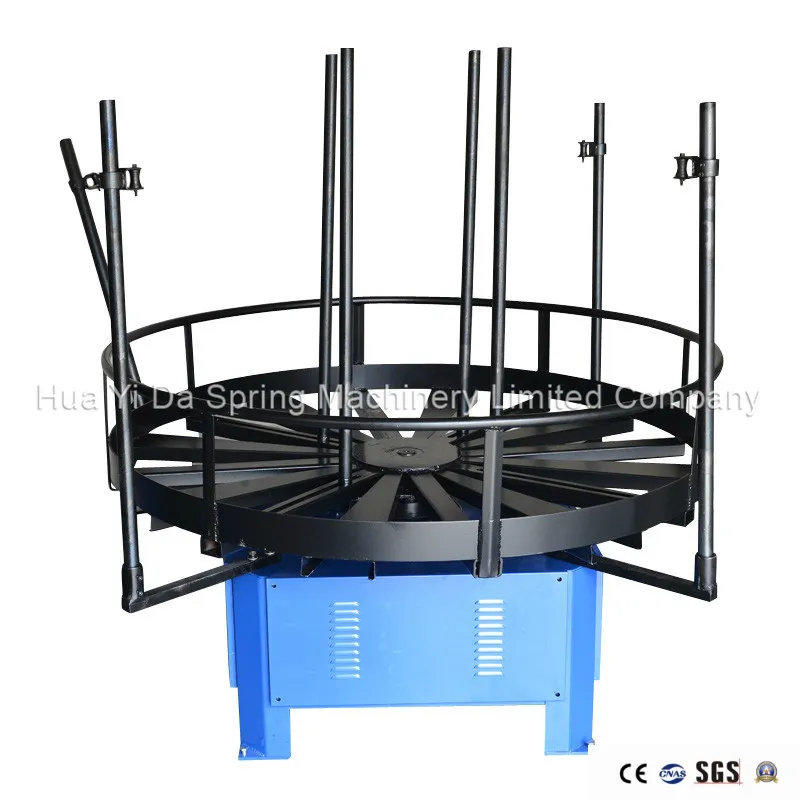

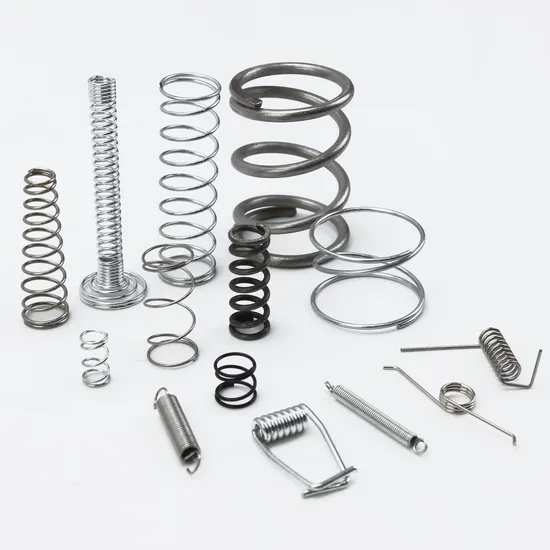

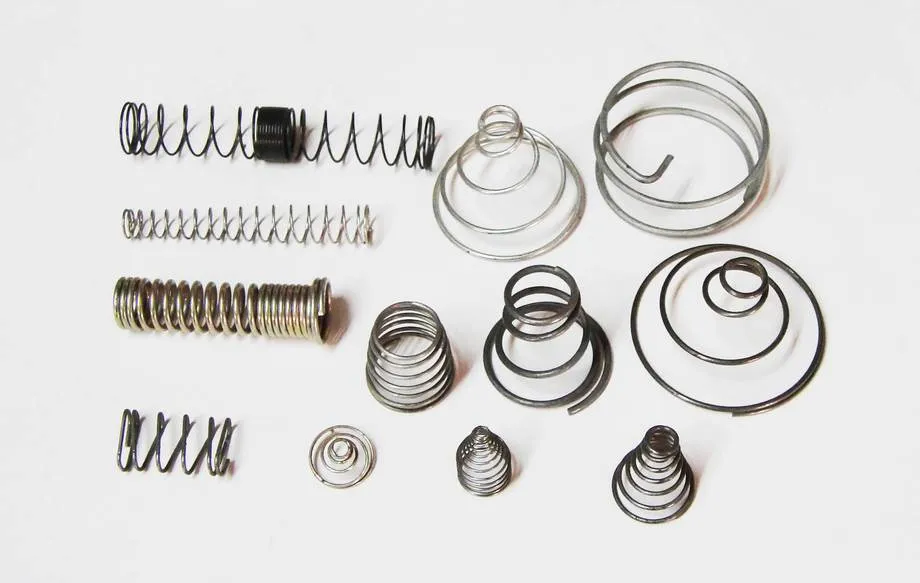

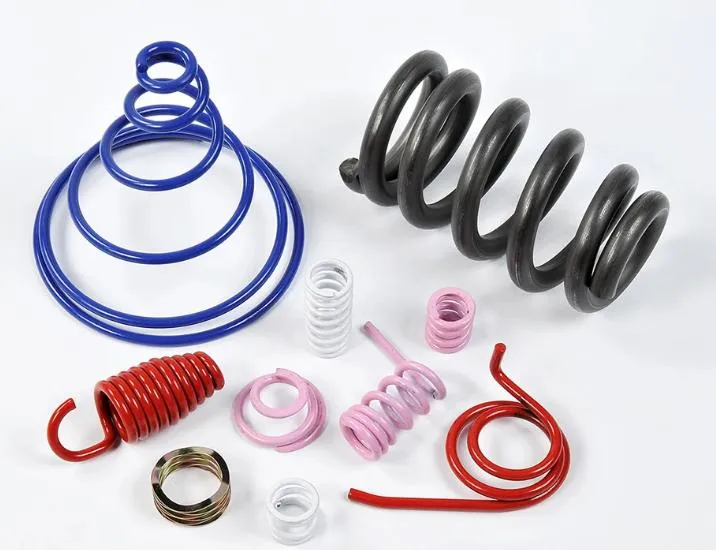

Spring Sample and Wire Decoiler Picture


Shipment
Company Profile
Hua Yi Da Spring machinery Co.,Ltd., the production base located in 101,4th Building,Xingyue Road No.1,Dalingshan Town,Dongguan,Guangdong Province,China. The Technology Research and Development Center established in Guangming new district,Shenzhen city. The main products are versatile CNC spring machine ,spring coiling machine , wire forming machine, cutting tools
HYD has more than 50 mechanical equipment, annual production capacity is more than 1000 units.
HYD has been cooperating with Taiwan Kun Joo Co., Ltd. in 2010.We work together to create the best technology for the core of being a brand-name enterprise,integrates production and sales as one of professional CNC spring machine manufacturer.
Our Advantage
The assembly department are all skilled,with rigorous work attitude and skills to ensure machine quality requirements.The control system and motor are from Japan,Taiwan and direct related products from these two companies.
The purpose of our company is to improve the quality of our research development, quality and service, to maintain positive interaction with customers, to provide complete after-sale service .
The service department always stick to "service first, customer first service concept is to provide full range service for all customers. We could provide free training for customers to learn the machine operation so that the customer could master it fast etc.Strong technique, advanced production equipment, modern management system make HYD to improve fast.
In the future increasingly fierce competition in the market, the company will always insist on : "perfect quality, good service."
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.
5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.
6.How to contact HYD?
Facebook Amelia Li
Note: If the spring needed for your application cannot be found in our website.
Send below information or drawing to my email. We can fabricate it for you.
1. Wire diameter
2. Material of products
3. Free length
4. Maximum outside diameter, minimum inside diameter
5. Number of coil
About the Supplier
This supplier has been audited by BV. Verify the report on the official BV website with ID "MIC-ASR261035". Items marked "" are certified.
Company Profile
Hua Yi Da Spring Machinery Co., Ltd, manufacturing base; Located in the Industrial Zone, Dongguan Da Ling ShanYangwu, R & D center; Established in the Guangming District, Shenzhen. Mainly the production of universal computer spring machine, Computer Spring Coiling Machine, Wire Forming Machine, spring accessories, tools, and the series of multi-model products. The company has 50 sets of processing equipment, annual production capacity of more than 200 units.
2010 with the well-known enterprises in Kun-chou, the company joined forces, together to create the leading technology for the core of the brand-name enterprises. Is the R & D personnel, and absorption of foreign advanced product design, advaced machining process so that the company's products in the design being perfect. Production assembly line employees have a skilled operation skill, rigorous work attitude and skilled operation skills to ensure the product quality requirements. The Company's control system and servo motor are the introduction of Japan, Taiwan and the mature technology of manufacturing and its related products. Wire feeding precision. Forming stable and accurate, the appearance of new features, digital control, color Chinese/English interface, simple operation, the majority of customers, young ignorant.
Innovative research and development, improve quality, service motive to maintain positive interaction with customers, and dedicated service for our customers to enhance their own competitiveness, capture market opportunities. Adhering to the service of the company's products sales service department, customer-oriented service concept to provide our clients a full range of after-sales service to answer customer problems in the process of product sales use. Learning machine operating detection and exclusion method. Customers after the purchase of equipment as quickly master the use, maintenance, and maintenance methods. Dealers to sell peace of mind, the user buy the rest assured. Customer satisfaction is the source of our growth is always our goal. Strong technical force, advanced production equipment, modern management system, Hua Yi Da Spring Machinery Co., Ltd. And the fast-growing customer base in the spring industry partners. In the future in an increasingly competitive market, the company will continue to adhering to"to improve the quality, service motive"the purpose, for the spring industry customers to deliver consistent, affordable spring production of special equipment.
About Our Factory & Business Background
- Address
- No. 32 Hexiang Middle Road, Hesheng Town, Heshan City, Dongguan, Guangdong, China
- Terms of Payment
- LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash
- International Commercial Terms(Incoterms)
- EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
- Average Lead Time
-
Peak Season Lead Time: one month
Off Season Lead Time: within 15 workdays - Nearest Port
- Shenzhen,Guangzhou
Our Production Capability & Technical Expertise
Our Industry Experience & Global Business Record
- Export Year
- 2008-01-03
- Main Markets
- North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
