Product Highlights
- High Automation Efficiency: Fully automatic production line saves labor costs and reduces intensity with stable operation.
- Spiral Knife Roller Design: Spiral knife roller solves instability issues and extends blade service life compared to straight knives.
- High Precision Counting: Uses high-resolution encoder for 100% accurate counting of folded tissue products.
- Customizable Machine Color: Machine color is white by default but can be customized upon order.
- Versatile Material Support: Supports straw pulp, wood pulp, sugarcane pulp, and bamboo pulp jumbo rolls.
- Global After-Sale Support: Engineers provided for installation, debugging, and training with one-year warranty.
- Servo Drive Technology: Log saw uses servo drive and frequency control for enhanced stability and cutting precision.
- Multi-Function Packaging: Supports single bag, multi-bag, and bundle packing formats with automatic sealing.
Product Attributes
- Customization
- Available
- After-sales Service
- Installation, Debugging and Training The Workers
- Warranty
- One Year
- Model NO.
- JY-MJZ-7PL
- Certification
- CE, ISO 9001:2000, ISO 9001:2008, SGS
- Condition
- New
- Control
- Automatic
- Embossing Type
- Full-Embossing
- Embossing Roller
- Steel Roller
- Tissue Packaging
- Bag
- Function
- Multi-Function
- Tissue Type
- Pack
- Machine Color
- White, Can Be Ordered
- Machine HS Code
- 84418090
- Machine Model
- CS-180/7L
- Folding Products Size
- 90*(120-210)X2mm
- out Put (8 Hours)
- 8000~10000kg
- Transport Package
- Wooden Cases
- Specification
- 20000*10000*2000mm
- Trademark
- Jingyi
- Origin
- China
- HS Code
- 84418090
- Production Capacity
- 50 Sets Per Year

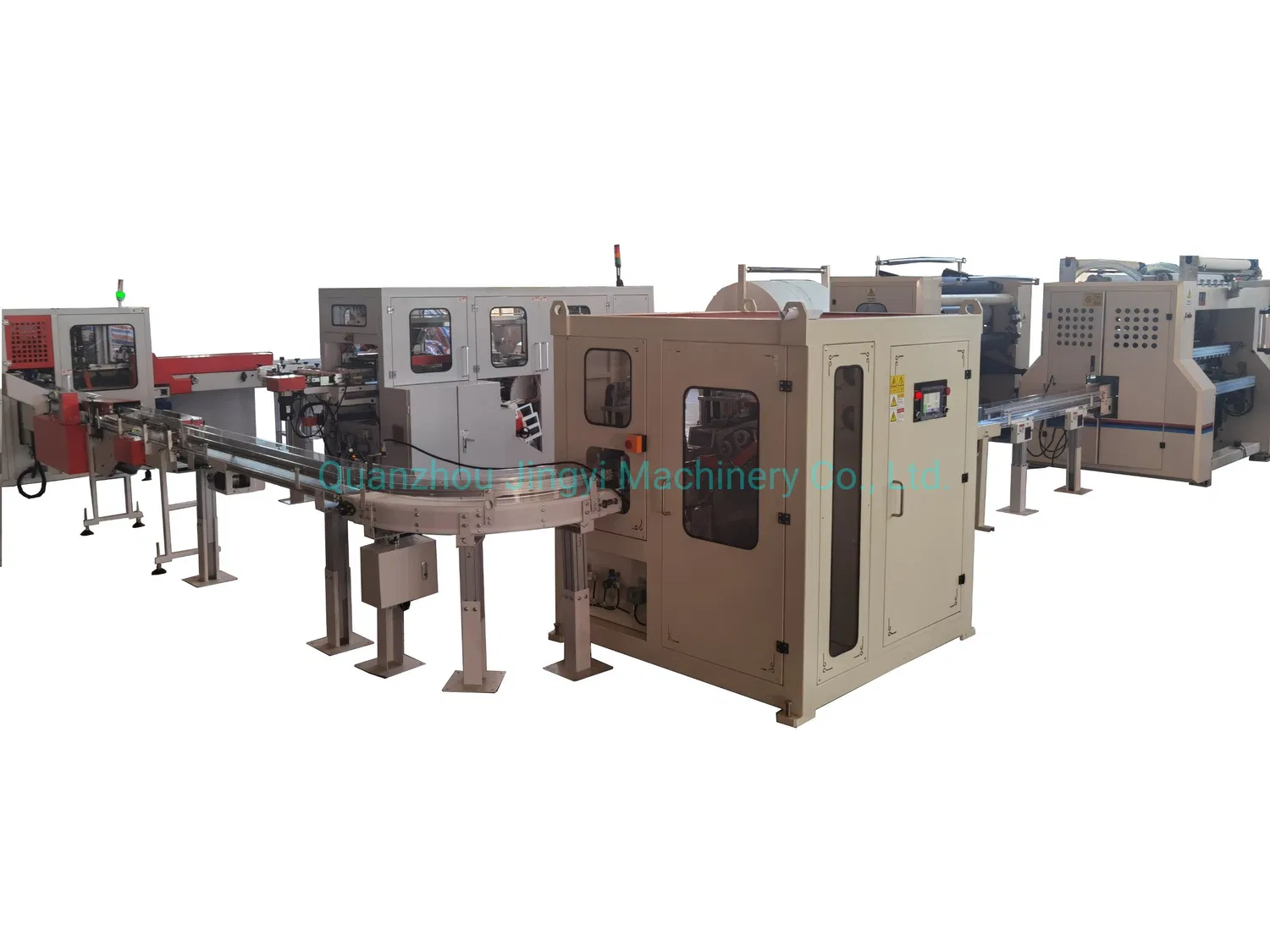

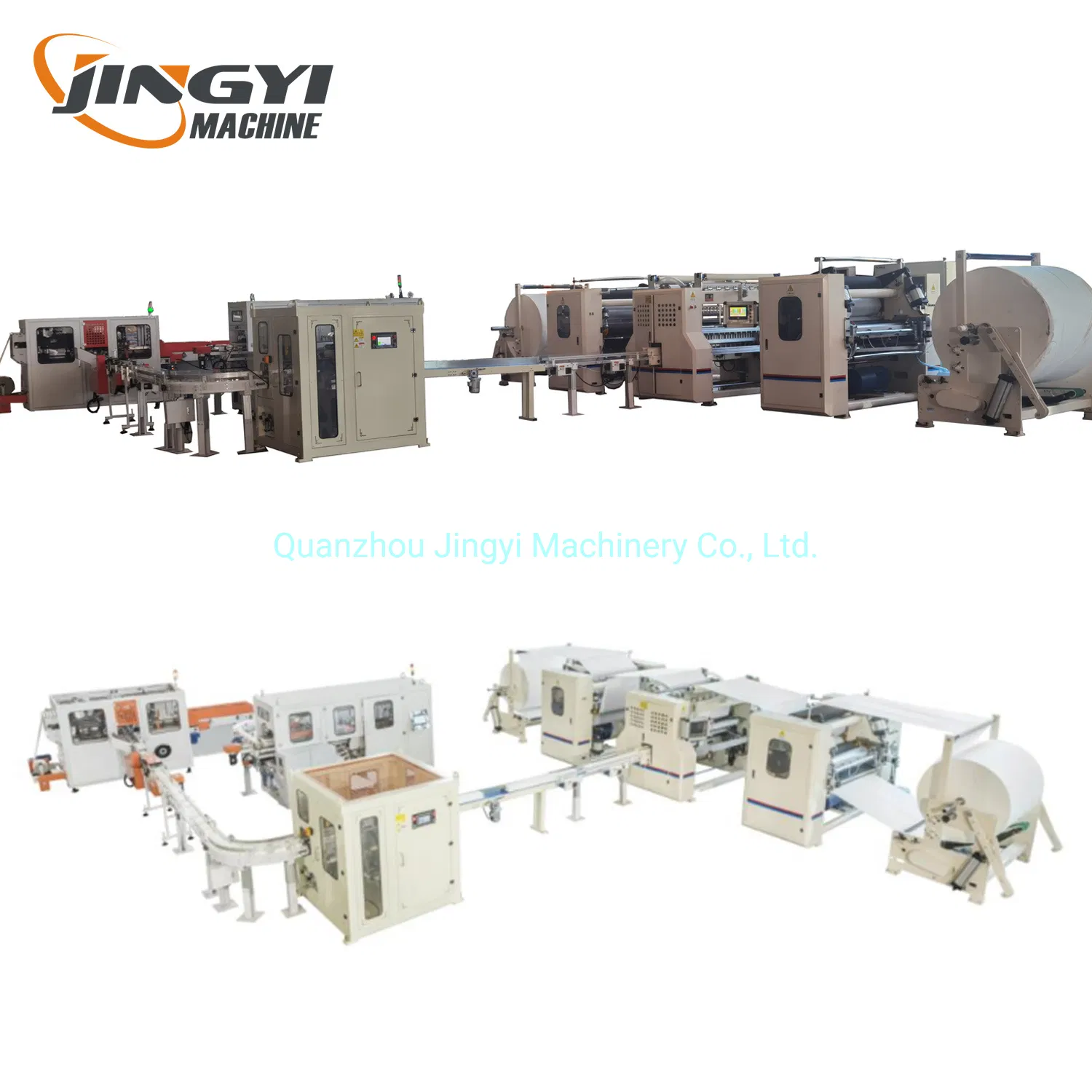

Product Images of 7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine
-
7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine -
7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine -
7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine -
7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine -
7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine -
7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine -
7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine
Find Similar Products
Product Description
7 lines fully automatic facial tissue machine with auto packing machine
Outline:
Fully Automatic facial tissue production line is consist of facial tissue folding machine,log saw, single bag packing machine and multi bags packing machine. Machine working smoothly and stable from the raw material to finished products. This production line is of high degree of automation, save labor costs, reduce labor intensity, which is the best choice of the production of tissue products.
1, JY-CS-180/7L V fold Hand towel&Facial Tissue Making Machine with Color Glue Lamination
Main function:
V folding color lamination hand towel machine process paper material after embossing,cut off,interfold become V fold,The products are widely used in hotels, office, kitchen and so on. It's convenient and health.This machine can folding,slitting,counting,with high speed,output orderliness.
Main features:
The paper-breaking knife roller adopts the structure of spiral knife roller, which effectively solves the problems of the stability of the paper-breaking and the service life of the blade.
The structure of the paper-breaking knife roller adopts the structure of the spiral knife roller. The original straight knife is a full-cut type, while the spiral knife roller is a point-cut type, which solves the problems of the instability of the paper break and the short service life of the blade caused by the original straight knife structure.
Main parameters:
Design speed:100m/min
Stable production speed:70-80m/min,or max sub-stacking speed 6-10logs/min
Common jumbo roll width:1400mm
Estimated daily output:about 7.5T/day (Note:jumbo roll is three layers, 15g/m², for 22hours production per day)
Capacity calculation (example of calculation method):
Paper gsm :15gsm, 6 layers, jumbo roll width 1400mm, efficiency coefficient: 65%, production time: 22h, production speed: 70m/min, number of machine: 1 set
Capacity:
70 (m/min)*1.4 (m) *15 (g/m2) *6 (layers) *60 (minute) *22 (hours) *1 (unit)*0.65÷1000000
=7.5 (tons)
Note:The above output calculation is for reference only. The specific capacity is related to the jumbo roll gsm,jumbo roll characteristics, product specifications and the specific conditions of each company.
Jumbo roll layer:2-3layers
Jumbo roll:Straw pulp paper, wood pulp paper, sugarcane pulp paper, bamboo pulp paper and so on.
GSM of jumbo roll:two ply, gsm of each ply is 14-18g/m2 ;three ply,gsm of each ply is 13-15g/m2.
Main machine folding unit
2, DHX-150 single Channel log saw cutting machine
The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Main technical parameters
4, JY-B20T Fully automatic facial tissue bundle packing machine
Machine main advantages
About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Workshop:
About the package and shipping:
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sale Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Martin Wu
Outline:
Fully Automatic facial tissue production line is consist of facial tissue folding machine,log saw, single bag packing machine and multi bags packing machine. Machine working smoothly and stable from the raw material to finished products. This production line is of high degree of automation, save labor costs, reduce labor intensity, which is the best choice of the production of tissue products.
1, JY-CS-180/7L V fold Hand towel&Facial Tissue Making Machine with Color Glue Lamination
Main function:
V folding color lamination hand towel machine process paper material after embossing,cut off,interfold become V fold,The products are widely used in hotels, office, kitchen and so on. It's convenient and health.This machine can folding,slitting,counting,with high speed,output orderliness.
Main features:
The paper-breaking knife roller adopts the structure of spiral knife roller, which effectively solves the problems of the stability of the paper-breaking and the service life of the blade.
The structure of the paper-breaking knife roller adopts the structure of the spiral knife roller. The original straight knife is a full-cut type, while the spiral knife roller is a point-cut type, which solves the problems of the instability of the paper break and the short service life of the blade caused by the original straight knife structure.
Main parameters:
Design speed:100m/min
Stable production speed:70-80m/min,or max sub-stacking speed 6-10logs/min
Common jumbo roll width:1400mm
Estimated daily output:about 7.5T/day (Note:jumbo roll is three layers, 15g/m², for 22hours production per day)
Capacity calculation (example of calculation method):
Paper gsm :15gsm, 6 layers, jumbo roll width 1400mm, efficiency coefficient: 65%, production time: 22h, production speed: 70m/min, number of machine: 1 set
Capacity:
70 (m/min)*1.4 (m) *15 (g/m2) *6 (layers) *60 (minute) *22 (hours) *1 (unit)*0.65÷1000000
=7.5 (tons)
Note:The above output calculation is for reference only. The specific capacity is related to the jumbo roll gsm,jumbo roll characteristics, product specifications and the specific conditions of each company.
Jumbo roll layer:2-3layers
Jumbo roll:Straw pulp paper, wood pulp paper, sugarcane pulp paper, bamboo pulp paper and so on.
GSM of jumbo roll:two ply, gsm of each ply is 14-18g/m2 ;three ply,gsm of each ply is 13-15g/m2.
Main machine folding unit
| No. | Item | Technical parameters |
| 1 | Design speed | 100 m/min |
| 2 | Stable production speed | 70-80 m/min,or max separating and conveying speed 6-10logs/min |
| 3 | Finished products unfolded size | 180mm(+1,-3)* paper width |
| 4 | Finished products folded size | 90(+3,-1)* paper width |
| 5 | Finished products height | 50mm-135mm(folded height, not height after package) |
| 6 | Whole machine structure | Wall panel frame type |
| 7 | Counting method | Using high-resolution encoder for calculation, counting is 100% accurate |
| 8 | Folding unit | Vacuum adsorption folding |
| 9 | Folding method | V-shaped staggered folding |
| 10 | Folding roller processing method | After quenching and tempering, and using high-precision deep hole processing to ensure the rigidity and strength of each roller, and all of them are processed by CNC machining center, G3.2 level dynamic balance, to ensure the precision requirements of the folding roller during high speed folding |
| 11 | Paper broken folding roller |
2 paper broken folding rollers, and there are 3 to 4 paper beoken bottom knives evenly distributed on the rollers (the number will change according to different specifications) to ensure the length of each broken paper is 180 (+1, -3) mm, and there are regular vacuum suction holes arranged beside each bottom knife on the roller surface, which is used to adsorb the cut paper and attach it to the roller surface. |
| 12 | There are 3-4 paper inserting knives and 3-4 folding V grooves evenly distributed on the rollers (the number will change according to specifications), to ensure the size of paper after folding is 90mm (+3, -1), and there are regularly arranged vacuum suction holes beside each insert knife and the folded V groove on the roller surface, which are used to adsorb the cut paper and attach it to the roller surface. | |
| 13 | Paper broken bottom knife | All are processed with imported materials, and the bottom knife with suction hole structure to ensure the paper not turn over when breaking at high speed, making the finished product more tidy |
| 14 | Paper broken upper knife | All are processed with imported materials, and adopts the design of spiral upper knife to ensure the durability of the upper knife |
| 15 | Paper broken method | Overall lifting. There is a spiral blade at the front and back. Spiral paper breaking structure; stable paper breaking and long blades life |
| 16 | Paper drag method | Manual |
| 17 | Vacuum pipe part | On-site vacuum duct piping and construction are handled by the buyer |
| 18 | Machine jog function | Can choose the jog function on machine |
| 19 | Machine main motor power | 4KW |
| 20 | Machine vacuum pump power | 22kw |
| 21 | Power supply | Three phase, 380V 50Hz |
| 22 | Controlling air pressure | 24V |
| 23 | Compressed air pressure | ≥0.6MPa |
| 23 | Gas consumption | 1000L/shift |
2, DHX-150 single Channel log saw cutting machine
The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Main technical parameters
| The length of the none cut off facial tissue | minimum 500mm |
| The Height of tissue | 30~130mm |
| Design Speed | 150cuts/min |
| operating speed | 120cuts/min |
| Round blade outer diameter | Φ610mm |
| Finished products specification | 70~300mm |
| Paper width | 70~110mm |
| Cutting Length | 70~300mm |
| Left-over Length | 20~65mm |
| Power | 11KW |
| power supply | 380V 50Hz |
| Air source | 0.5~0.8MPa |
| Machine Size | 4600*1700*2500mm |
| weight of machine | 2300~2600kg |
| brake | Parameter setting (auto/manual) |
| Stepping sharpening knife | Parameter setting (auto) |
| Pneumatic sharpening knife | Parameter setting (auto/manual) |
3. T80SD Automatic Facial Tissue Packing Machine
| Technical Specifications | Description | Remark |
| Scope of application | Facial tissue, hand towel,napkin tissue | |
| Infeed | ASF Full automatic | Five sections of intelligent flexible feeding mode |
| Max.design mechanical speed | ≤ 80 bags/min | Related to specification of packing |
| Max. stable speed | 65 bags/min | Related to specification of packing |
| Tissue length range (finished product) | 120 mm-210 mm | Over this size can be customized |
| Tissue height range(finished product) | 40 mm-100 mm | |
| Tissue width range(finished product) | 90 mm-105 mm | |
| Machine size | L*W*H= 4600 *3620 *1770 mm | Standard size |
| Machine weight | About 3T |
|
| Packing raw material |
CPP film | |
| Film Thickness | 0.04mm-0.055mm | |
| Max film diameter | 400 mm | Over this size can be customized |
| Film core diameter | 76mm | In accordance with international standards |
| Max film width | 340mm | Over this size can be customized |
| Air pressure | Minimum air pressure 5MPA |
Equipped by user |
| Power supply | 380V/50HZ | Following China's electric power standard |
| Total drive power | 4.8 KW | The sum of main motor, servo motor, Sum of speed regulating motor power |
| Total heating power | 4.6 KW | Side seal, side sealing part of heating power combined |
| Voltage variation | +/-10% | In accordance with international standards |
| Packing format | Three-dimensional wrap | vertical sealing first and then two side sealing |
4, JY-B20T Fully automatic facial tissue bundle packing machine
Machine main advantages
- TP-B20T automatic tissue bundle packing machine is suitable for automatically bundle packing soft drawn facial tissue, napkin and V fold hand towel paper.
- Adopt servo control for paper array, paper arrangement, paper advance, paper filling in to bag, bag pulling, bag opening and seal functions. Easy to operate and maintenance.
- Adopts central vacuum station management mode.
- Adopts up & down heating mode by heating pipe, sufficient satisfy different kind of packaging material, can ensure good look seal and stable running.
- Equipped with bag open detect function, air source management function, auto alarm when fault and display function, servo overload protection function.
- Easy for single/double rows changing, easy to operate and high efficiency.
- Maximum stable working speed:17 bags/min.
| Basic parameter | Description | Remark |
| Scope of product | Single film packed tissue product | Bundle packing |
| Paper feeding mode | ASF intelligent paper feeding | |
| Packing style | 1*3,1*4,1*5 2*3,2*4,2*5 |
Need to be in the total packing range |
| Design speed | 20 bag/min | |
| Stable working speed | 16-18 bags/min | Relate to product specification |
| Bag film installation structure | Dual bag racks | |
| Bag storage quantity | Less than 400 premade bags | |
| Length range | 120 mm- 480 mm | |
| Width range | 135 mm- 420 mm | |
| Height range | 90 mm- 110 mm | |
| Machine dimension | L 3300 mm*W 1400 mm*H1900 mm | |
| Machine weight | About 1900 KG | |
| Premade bag material | CPP,PE film | Thickness≥0.04mm |
| Compressed air | Pressure≥0.6MPA/Flow≥30L/min | Buyer prepare |
| Power supply | 380V/50HZ | |
| Total motor power | 16 KW | |
| Total heating power | 2 KW | |
| Voltage wave range | +/-10% | National standard |
| I/O input(VDC) | 24VDC | |
| I/O output(VDC) | 24VDC | |
| Machine movement control mode | 7 shafts servo positioning control | Servos drive |
| Machine main transmission mode | Servo motors drive belts | |
| Machine color and craft | Deep grey, static spraying paint craft | |
| Bag type | Same as manually bag with handle and hole | |
| Gusset forming mode | Vacuum mould. | |
About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Workshop:
About the package and shipping:
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sale Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Martin Wu
About the Supplier
){kind=link}
Company Profile
Keep Improving, Striving for Excellence
Quanzhou JingYi Machinery (JYM) is located in the beautiful hometown of Quanzhou. Adhering to the "excellence" concept, Quanzhou JingYi Machinery (JYM) is committed to providing customers with more professional equipment and better service.
The main products are machines for toilet paper, facial tissue, napkin paper, handkerchief paper and other machinery, including toilet paper rewinding and perforating machine, full servo log saw machine, box drawing facial tissue machine, napkin paper machine, handkerchief paper machine and the related packing machine.
Our company has strong technical force and strong research and development capabilities. In the past two years, the automatic toilet paper packaging machine and the automatic facial tissue separator machine have been launched, which have won the praise of customers.
Our machine have been exported to Bolivia, Chile, Brazil, Argentina and other South American countries; Nigeria, Ethiopia, South Africa and other African countries, as well as the Middle East, Southeast Asia and other countries, have been unanimously approved by customers.
Customer satisfaction is our highest pursuit, Quanzhou JingYi Machinery (JYM) will provide top-ranking machine and high quality service, work with customers to create a better future.
About Our Factory & Business Background
- Address
- Jiangnan Street, Licheng, Quanzhou, Fujian, China
- Terms of Payment
- LC, T/T, Western Union, Money Gram
- International Commercial Terms(Incoterms)
- EXW, CFR, CIF
- Average Lead Time
-
Peak Season Lead Time: 1-3 months
Off Season Lead Time: 1-3 months - Nearest Port
- Xiamen Port
Our Production Capability & Technical Expertise
Our Industry Experience & Global Business Record
- Export Year
- 2010-02-01
- Main Markets
- North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
FAQ
- What is the warranty period for the machine?
- We provide a one-year guarantee for the machine, with lifelong service support from our technical team.
- Can the machine color be customized?
- Yes, the machine color is white by default but can be customized when you place an order.
- What is the estimated daily output of the machine?
- The estimated daily output is about 7.5 tons per day, based on 22 hours of production with specific jumbo roll parameters.
- What types of raw materials can the machine process?
- The machine can process various jumbo rolls including straw pulp, wood pulp, sugarcane pulp, and bamboo pulp.
- What after-sales services are provided?
- We provide installation, debugging, and worker training at your factory, plus a one-year warranty and lifelong technical support.
- What is the power supply requirement for the machine?
- The machine requires a three-phase power supply of 380V at 50Hz, following China's electric power standards.
- What certifications does the machine have?
- The machine is certified with CE, ISO 9001:2000, ISO 9001:2008, and SGS.
- How is the packing film thickness specified?
- For the T80SD packing machine, the film thickness is typically 0.04mm-0.055mm, but sizes over standard limits can be customized.
Send your message to this supplier
People who viewed this also viewed
Find Similar Products By Category
- Supplier Homepage
- Products
- facial tissue machine
- Production Line
- 7 Lines Fully Automatic Facial Tissue Machine with Auto Packing Machine
Related Categories
Hot Searches
- Automatic Machine Factories
- Automatic Cutting Machine Factories
- Paper Machine Factories
- Automatic Machine Device Factories
- Automatic Paper Tissue Machine
- Used Facial Tissue Machine
- Machine For Facial Tissue
- Paper Tissue Making Machine
- Automatic Tissue Making Machine
- Tissue Machine Bulkbuy
