Advanced Connector Pin Sorting Machine for Efficient Production

Send Inquiry

Dongguan RKE Intelligent Technology Co., Ltd.

12 yrs

5.0 (1 Review)

Send Inquiry

Chat Now

Product Highlights

AI Visual Inspection: Equipped with AI software for automatic inspection based on customer-defined requirements.
8 CCD Industrial Cameras: Provides multi-angle visual inspection of pin dimensions and surface conditions.
High Detection Speed: Achieves a detection speed of 100 pcs/min for efficient sorting.
Comprehensive Defect Detection: Detects burrs, deformation, scratches, and other surface defects automatically.
Customizable Dimensions: Inspects length, width, and key dimensions according to customer drawings.
1-Year Warranty Coverage: Covers equipment failures not caused by human error or force majeure.
Free Software Upgrades: Integrated inspection software is upgraded free of charge throughout its lifecycle.

Product Attributes

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Model NO.: RK-1600
Certification: GS, CE, ISO9001
Condition: New
Application: Electronic Component, Auto Part, Plastic, Seals, Nail, Bolt, Blind Nut, Nut, Screw
Lens Number: 4
Type: Glass Disc
Power: 220V±10%/50Hz±5%/1000W
Air Pressure: 0.5-0.7MPa
Operating Humidity: 30%~70% Rh
Operating Temperature: 20ºC±15ºC
Transport Package: Plywood Cases (No Fumigation Required )
Specification: CE
Trademark: RKE
Origin: China
HS Code: 9031499090
Production Capacity: 200 Sets/Month
Package Size: 1100.00cm * 1000.00cm * 1860.00cm
Package Gross Weight: 355.000kg

Shipping

Online Trading Protection

Payment Guarantee: Platform-protected payments with refund support for eligible order issues.
Platform Logistics: Clearer shipment tracking with platform-supported logistics.
Inspection Service: Optional pre-shipment inspection for quality and quantity checks.
After-Sales & Dispute Handling: Platform-assisted dispute resolution, including refunds or returns when applicable.

Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

Advanced Connector Pin Sorting Machine for Efficient Production

Advanced Connector Pin Sorting Machine for Efficient Production pictures & photos — Advanced Connector Pin Sorting Machine for Efficient Production

Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production

Add Inquiry Basket to Compare

Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production
Advanced Connector Pin Sorting Machine for Efficient Production

1/7

Find Similar Products

Product Description

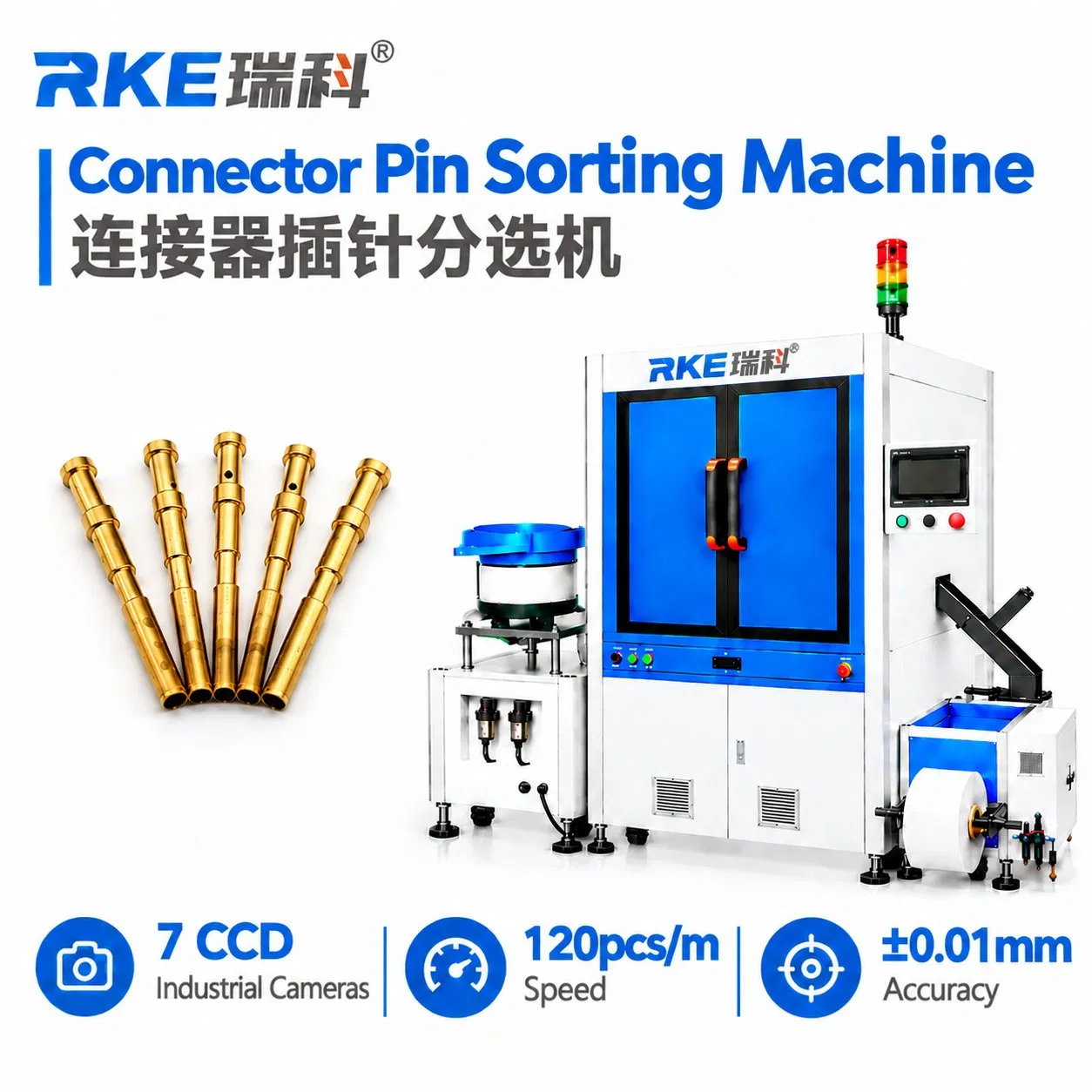

Connector Pin Visual Inspection Machine

RKE Connector Pin Visual Inspection Machine is designed for automated dimensional and appearance inspection of connector pins and contact pin components.

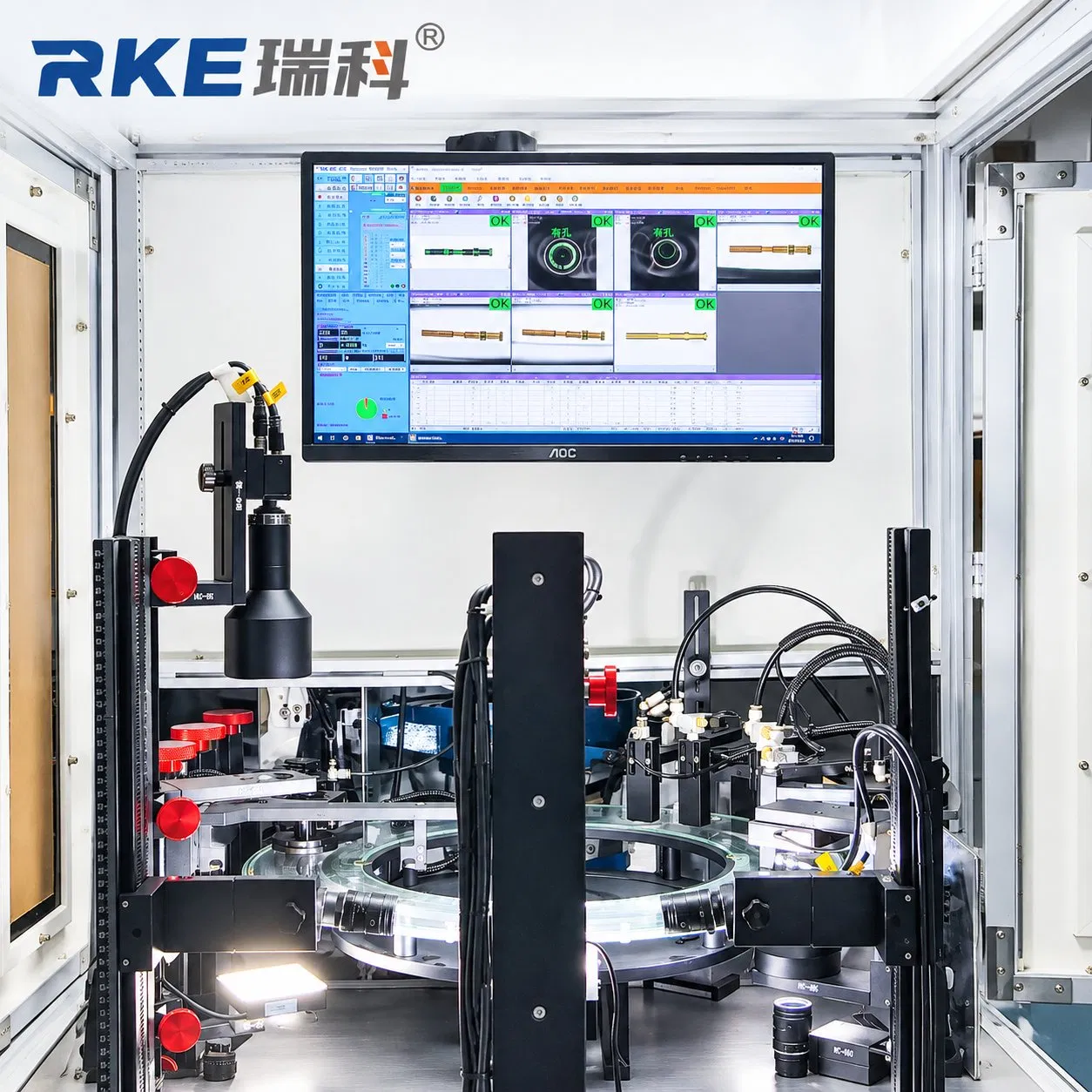

The machine adopts a vibration disc feeding system and is equipped with 360° AI visual inspection software and 7 CCD industrial cameras for automated inspection.

According to customer requirements, the system can inspect key dimensions of connector pins, including multi-section outer diameters and length, and determine whether the measured dimensions meet the specified requirements in product drawings.

In addition to dimensional inspection, the machine can inspect specified appearance defects of connector pins. For this application, it can detect defects such as missing holes at both ends and missing small holes on the outer diameter, according to the customer's inspection requirements.

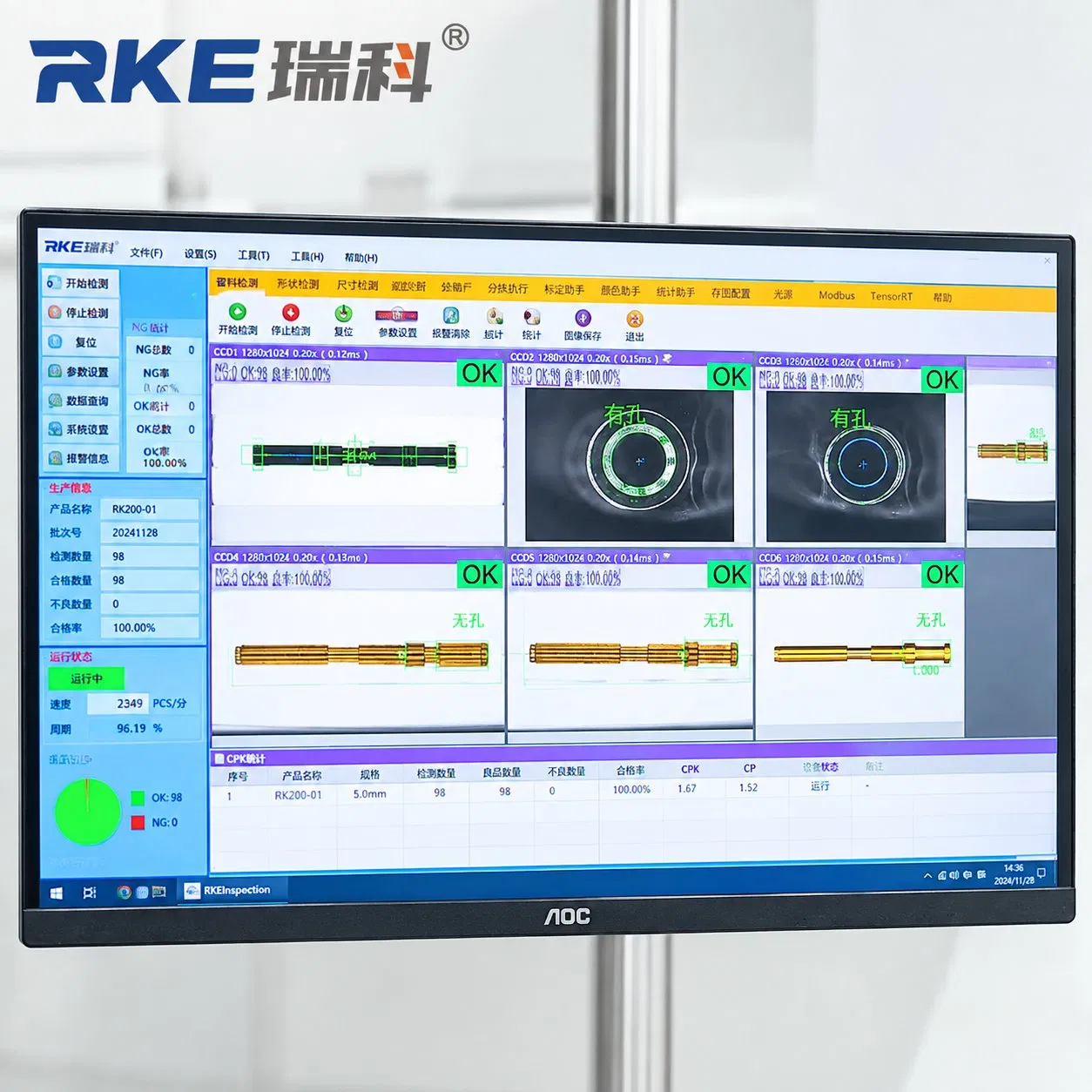

The 7 CCD cameras provide multiple inspection views of the connector pin, allowing different dimensional and appearance characteristics to be inspected within the same automated inspection process.

With automatic vibration feeding and continuous machine vision inspection, the system can reduce dependence on repetitive manual inspection and improve inspection consistency for connector pin production.

The stated inspection speed is 120 pcs/min, with a stated inspection accuracy of ±0.01 mm.

The actual inspection items, dimensional tolerances, hole specifications, defect recognition criteria and inspection performance should be confirmed according to product drawings, samples and customer requirements.

Item

Specification

Optical Sorting Machine
RK-1600

1.Product: Connector Pin / Connector Contact Pin

2.Feeding System: Vibration Disc Feeding

3.Inspection System: 360° AI Visual Inspection

4.Camera: 7 CCD Industrial Cameras

5.Dimensional Inspection: Multi-Section Outer Diameter, Length and Other Specified Dimensions

6.Appearance Inspection: Missing Holes at Both Ends, Missing Small Holes on Outer Diameter and Other Specified Defects

7.Inspection Standard: Product Drawings, Samples and Customer Requirements

After Sales Service

I. Warranty Policy
1.Core Guarantee: Provide one-year free warranty service, covering equipment failures not caused by human error, natural disasters, or other force majeure.
2. Extended Service: After the warranty expires, lifetime maintenance service is provided (repair fees are negotiated upon request).
3.Exceptional Scenario: If damage is caused by improper use (such as operating errors or abnormal high-temperature/high-pressure operating conditions), paid repair service will be provided based on the severity of the failure (fees will be negotiated in advance). Repair service will not be provided for unauthorized disassembly or installation of the equipment.

II. Service Commitment
1. Response Efficiency: Our professional after-sales team ensures a prompt response to inquiries and provides technical support within 48 hours (excluding statutory holidays).
2. Support Types:
A. Remote Service: Use online tools to diagnose and debug the equipment in real time, efficiently resolving issues.
B. Software Benefits: The equipment's integrated inspection and sorting software is upgraded free of charge throughout its lifecycle to continuously adapt to new needs.

III.Training Services
1. Training Type:
Free Training: Receive unlimited free on-site training at our company.
Customized On-site Training: On-site training/technical support by an engineer can be arranged through negotiation (service scope and fees to be discussed separately).
2.Training Content:
A. Equipment operation, parameter adjustment, and routine maintenance skills.
B. Full-process operation of the inspection and sorting software (including inspection configuration for different parts and defects).
C.Duration: Typically 3-5 days, with flexibility based on the trainee's ability and learning progress.

Production process (part)

Lighting Department

Assembly Department

Professional light source design and debugging provide a clear and stable imaging environment for visual inspection, which is the key to image quality.

Hardware integration and machine frame assembly. Completing the modular assembly of equipment is the basic link from parts to complete machines.

Electrical Engineering Department

Software Debugging Department

Responsible for the electrical system construction, wiring and power supply of the equipment to ensure the safety and stability of the equipment's power and signal transmission.

Systematic debugging and optimization of equipment to ensure that hardware and software work together and achieve accurate detection are key links in ensuring that equipment can operate and meet standards.

Company Profile

Dongguan RKE Intelligent Technology Co., Ltd.

Basic Information
Established: 2010
Headquarters: Songshan Lake International Financial Innovation Park
Main Business and Positioning
Core Businesses: CCD vision inspection, 360-degree AI appearance inspection, laser measurement,custom equipment, etc.
Application Areas: 3C electronics, hardware, fasteners, electronic components, new energy vehicle parts, etc.

Scale and Structure

Organizational Structure:

Headquarters + Domestic Branches (Kunshan, Ningbo, Wenzhou, Taicang, Chongqing, Qingdao, etc.)
4 International Service Locations (Malaysia, Russia, Vietnam, and Turkey).
Employee Size: 300+ employees , R&D team of 120+ people.

Production Base: Total area: 26,000 m2 (15,000 m2 production base, 6,000 m2 R&D center).
Global Presence: Products are exported to Asia, Europe, America, and the Middle East, with plans to develop distributors in Europe, America, and Southeast Asia.

Core Strengths

Technical Strength: Over 150 intellectual property rights (patents, software copyrights, trademarks), 10% investment in R&D.

Customer Recognition: Serving over 10,000 companies, including BYD, Foxconn, and Midea.

FAQ

Q: Are you a factory or a trading company?
A: RKE is a source manufacturing factory headquartered in Dongguan, China, with branches in many cities across China, covering more than 20 provinces and cities nationwide.
Internationally, it has service outlets in Malaysia, Russia, Turkey, Vietnam and other countries. Its products are exported to Asia, Europe, America, the Middle East and other regions, and plans to establish an agency network in Europe, America, Southeast Asia and Taiwan to expand overseas markets.

Q: Can customized products be made?
A: Yes.
RKE Company designs all equipment to your exact specifications. Our 300 service engineers and 5,000+ case validations enable the deployment of advanced technologies alongside professional assessment teams, delivering precisely calibrated machines for your distinct product inspection challenges.

Q: What are the workflows for working?
A: 1. Customer Requirements(Confirm your sample inspection requirements )
2. Sample Received(Need to send samples to RKE)
3. Proposal Development
4. Customer Confirmation
5. Contract Signing
6. Machine Production
7. Customer Acceptance
8. Shipment Arrangement

Q: Why Choose Us?
A: 1.Stable and reliable: With 16 years of experience in the vision inspection machine industry.
2.Monthly sales volume: Over 150 units
3.Total served customers: Over 5,000
4.Inspection cases: Over 10,000
RKE independently developed AI-powered detection software leveraging globally advanced algorithms including YOLO V11 and LabVIEW vision technology. By integrating multidimensional algorithmic strengths, this solution achieves breakthroughs in complex scenario recognition accuracy and inspection efficiency, with core performance metrics leading the industry, delivering highly reliable quality inspection for industrial applications.
