Advanced Riveting Nut Screening Machine with Ai Inspection
Contact Supplier
Product Highlights
- AI Visual Inspection: Equipped with AI software and 2 CCD cameras for precise defect detection.
- High Speed Detection: Inspects up to 300 pieces per minute for efficient production workflows.
- Customizable Options: Offers customization for machine color, speed, and accuracy based on requirements.
- Comprehensive Certification: Certified with GS, CE, and ISO9001 standards for quality assurance.
- 1 Year Warranty: Provides a 1-year warranty and after-sales service for peace of mind.
- Real-time Feedback: Optimizes inspection workflows with real-time data for increased productivity.
- Versatile Application: Suitable for electronic components, auto parts, bolts, nuts, and screws.
Product Attributes
- Customization
- Available
- After-sales Service
- 1 Year
- Warranty
- 1 Year
- Model NO.
- RKE-1500
- Certification
- GS, CE, ISO9001
- Condition
- New
- Application
- Electronic Component, Auto Part, Bolt, Blind Nut, Nut, Screw
- Lens Number
- 2
- Type
- Glass Disc
- Machine Color
- White
- Speed
- 300PCS/Min
- Accuracy
- 0.01mm
- Transport Package
- Wooden Package
- Specification
- RKE-1500
- Trademark
- RKE
- Origin
- China
- HS Code
- 9031499090
- Production Capacity
- 200 Pieces/Month
- Package Size
- 1400.00cm * 1120.00cm * 2000.00cm
- Package Gross Weight
- 650.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

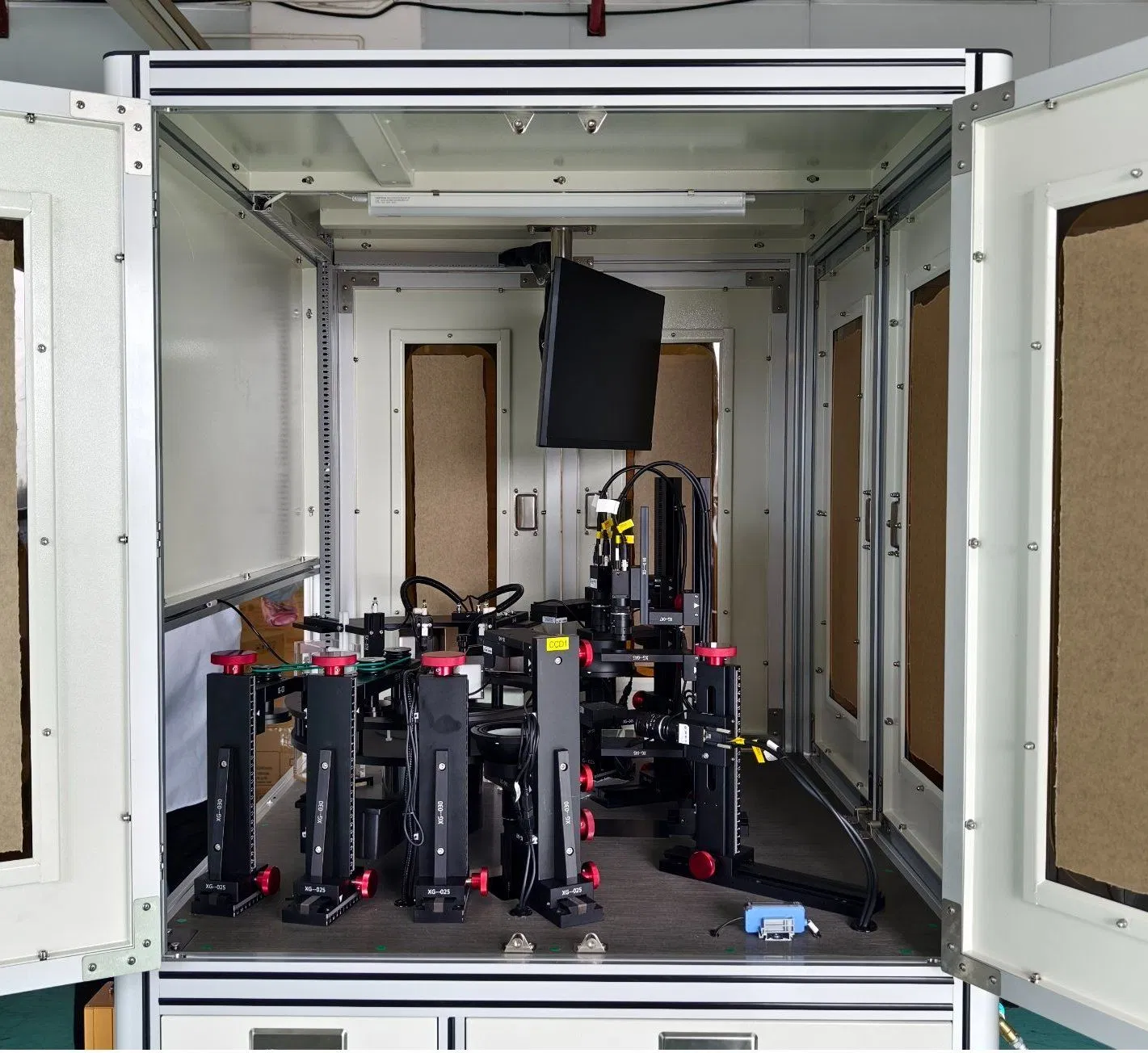

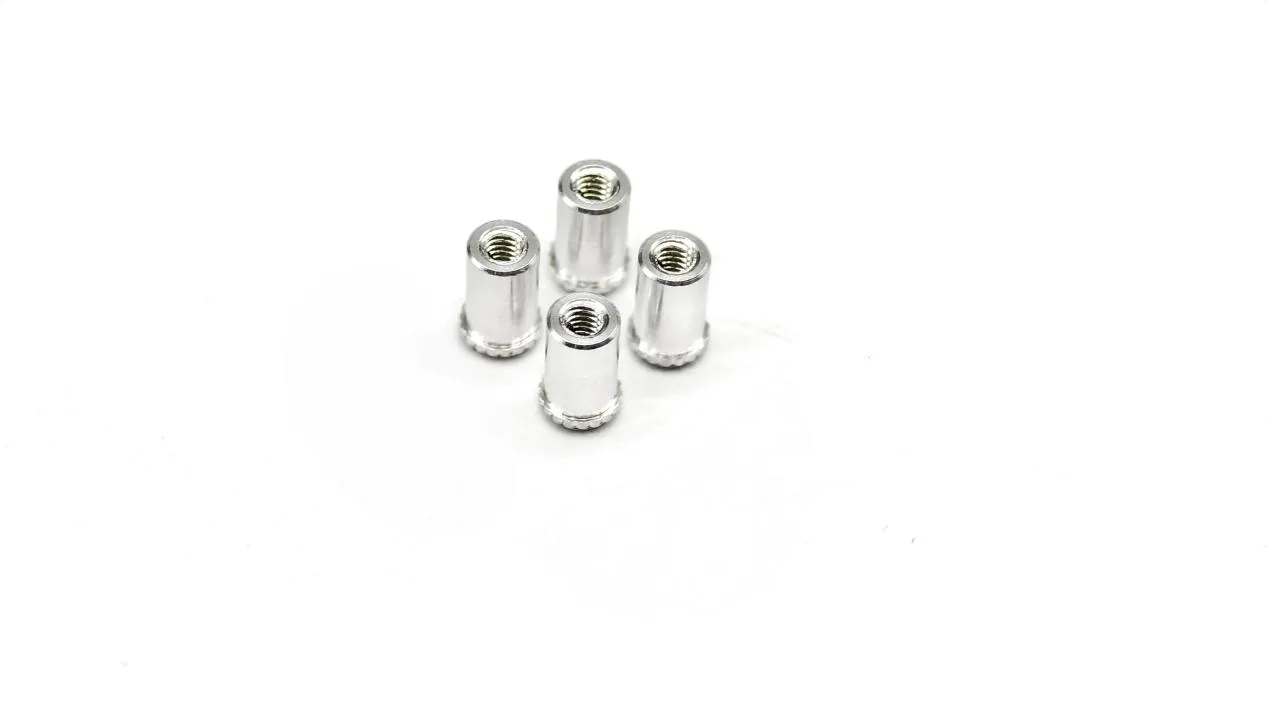

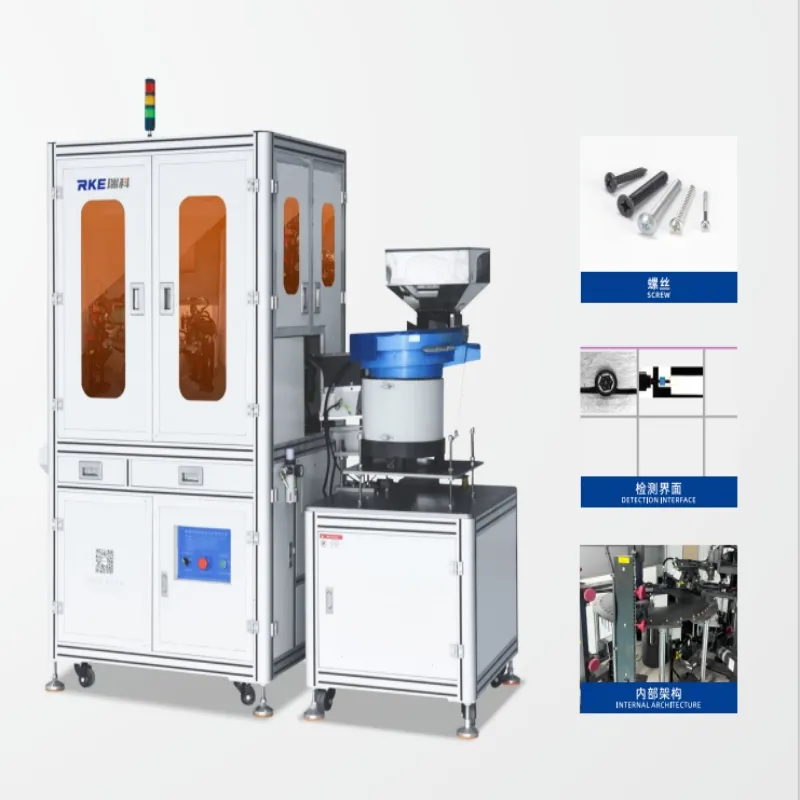

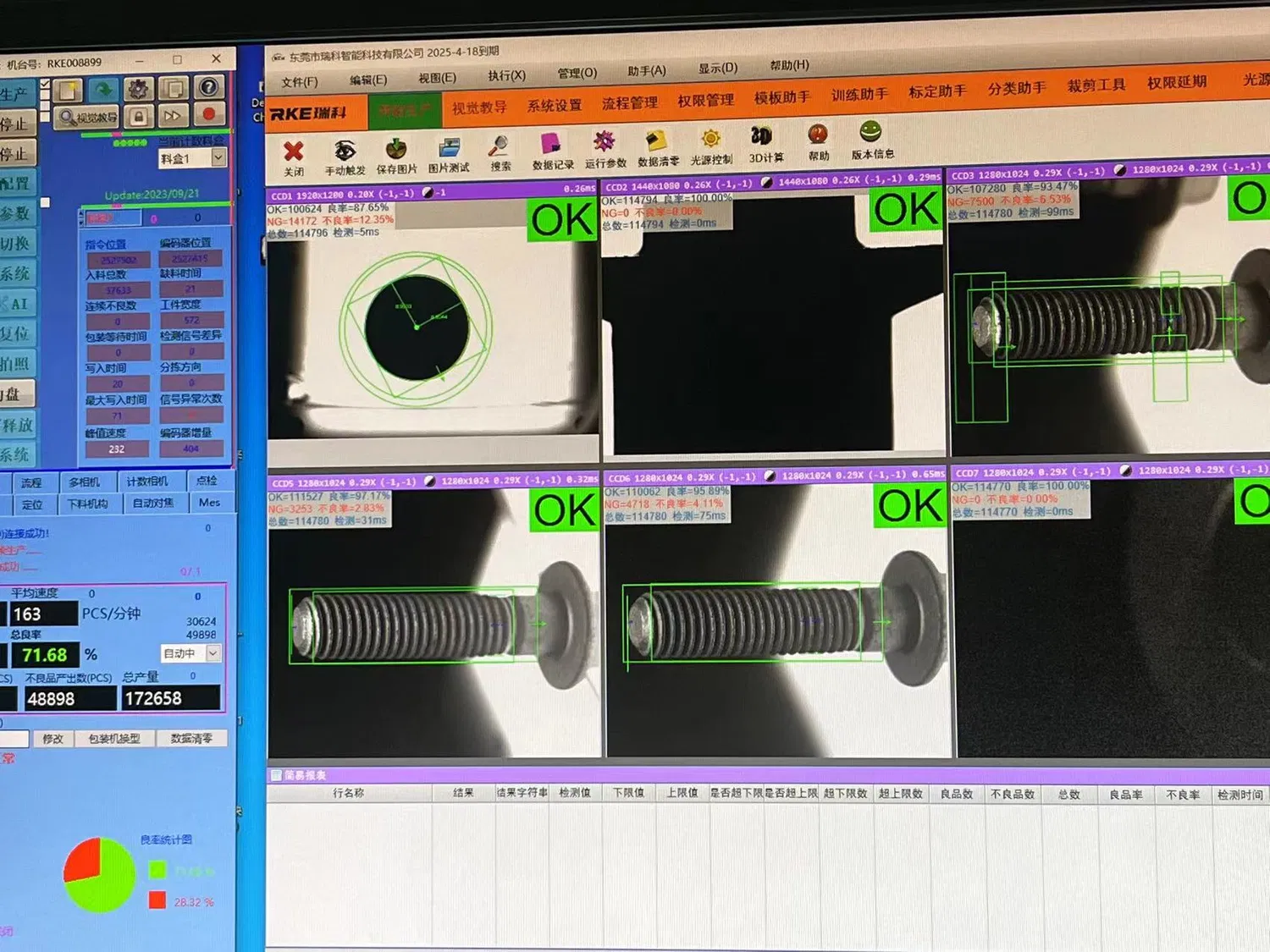

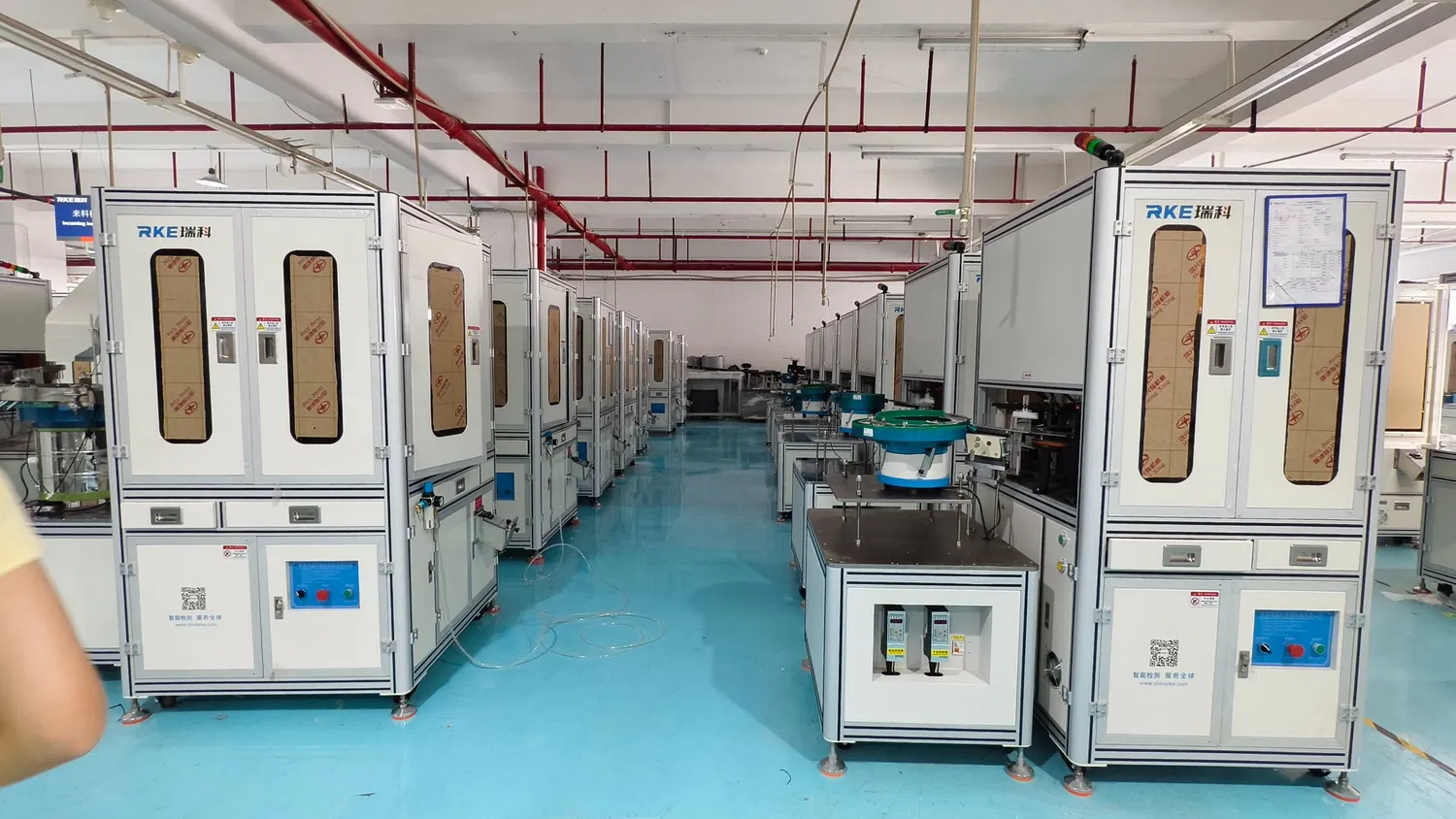

Product Images of Advanced Riveting Nut Screening Machine with Ai Inspection
-
Advanced Riveting Nut Screening Machine with Ai Inspection -
Advanced Riveting Nut Screening Machine with Ai Inspection -
Advanced Riveting Nut Screening Machine with Ai Inspection -
Advanced Riveting Nut Screening Machine with Ai Inspection -
Advanced Riveting Nut Screening Machine with Ai Inspection -
Advanced Riveting Nut Screening Machine with Ai Inspection
Find Similar Products
Product Description
The nut vision inspection machine uses vibrating plate feeding and is equipped with artificial intelligence visual inspection software and 2 CCD industrial cameras. This automatic vision machine is specifically designed to meet customer specifications and can detect whether critical dimensions, such as outer diameter, height, and other key measurements, align with drawing requirements. With a detection speed of 300 pcs/min and an accuracy of ±0.01 mm, this AOI inspection machine ensures high-speed, precise quality control, making it an essential part of efficient production processes. The vision inspection device provides real-time feedback, optimizing inspection workflows for increased productivity.
outer diameter, height, and other key dimensions
| Thank you for your trust in RKE Intelligent Technology Co., Ltd. We will provide you as following: | |
| Item | Specification |
Optical Sorting Machine RK-1500-C2 |
Inspection Component: Size / Appearance Defects Camera: HK-Vision Color CCD (200W) Light Source: RGB Cascade Multi-Angle LED Combination Lighting, High Brightness, 2M Pixel Telecentric Lens, 50*50mm Motor: Japan Panasonic Computer: Dell, 2.7GHz, DDR2 2.0GB, 500GB, 19" Wide Screen LCD Software: RKE Self-Developed (Based on LabVIEW) Solenoid Valve: American Newmandick Solenoid Valve Power: 220V/50Hz, 1000W Accuracy: ±0.01mm Detection Speed: 300 pcs/min Machine Size: 900 x 8600 x 1860 (2150) mm, Weight: 355 kg Vibrating Device Size: 650 x 800 x 1350 mm, Weight: 255 kg |
About the Supplier
This supplier has been audited by TÜV Rheinland. Verify the report on the official TÜV Rheinland website with ID "MIC-ASR2421233". Items marked "
" are certified.
){kind=link}
Company Profile
Dongguan RKE Intelligent Technology Co., Ltd. is a high-tech enterprise dedicated to independent research and development, production and sales, focusing on intelligent equipment such as vision systems, artificial intelligence, lasers, CCD industrial cameras, and industrial robots. So far, various types of mature image screening equipment, laser equipment, 360-degree appearance inspection, robot application, and intelligent unmanned workshop have been provided for customers with different needs.
Our sales network has begun to take shape, and has established offices in Kunshan, Ningbo, Wenzhou and Tianjin. In 2019, the RKE Research Institute was established in Songshan Lake High-tech Park. The equipment covers more than 20 provinces and cities nationwide and are sold to some countries and regions in Europe, America and Southeast Asia. At the same time, the company plans to develop agents in various countries and regions to accelerate the development of overseas markets.
The company has applied for a number of application patents, invention patents, and visual software patents. The company has also obtained the "China Famous Brand" key promotion unit certificate, and the 2013 China Fastener "Top Ten Brands of Equipment" title. The company's many technologies are in the forefront of the industry, such as fastener size detection accuracy of up to 0.01mm, speed up to 1200PCS / min, the detection accuracy can reach micrometer (μ M) with laser; At the same time, the company has developed various types of non-standard automation equipment, such as weighing, counting packaging machines, smart screen clearing machines, robot handling pallets and other equipment. Mechanical, electrical, optical Intelligent integration, so that the system equipment can run stably 24 hours a day, high performance, high precision to meet the growing requirements.
RKE have been focusing on optical inspection for decades. Through unremitting efforts, we have accumulated rich experience in this field. In practice, we have many successful cases and mature programs, established a scientific and standardized management system, and formed a continuous Innovative, enterprising and competitive team, become the "leader of optical sorting machine" in China! RKE stick to the mission of precision inspec and serving the world, and provides high-quality automation equipment and services to customers around the world at a steady pace.
About Our Factory & Business Background
-
Business Type
- Manufacturer/Factory
- Address
- NO.1 renju road ,liaobu Town, Dongguan, Guangdong, China
-
Plant Area
- 30000 square meters
-
Number of Employees
- 288
-
Registered Capital
- 20,000,000 RMB
-
Terms of Payment
- LC, T/T, D/P, PayPal, Western Union, Small-amount payment
-
International Commercial Terms(Incoterms)
- CIF, CFR, EXW
-
Average Lead Time
-
Peak Season Lead Time: within 15 workdays, one month
Off Season Lead Time: within 15 workdays, one month -
Nearest Port
- SHenzhen Port
-
Minimum Order Quantity
- 1
-
Supply Chain Partners
- 40
Our Production Capability & Technical Expertise
-
Main Products
- Optical Sorting Machine
-
Production Lines
- 6
-
Production Machines
- CNC machining center, Milling machine, Grinding machine, Lathe, Wire cutting machine
-
QA/QC inspectors
- 5 people
-
Inspection Type for Finished Products
- 100% inspection(Visual inspection & Function inspection)
-
Inspection Method for Finished Products
- Have instructions and uniformly followed
-
Customization Options
- Customization from Samples, Customization from Designs, Full Customization, Minor Customization, Flexible customization
-
ODM Service Available
- Yes
-
R&D Engineers
- 50 people
-
Traceability of Raw Materials
- Yes
-
Own Brand
- Yes
Our Industry Experience & Global Business Record
-
Year of Establishment
- 2010-06-17
-
Export Year
- 14 Years
- Main Markets
- North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
-
Repeat Buyers Choice
- 50%~80%
-
Number of Foreign Trading Staff
- 5
-
Overseas Agent/Branch
- No
-
New Products Launched in Last year
- No
Our Certifications, Standards & Industry Recognition
-
Product Certification
- CE
-
Cooperated with Fortune 500
- No
FAQ
- What is the detection speed?
- The AOI inspection machine operates at a speed of 300 pieces per minute.
- Can the machine be customized?
- Yes, customization is available for machine color, speed, and accuracy.
- What certifications does the product have?
- The product is certified with GS, CE, and ISO9001 standards.
- What is the warranty period?
- We provide a 1-year warranty and after-sales service for the machine.
- What components are inspected?
- It detects size and appearance defects for electronic components, auto parts, bolts, nuts, and screws.
- What is the power consumption?
- The machine operates on 220V/50Hz with a power consumption of 1000W.
- What software is used for inspection?
- It uses RKE self-developed software based on LabVIEW for intelligent visual inspection.
