Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory
Contact Supplier
Product Highlights

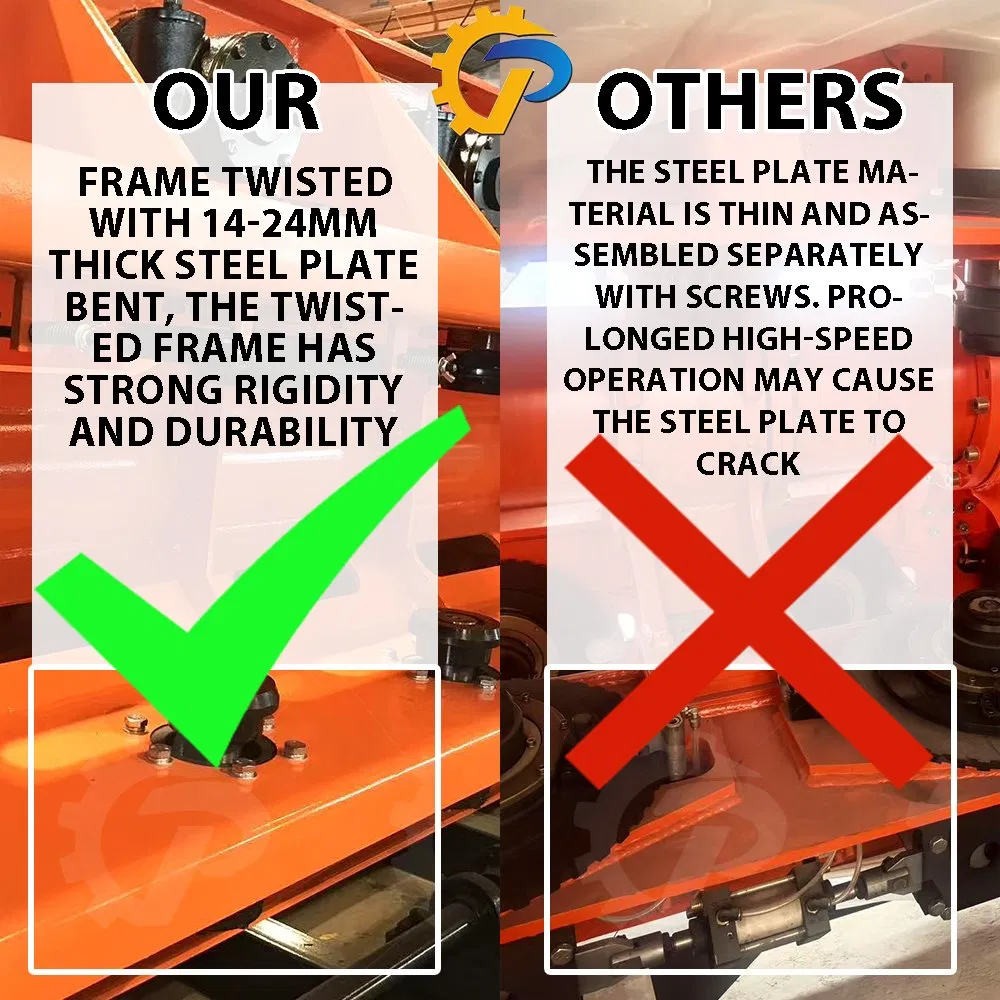

- The overall rigidity of the machine is strong: using a whole piece of steel plate for bending, the frame has strong integrity, can maintain long-term high-speed operation, high output, and low mainten
- Applicable Cable Types: building wire, network cables, low-voltage cables, medium-voltage cables, overhead cables, etc.
- Multiple certifications: CE, ISO90001
- Customizable: Design solutions based on the type of wire and cable you produce and the amount of investment required
- Leveraging the expertise of engineers with 30 years of experience, we customize production line layouts based on each client's specific facility dimensions and capacity requirements, thereby maximizin
- Our production equipment, core components, and spare parts are all researched, developed, and manufactured in-house at our own facilities, ensuring stable performance and ease of maintenance
- We employ our own dedicated automation system programmers to manage our fully automated production lines, featuring intelligent PLC control systems that enable real-time monitoring of production data
- Beyond simply selling machinery,we undertake the comprehensive design,construction,installation, and commissioning of entire production lines,including trial runs,delivering a complete,end to end turn
- Our professional installation team provides on-site commissioning and training, covering both operation and maintenance. Our after-sales support team remains on standby to respond at any time, ensurin
- The R&D team possesses an average of 30 years of experience in cable machinery, specializing in the design and implementation of low-voltage cable production lines.
Product Attributes
- Customization
- Available
- After-sales Service
- on Line
- Driven Type
- Electric
- Model NO.
- rigid stranding machine
- Condition
- New
- Certification
- ISO, CE, SGS
- Warranty
- 12 Months
- Automatic Grade
- Automatic
- Single Strand Diameter
- 1.2-5.0mm
- Maximum Stranding Diameter
- 50mm
- Stranding Pitch
- 67~1272mm
- Cage Speed
- 50~125r/Min
- Traction Speed
- 8.37~63.63m/Min
- Traction Wheel Diameter
- 2000mm
- Pay-off Bobbin in Cage
- Pn630
- Central Pay-off Bobbin
- Pn800~Pn1600
- Take-up Bobbin
- Pn1250~Pn2500
- Central Height
- 1000mm
- Motor
- Siemens
- Touch Screen
- Siemens
- PLC
- Siemens
- Transport Package
- Standard International Shipment Packing
- Trademark
- chipeng
- Origin
- China
- Package Size
- 10000.00cm * 10000.00cm * 10000.00cm
- Package Gross Weight
- 100000.000kg
- Lead Time
-
90 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.
Product Images of Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory
-
Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory -
Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory -
Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory -
Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory -
Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory -
Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory -
Automatic PLC Low Voltage Cable Manufacturing Machine Rigid Stranding Machine for Mexican Cable Factory
Find Similar Products
Product Description
Equipment advantages:
1. Experience unparalleled efficiency with our machine, featuring integral upper and lower bobbins with pneumatic clamping. This design ensures effortless operation, significantly reducing auxiliary working time while boosting production efficiency to new heights.
2. Our cutting-edge machine utilizes pneumatic tension control, equipped with an automatic tension adjustment mechanism. This innovation guarantees unwavering tension stability, regardless of whether the machine is at dishful or tray, ensuring consistently optimal results.
3. Featuring a robust ground axis linkage, our machine guarantees remarkable stability and precision in strand pitch. The enhanced rigidity of the bobbins cages allows them to rotate at high speeds, dramatically improving production efficiency and performance.
4. This state-of-the-art machine is equipped with a programmable controller and an intuitive touch screen for seamless operation. The touch screen allows for easy setting, modification, and display of process parameters, ensuring total control and flexibility.
1. Experience unparalleled efficiency with our machine, featuring integral upper and lower bobbins with pneumatic clamping. This design ensures effortless operation, significantly reducing auxiliary working time while boosting production efficiency to new heights.
2. Our cutting-edge machine utilizes pneumatic tension control, equipped with an automatic tension adjustment mechanism. This innovation guarantees unwavering tension stability, regardless of whether the machine is at dishful or tray, ensuring consistently optimal results.
3. Featuring a robust ground axis linkage, our machine guarantees remarkable stability and precision in strand pitch. The enhanced rigidity of the bobbins cages allows them to rotate at high speeds, dramatically improving production efficiency and performance.
4. This state-of-the-art machine is equipped with a programmable controller and an intuitive touch screen for seamless operation. The touch screen allows for easy setting, modification, and display of process parameters, ensuring total control and flexibility.
Specific:
1.Choose between a single motor or split motor for tailored operational needs.
2.Capable of twisting copper, aluminum, and ACSR conductors with precision and ease.
1.Choose between a single motor or split motor for tailored operational needs.
2.Capable of twisting copper, aluminum, and ACSR conductors with precision and ease.
3.Our advanced design with integral upper and lower bobbins, along with pneumatic clamping, streamlines operation, cuts down on auxiliary working time, and elevates production efficiency.
4. Featuring an automatic tension adjustment mechanism, this machine maintains tension stability effortlessly, whether dealing with full dishes or trays.
4. Featuring an automatic tension adjustment mechanism, this machine maintains tension stability effortlessly, whether dealing with full dishes or trays.
| This machine is used for stranding bare copper,aluminum and ACSR conductor with compacting use | |||
| Model Main Specification | JLK400 | JLK500 | JLK630 |
| Single Wire Diameter | 1.2mm-5mm | 1.2mm-5mm | 1.2mm-5mm |
| Max Stranded Diameter | 50mm | 50mm | 50mm |
| RPM | 88-200r/min | 78-189r/min | 65-143r/min |
| Stranding Pitch | 49-630mm | 49-816mm | 58-978mm |
| Line speed | 55.35m/min | 63.63m/min | 63.63m/min |
| Pay Off Drum Size In Cage | PN400mm | PN500mm | PN630mm |
| Central Pay Off Drum Diameter | PN800-1600mm | PN800-1600mm | PN800-1600mm |
| Take Up Drum Diameter | PN800-1600mm | PN1000-2000mm | PN1000-2000mm |
With a dedicated R&D team, a skilled production workforce, and a strong after-sales support team, we provide turnkey project solutions that include on-site installation, operator training, maintenance, and long-term service support. We are committed to
delivering reliable and efficient solutions that enhance our clients' productivity and product quality. Trust us to be your professional partner in cable manufacturing equipment.
delivering reliable and efficient solutions that enhance our clients' productivity and product quality. Trust us to be your professional partner in cable manufacturing equipment.
1.Q: Are you a manufacturer or a trading company?
A:We are a professional manufacturer with over 25 years of experience. We handle everything in-house from R&D and production to sales and after-sales service, ensuring we provide you with the highest quality, most cost-competitive equipment and direct technical support.
2.Q:What kind of services can be provided to me after purchasing the machine?
A: This is the core advantage of our company. We have a strong after-sales team, and our engineering team provides: -Online support: 24-hour remote guidance through video, phone, and other means to solve problems. -On site service: If on-site support is required, our engineers can arrange visas to visit your factory as soon as possible for installation, debugging, or maintenance -Training services: providing machine operation and simple maintenance training
A: This is the core advantage of our company. We have a strong after-sales team, and our engineering team provides: -Online support: 24-hour remote guidance through video, phone, and other means to solve problems. -On site service: If on-site support is required, our engineers can arrange visas to visit your factory as soon as possible for installation, debugging, or maintenance -Training services: providing machine operation and simple maintenance training
3.Q: Can I get customized equipment?
A: Certainly. With strong R&D capabilities, we can provide customized machines and production line solutions tailored to your specific requirements, such as cable specifications, production capacity goals, and automation levels.
4.Q:What machines can we buy from you?
A:Cable extrusion machine, cable twisting machine, wire drawing machine, and cable auxiliary equipment, etc
A:Cable extrusion machine, cable twisting machine, wire drawing machine, and cable auxiliary equipment, etc
5.Q:How can I get more detailed information/get a quote?
A:-Please send us your cable size and cable picture,Click here
-Determine the configuration parameters of the production line
-Determine the configuration parameters of the production line
About the Supplier
This supplier has been audited by BV. Verify the report on the official BV website with ID "MIC-ASR261918". Items marked "
" are certified.
){kind=link}
Company Profile
Founded in May 1997, Guangdong Chipeng Electrical Technology Co., Ltd is a leading manufacturer of cable making machinery, covering an area of 20, 000 m² in Nanhai District, Foshan, near Guangzhou. Main products include rigid stranding machine, cage stranding machine, tubular stranding machine, cable laying up machine, drum twisting machine, high speed bunching machine, cantilever single twisting machine, extruder, etc
We specialize in turnkey cable production solutions, providing complete project support from design to delivery. Our production facility is fully equipped for cutting, welding, assembly, splicing, and painting, with strict quality control at every stage to ensure that every machine meets high standards before moving to the next step.
Our R&D team, with over 30 years of experience in cable machinery, develops reliable and efficient solutions tailored to our clients' needs. We also provide a dedicated installation team and comprehensive training for machine operation, ensuring smooth start-up and optimal performance.
With a strong focus on innovation, quality, and customer service, we have successfully delivered projects across Africa, the Middle East, Asia, and South America. At Chipeng, we aim to build long-term partnerships and create win-win solutions with our clients.
About Our Factory & Business Background
- Address
- Room 1104, No. 75 Lingnan Road, Dali Town, Nanhai District, Foshan, Guangdong, China
- Average Lead Time
-
Peak Season Lead Time: 1-3 months
Off Season Lead Time: 1-3 months - Nearest Port
- Foshan Port, Guangzhou Port, Shenzhen Port
Our Production Capability & Technical Expertise
Our Industry Experience & Global Business Record
- Main Markets
- South America, Eastern Europe, Southeast Asia, Africa, Mid East
FAQ
- Are you a manufacturer or a trader?
- We are a manufacturer of wire and cable machinery with 30 years of experience
- What are your main products?
- We primarily manufacture stranding machines, laying up machines, extruders, wire drawing machines
- Can you undertake turnkey projects?
- Absolutely. We can assist you in completing turnkey projects for various products, including residential wiring, low-voltage cables, and network cables. We have successfully executed such projects across Asia, Africa, and the Middle East.
- What services do you offer?
- 1.Pre-sales: Our professional staff will select the appropriate machinery based on your specific cable production requirements and design a factory layout plan for you. 2.During Production: We will periodically send videos and photos to keep you updated on the progress of your order. 3.Pre-shipment: We can provide videos of the machine testing process or arrange for on-site machine testing. 4.After-sales: We have a dedicated installation team that provides on-site installation services to minimi
- How do you ensure quality?
- 1.We handle the entire manufacturing process in house-from purchasing raw steel plates to cutting, welding, and assembly. Every component used in our machines is designed and manufactured within our own facility, ensuring a perfect fit and optimal compatibility with the equipment. 2.Each stage of production is overseen by a dedicated department, and no machine is released for shipment until it has passed rigorous quality control (QC) inspections.
- Do you provide on-site installation services by engineers?
- Yes. We also provide training for machine operation and maintenance. Furthermore, our machines are equipped with remote control capabilities.
