Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine
Contact Supplier
Product Highlights
- Customizable Outer Shell: Outer shell can be customized in different colors to meet specific aesthetic requirements.
- High Precision Machining: Forging tolerance of +/-0.1mm ensures high precision in semi-tubular rivet production.
- High Efficiency Production: Capacity reaches 90-100 pieces per minute with high speed and automatic operation.
- Comprehensive Warranty: 1-year warranty coverage for mechanical quality problems with free parts and labor.
- CE and ISO Certified: Product certified with CE and ISO9001 standards ensuring safety and quality compliance.
- Versatile Machine Options: Available in semi-enclosed and fully enclosed configurations for different needs.
- Low Cost Operation: Designed for low cost and easy operation while maintaining high productivity.
- Advanced Material System: Features latest material hooking system for efficient semi-tubular rivet manufacturing.
Product Attributes
- Customization
- Available
- Processing Object
- Metal
- Molding Style
- Cold Forging
- Model NO.
- DW4-40
- Molding Technics
- Mold Forging
- Application
- Machinery Parts
- Machining
- CNC Machining
- Material
- Steel
- Surface Treatment
- Zinc Plating
- Forging Tolerance
- +/-0.1mm
- Certification
- CE, ISO 9001:2008
- Max.Blank Diamenter
- 5.0mm
- Max.Blank Length
- 40mm
- Main Motor Power
- 1.5kw
- Weight
- 1100kg
- Capacity
- 90-100PCS/Min
- Main Die
- 32 X 58mm
- The Initial Punch Die
- 25 X 65mm
- The Precise Punch Die
- 25 X 65mm
- Cut-off Die
- 15 X 30mm
- Cutter Size
- 9 X 32 X 70mm
- Transport Package
- Wooden Box
- Specification
- 2.1 x 1.02 x 1.06m
- Trademark
- Tengfeng
- Origin
- Hubei, China
- HS Code
- 8462109000
- Production Capacity
- 20sets
- Package Size
- 210.00cm * 102.00cm * 106.00cm
- Package Gross Weight
- 1100.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

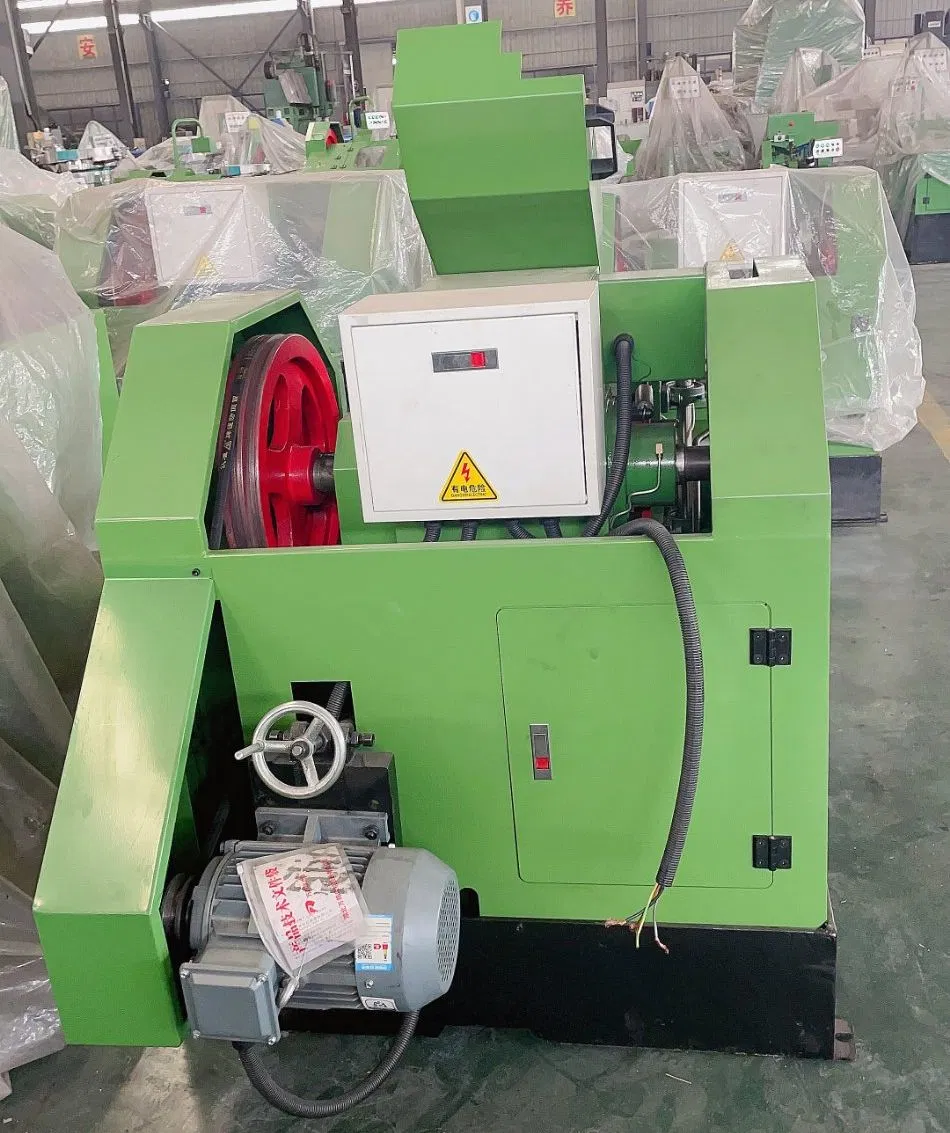

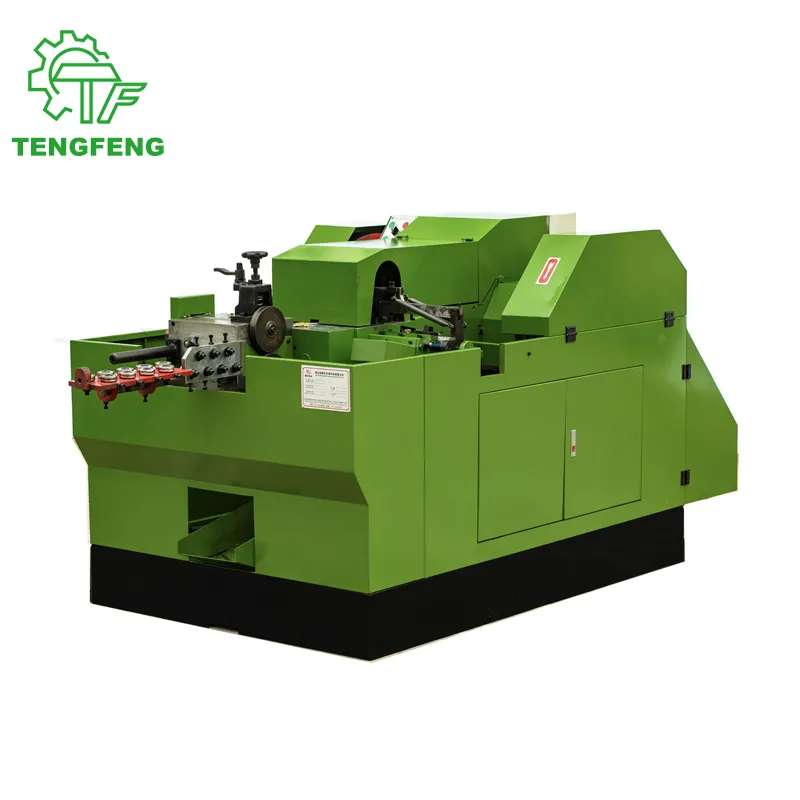

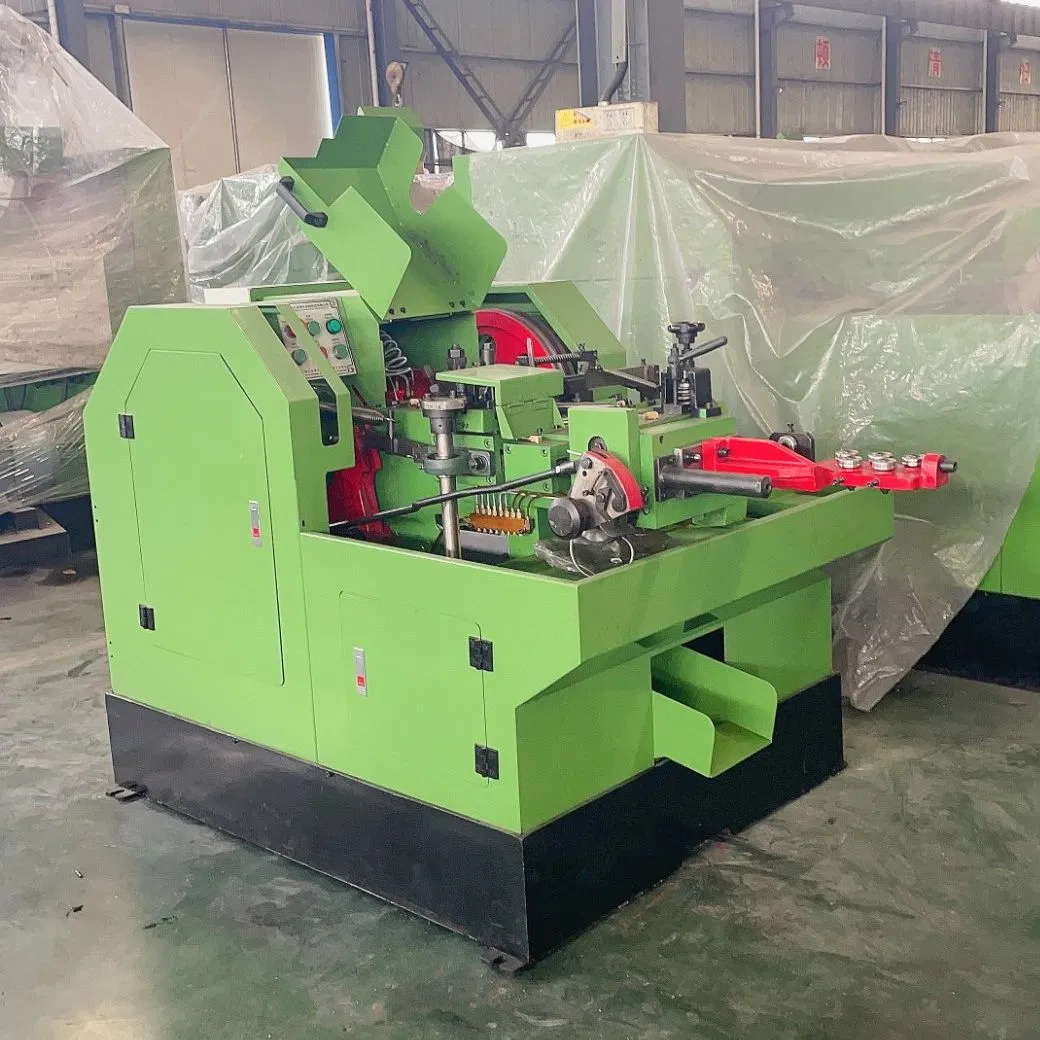

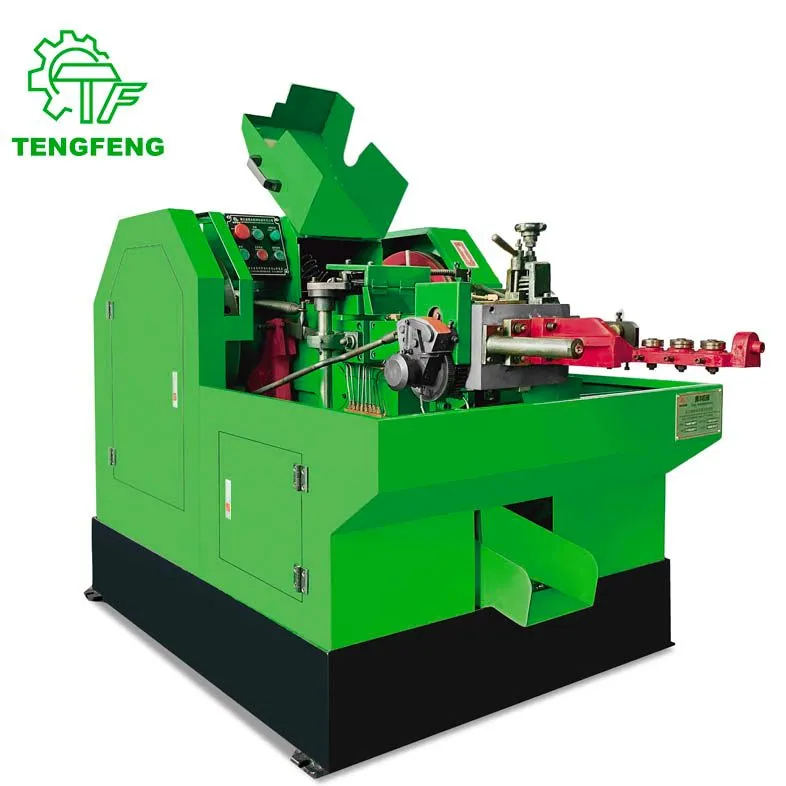

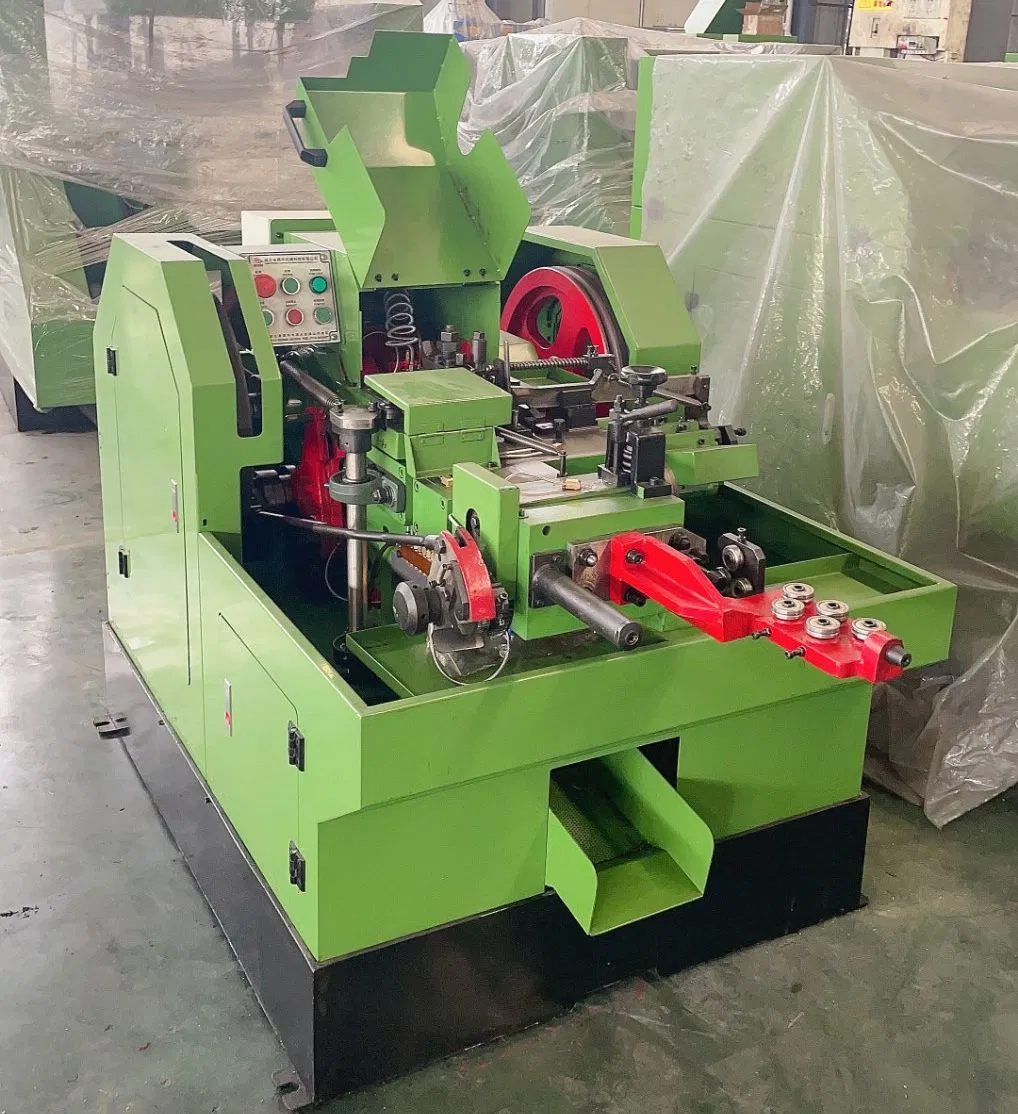

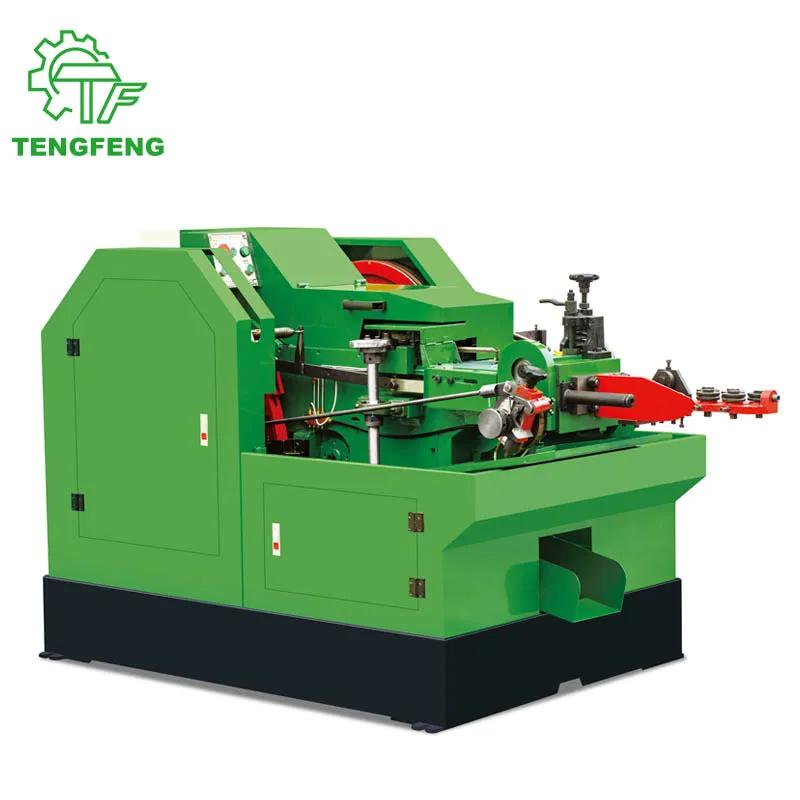

Product Images of Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine
-
Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine -
Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine -
Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine -
Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine -
Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine -
Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine -
Automatic Pop Rivet Making Machine Taiwan Rivet Cold Heading Machine
Find Similar Products
Product Description
Model: DW4-40
Item: semi-tubular rivet making machine
Mechanical introduction:
* This cold heading machine specializes in the production of semi-tubular rivet with latest material hooking system.
* Two options: semi-enclosed and fully enclosed
* Outer sell can be customized in different colors.
Advantages:
-- high speed
-- high precision
-- easy operation
-- low cost
-- high efficiency
Item: semi-tubular rivet making machine
Mechanical introduction:
* This cold heading machine specializes in the production of semi-tubular rivet with latest material hooking system.
* Two options: semi-enclosed and fully enclosed
* Outer sell can be customized in different colors.
Advantages:
-- high speed
-- high precision
-- easy operation
-- low cost
-- high efficiency
| Model | DW4-40 |
| Max Blank Diameter /mm | 5.0 |
| Max Blank Length /mm | 40 |
| Max Cut-off length/mm | 48 |
| Stroke/mm | 68 |
| Capacity - pcs /min | 90-100 |
| Main Die Diameter /mm | ø32 x 58 |
| The initial punch die/mm | ø25 x 65 |
| The precise punch die/mm | ø25 x 65 |
| Cut-off die/mm | ø15 x 30 |
| Cutter size/mm | 9 x 32 x 70 |
| Main Motor Power / KW | 1.5 KW |
| Volume (L*W*H) / m | 2.1 x 1.02 x 1.06 |
| Weight / KG | 1000 |
| Molding style | cold forging |
| Machining | CNC machining |
| Features | High productivity, high speed, automatic |
| Warranty | 1 year |
| Place of Origin | Hubei, China |
| Certification | CE, ISO9001 |
Hubei Tengfeng Machinery Technology Co., Ltd. is a well-known enterprise integrating scientific research, manufacturing and sales of fastener machinery and equipment.
We own over 70000 square metres of production base and more than 300 professional & technical talents.
We own over 70000 square metres of production base and more than 300 professional & technical talents.
We have hundreds of advanced large and medium-sized processing equipment of both domestic and international brnads, including CNC digital lathes, CNC machine tools, large-scale precision machining Gantry milling, laser cutting machine, automatic bending machine and other equipment.
Advanced technology and high-precision processing equipment are applied during the production processes. Meanwhile, we have strict quality inspection management system to guarantee the production quality of standard and non-standard fastener forming equipment.
Advanced technology and high-precision processing equipment are applied during the production processes. Meanwhile, we have strict quality inspection management system to guarantee the production quality of standard and non-standard fastener forming equipment.
Our product line includes: 1D2B cold heading machine, 2/3/4/6 satiation cold former, nut former, semi-tubular rivet machine, blind rivet machine, open and close mold header, threading machine series(vibrator feeder type, hopper type, vertical, automatic cutting) , self-drilling screw machine, washer assembly machinery series, and other standard and non-standard fastener machinery.
Workshop Tour
Hubei Tengfeng Machinery Technology Co., Ltd. is a well-known enterprise integrating scientific research, manufacturing, sales of fastener machinery and equipment. Our company have:
1.Company area & staff member: Over 70000 square meters of production base and more than 300 professional & technical talents.
2.Rich experience:
More than 20 years of professional production
3.Broad market:
Our products have been sold to more than 30 countries including Russia, India Turkey, Egypt, Azerbaijan, Turkmenistan, Kazakhstan, Uzbekistan, Pakistan, South Africa, Ethiopia, Argentina, Peru, Colombia, Iran, etc.. won the favor and praise of customers at home and abroad.
4.Products of a great variety:
Including cold heading machine, screwing machine, open and close die cold heading machine, nut forming machine, parts forming machine and other mechanical equipment experience
5.Certificate:
CE/ SGS /ISO9001/patent
2023 Shanghai Exhibition 2023 Shanghai Exhibition 2019 Fastener Fair / India Mumbai
1.Why choose us?
We manufacture high quality products and sell at competitive price. Our sale network has spread over 30 countries including Russia, Uzbekistan, Turkmenistan, Kazakhstan, Azerbaijan, Turkey, India, Pakistan, Egypt, South Africa, Columbia, Argentina, Peru, Brazil, etc...Our products and service have enjoyed world-wide appraise.
We manufacture high quality products and sell at competitive price. Our sale network has spread over 30 countries including Russia, Uzbekistan, Turkmenistan, Kazakhstan, Azerbaijan, Turkey, India, Pakistan, Egypt, South Africa, Columbia, Argentina, Peru, Brazil, etc...Our products and service have enjoyed world-wide appraise.
2. What can you buy from us?
Our product line includes: 1D2B cold heading machine, 2/3/4/6 satiation cold former, nut former, semi-tubular rivet machine, blind rivet machine, open and close mold header, threading machine series(vibrator feeder type, hopper type, vertical, automatic cutting) , self-drilling screw machine, washer assembly machinery series, and other standard and non-standard fastener machinery.
3. What is your MOQ?
1 set of any machinery.
4. What is your delivery time?
It depends on your order quantity. Normally it's 15-30 working days.
5. How can we guarantee quality?
There are always enough adjustment of machinery first, then qualified samples of finished products will be sent to customer to confer before delivery.
6. If there are any problems of the machinery, what should I do?
The guarantee time is 1 year if it's the quality problem of the machinery. If the problem is caused by improper operation, we will provide free online assistance service, also we can send you some parts for replacement, which the cost will be at your expense.
About the Supplier
This supplier has been audited by SGS. Verify the report on the official SGS website with ID "QIP-ASR259021". Items marked "
" are certified.
){kind=link}
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Hubei Tengfeng Machinery Technology Co., Ltd. is a well-known enterprise integrating scientific research, manufacturing and sales of fastener machinery and equipment.
1. Company area and staff member
70000 square metre manufacturing base and 300 technical personnel
2. Rich experience
More than 20 years of professional production
3. Broad market
We sold to more than 30 countries around the world, won the favor and praise of customers at home and abroad. Our sales network has spread over 30 countries including Russia, India Turkey, Egypt, Azerbaijan, Turkmenistan, Kazakhstan, Uzbekistan, Pakistan, South Africa, Ethiopia, Argentina, Peru, Colombia, Iran, etc...Our products and service have enjoyed world-wide appraise.
4. Products of a great variety
Including 1D2B cold heading machine, 2/3/4/6 satiation cold former, nut former, semi-tubular rivet machine, blind rivet machine, open and close mold header, threading machine series(vibrator feeder type, hopper type, vertical, automatic cutting), self-drilling screw machine, washer assembly machinery series, and other standard and non-standard fastener machinery.
5. Certificate
CE/ SGS /ISO9001/patent
About Our Factory & Business Background
-
Business Type
- Manufacturer/Factory & Trading Company
- Address
- 118 Dingma Road, Hongshan Ind. Zone, Economic Development Zone, Huanggang, Hubei, China
-
Plant Area
- 31816 square meters
-
Number of Employees
- 260
-
Terms of Payment
- LC, T/T, Western Union, PayPal, Small-amount payment
-
International Commercial Terms(Incoterms)
- CIF, EXW, CFR
-
Average Lead Time
-
Peak Season Lead Time: one month
Off Season Lead Time: one month -
Nearest Port
- Shanghai Port
-
Minimum Order Quantity
- 1 Set
-
Supply Chain Partners
- 200
Our Production Capability & Technical Expertise
-
Main Products
- Cold Heading Machine
-
Production Lines
- 6
-
Production Machines
- CNC Lathe, Drilling Machine, Laser Cutting Machine, Grinding Machine, Milling Machine, CNC Lathe, Boring Machine, Bending Machine, Spray Room, Nitrogen Dioxide Welding Machine, Dry Room, CNC Machining Center
-
QA/QC inspectors
- 8 people
-
Inspection Type for Finished Products
- 100% inspection(Function inspection & Visual inspection)
-
Inspection Method for Finished Products
- Have instructions and uniformly followed
-
Customization Options
- Customization from Designs, Customization from Samples, Full Customization, Minor Customization
-
ODM Service Available
- Yes
-
R&D Engineers
- 8 people
-
Traceability of Raw Materials
- Yes
-
Own Brand
- Yes
Our Industry Experience & Global Business Record
-
Year of Establishment
- 2014-08-12
-
Export Year
- 10 Years
-
Main Markets
- South America, Europe, Southeast Asia/ Mideast, Africa, East Asia(Japan/ South Korea), Australia
-
Repeat Buyers Choice
- 50%~80%
-
Number of Foreign Trading Staff
- 5
-
Overseas Agent/Branch
- No
-
New Products Launched in Last year
- Yes
Our Certifications, Standards & Industry Recognition
-
Management System Certification
- ISO9001:2015, ISO45001:2018, ISO14001
-
Product Certification
- CE
-
Cooperated with Fortune 500
- No
FAQ
- Why choose us?
- We manufacture high quality products and sell at competitive price. Our sale network has spread over 30 countries including Russia, Uzbekistan, Turkmenistan, Kazakhstan, Azerbaijan, Turkey, India, Pakistan, Egypt, South Africa, Columbia, Argentina, Peru, Brazil, etc...Our products and service have enjoyed world-wide appraise.
- What can you buy from us?
- Our product line includes: 1D2B cold heading machine, 2/3/4/6 satiation cold former, nut former, semi-tubular rivet machine, blind rivet machine, open and close mold header, threading machine series(vibrator feeder type, hopper type, vertical, automatic cutting) , self-drilling screw machine, washer assembly machinery series, and other standard and non-standard fastener machinery.
- What is your MOQ?
- 1 set of any machinery.
- What is your delivery time?
- It depends on your order quantity. Normally it's 15-30 working days.
- How can we guarantee quality?
- There are always enough adjustment of machinery first, then qualified samples of finished products will be sent to customer to confer before delivery.
- If there are any problems of the machinery, what should I do?
- The guarantee time is 1 year if it's the quality problem of the machinery. If the problem is caused by improper operation, we will provide free online assistance service, also we can send you some parts for replacement, which the cost will be at your expense.
