CNC Agricultural Spring Making Machine with Wire Rotation
Contact Supplier
Product Highlights
- Customized Axis Configuration: Standard 12 axes, customizable up to 16 axes for specific needs.
- Wide Wire Diameter Range: Capable of processing wire diameters from 0.4mm to 2.8mm.
- High Precision Control: Min wire feeding value of 0.01mm with CNC servo-motion system.
- Flexible Customization: Supports full customization, minor customization, and design-based options.
- Versatile Spring Production: Suitable for bending, coiling, pitching, forming, and cutting various springs.
- Professional Manufacturer: Over 20 years experience in Camless CNC Spring Machine industry.
- Comprehensive Warranty: Provides 1-year warranty with after-sale service support.
- Low Minimum Order Quantity: Accepts orders starting from just 1 piece.
Product Attributes
- Customization
- Available
- After-sales Service
- After Sale Service
- Control Type
- CNC
- Model NO.
- ST28-12R
- Axis Count
- Customized
- Warranty
- 1 Year
- Wire Diameter Range
- 0.5-8mm
- Model
- St28-12r
- Axis
- 12 or Customized
- Advantage
- Customized Design
- Transport Package
- Wooden Case
- Specification
- 1500*1250*1800MM
- Trademark
- Might
- Origin
- China
- HS Code
- 84633000
- Production Capacity
- 200
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

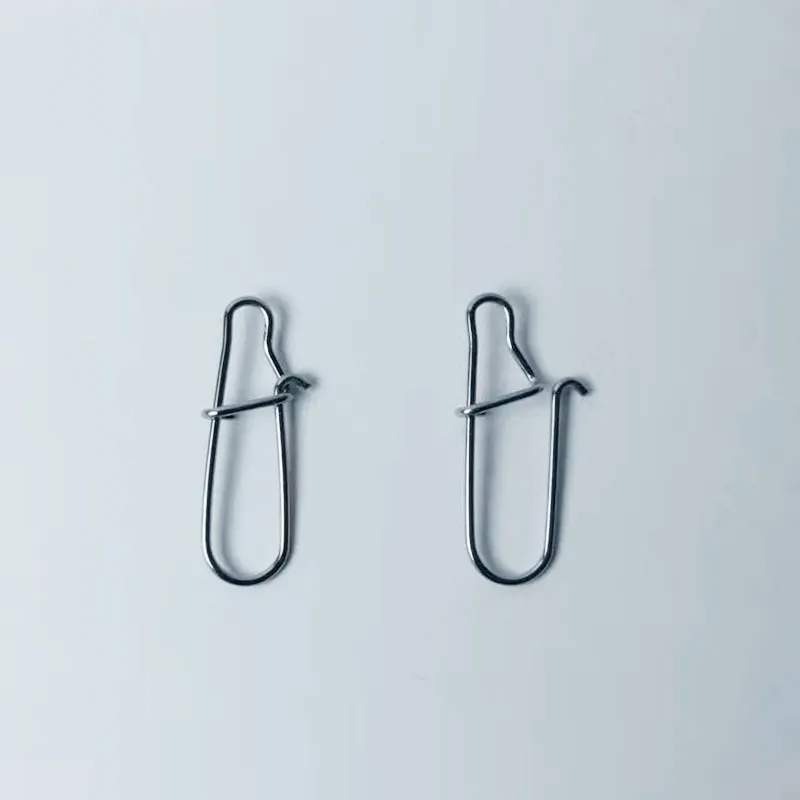

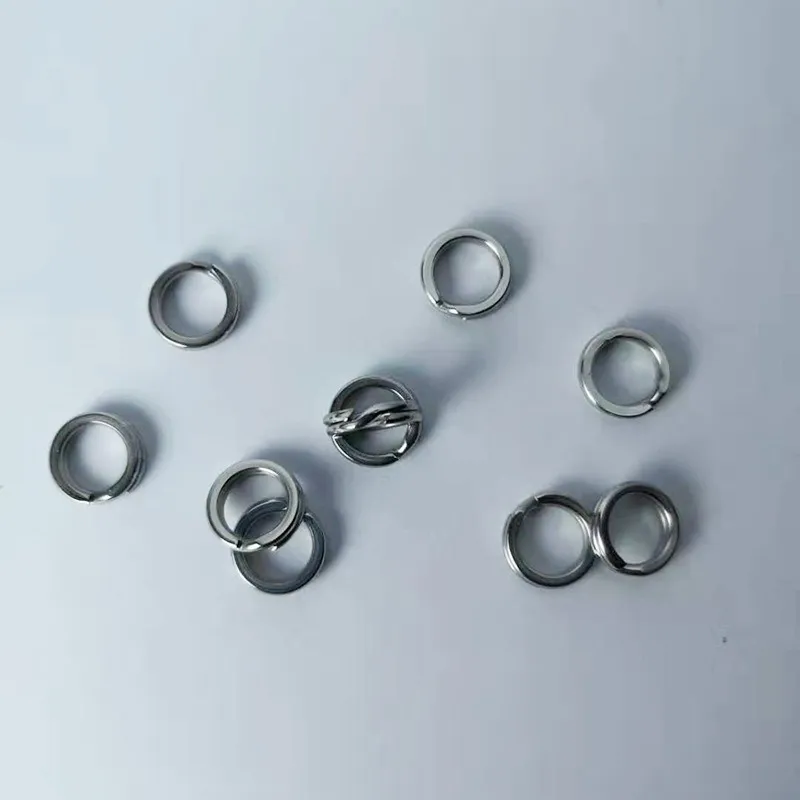

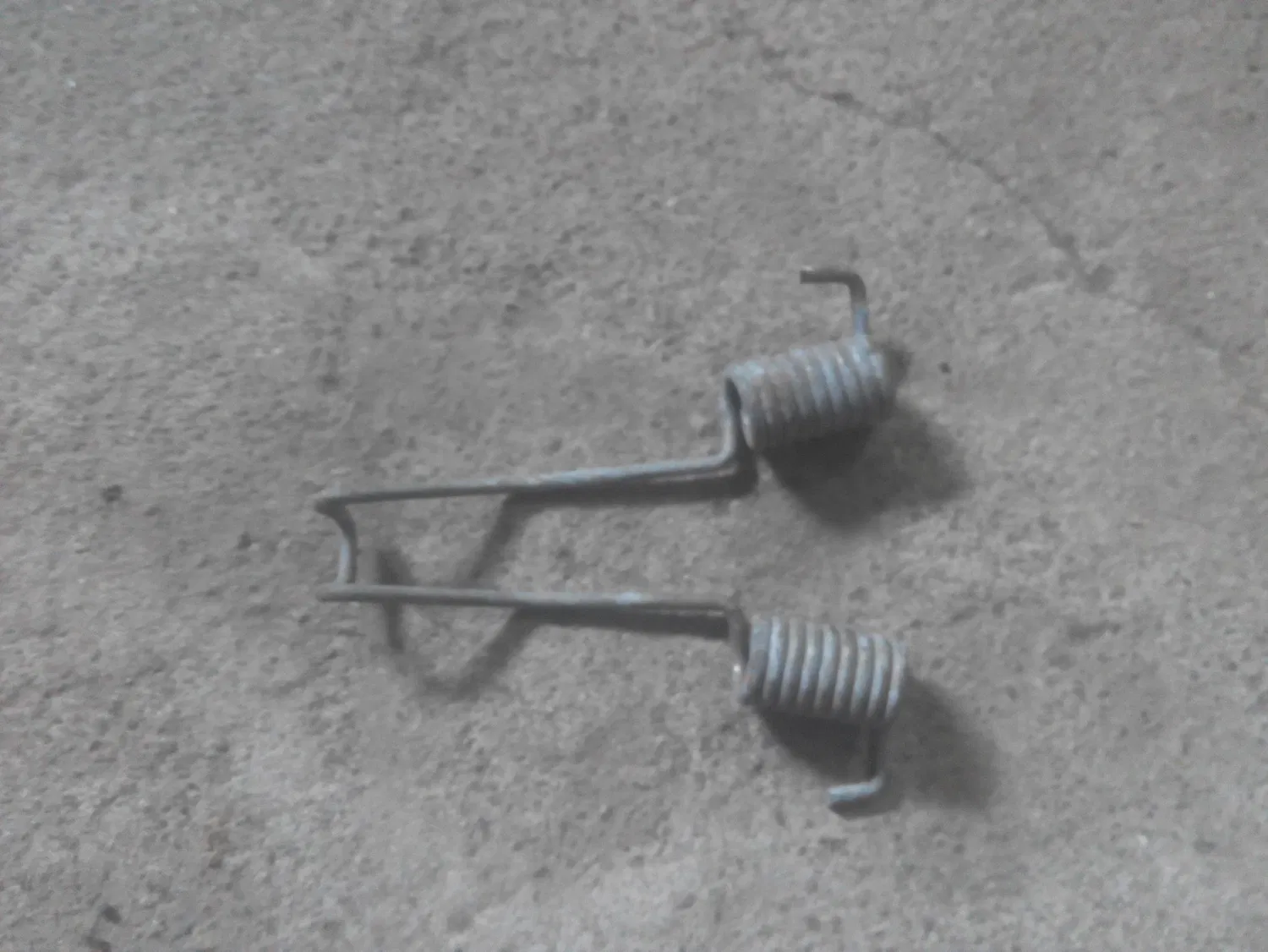

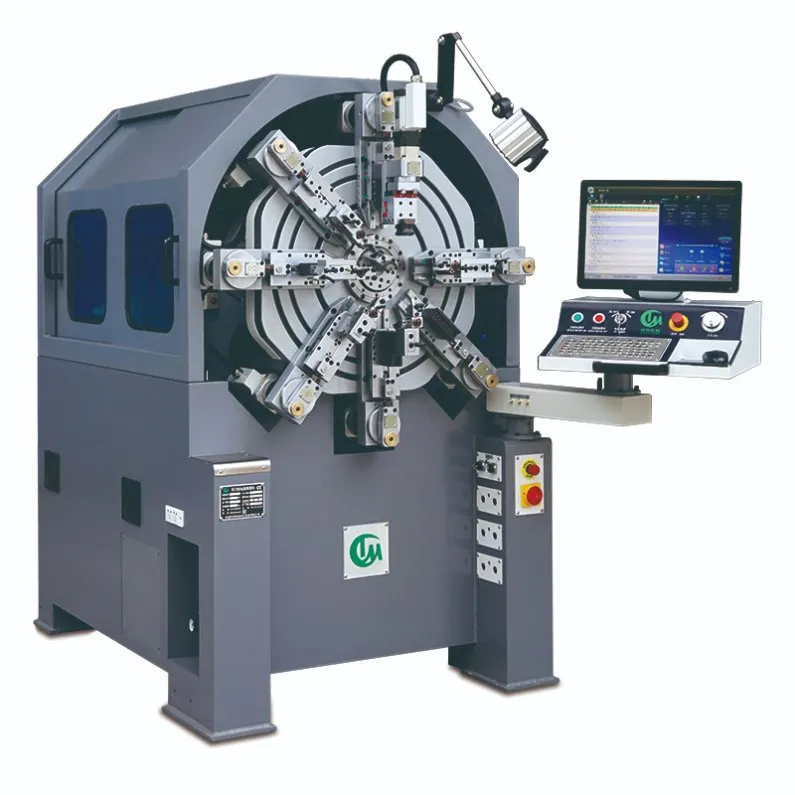

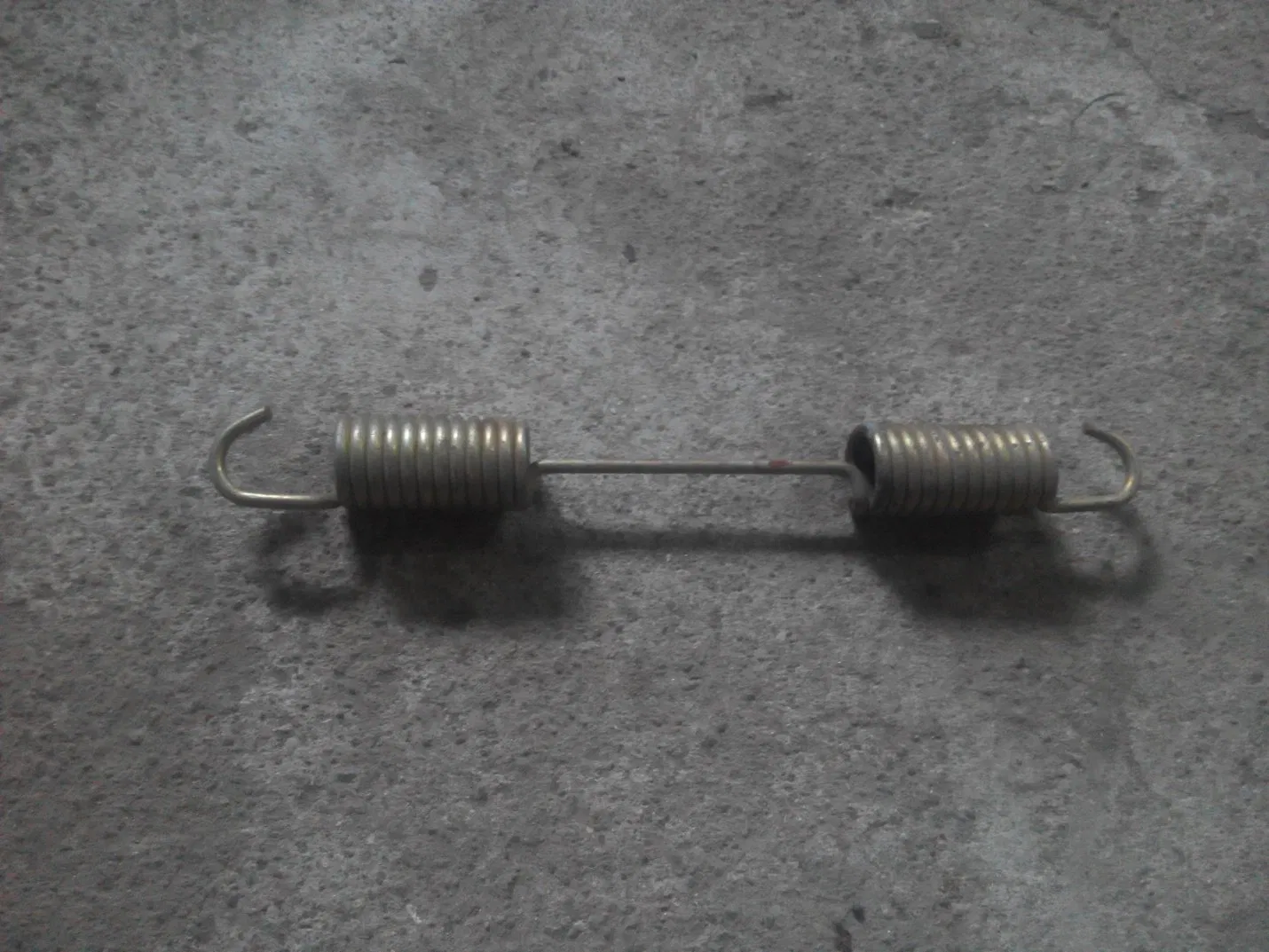

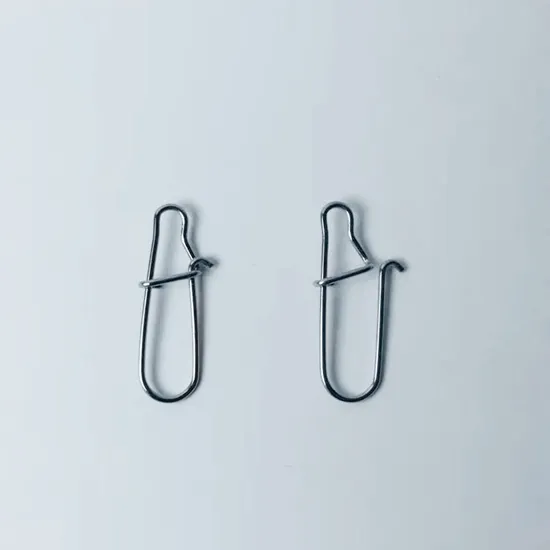

Product Images of CNC Agricultural Spring Making Machine with Wire Rotation
-
CNC Agricultural Spring Making Machine with Wire Rotation -
CNC Agricultural Spring Making Machine with Wire Rotation -
CNC Agricultural Spring Making Machine with Wire Rotation -
CNC Agricultural Spring Making Machine with Wire Rotation -
CNC Agricultural Spring Making Machine with Wire Rotation -
CNC Agricultural Spring Making Machine with Wire Rotation -
CNC Agricultural Spring Making Machine with Wire Rotation
Find Similar Products
Product Description
Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry.
Company Profile:
Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm.
Product Specification:
1. Camless spring forming machine ST28-12R combines precision CNC controlled servo-motion system and conveniences of mechanization.
2. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
3. It is equipped with seven slights ,one free arm ,wire feeding ,quotation rotation.
4. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting.
5. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
6. It can make various kinds of spring from wire diameter 0.4mm to 2.8mm.
| Model | ST28-12R |
| Min Wire Feeding Value | 0.01MM |
| Axes Number | 12 (can be added to 16) |
| Max wire Feeding Value | 10000.00MM |
| Wire size range | 0.4-2.8mm |
| Max Wire Feeding Speed | 120M/Min |
| Max. Feeding length | unlimited |
| Total output power of servo motors | 12.6KW |
| Input Power Supply | 380V/50HZ/3PH |
| Control System | self developed system |
| Probe No. | 3 |
| Net Length | 1500MM |
| Net Width | 1250MM |
| Net Height | 1800MM |
| Net Weight | 1500KGS |
About the Supplier
This supplier has been audited by SGS. Verify the report on the official SGS website with ID "QIP-ASR252473". Items marked "
" are certified.
){kind=link}
Company Profile
Might & Joint Spring Machine Company, founded in 2012, is a global professional manufacturer of CNC spring machinery equipment and supplementary products. It cooperates with foreign experts and domestic higher academies in the long term and integrates the test, scientific research and development of spring machinery in a whole. Besides, it has become one of the largest key production bases for computer spring machinery in China.
The main products are CNC Spring Coiling Machines, Automatic Spring Coiling Machines, Spring Twisting Machines, Spring Grinding Machines, Backfire Furnaces and Straighteners, including more than thirty varieties.
Our advantages:
1. A complete production line from design, moulding, finishing operations, tools, checking, testing, debug and packing.
2. A complete set of products to process the springs from 0.15mm to 20mm as well as supplementary products.
3. A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily.
4. Quality first, QA/QC is one of the most important departments in our company.
5. Over 100 skilled worker, 20 technicians and one group of 10engineers.
6. Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK, etc.
7. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
8. Most of device imported from Taiwan, Japan comply with FDA certification.
Our quality principle is "quality first, customer paramount"!
Science and technology create the future, ′ Might & Joint ′ Will be always with you!
About Our Factory & Business Background
-
Business Type
- Manufacturer/Factory & Trading Company
- Address
- No. 69, Shangnan Road, Shangjiao Dongguan
-
Plant Area
- 1700 square meters
-
Number of Employees
- 45
-
Registered Capital
- 12,000,000 RMB
-
Terms of Payment
- LC, T/T, D/P, PayPal, Western Union, Small-amount payment
-
International Commercial Terms(Incoterms)
- CIF, CFR, EXW
-
Average Lead Time
-
Peak Season Lead Time: within 15 workdays
Off Season Lead Time: within 15 workdays -
Nearest Port
- Shenzhen port
-
Minimum Order Quantity
- 1 PC
-
Supply Chain Partners
- 20
Our Production Capability & Technical Expertise
-
Main Products
- Spring Machine, Spring Coiling Machine, Spring Forming Machine, Spring Bending Machine, Straightening Machine, Camless Machine, Wire Bending Machine, 3D Wire Bending Machine
-
Production Lines
- 1
-
Production Machines
- Milling Machine, Polishing Machine, Grinding Machine, Cutting Machine
-
QA/QC inspectors
- 2 people
-
Inspection Type for Finished Products
- 100% inspection(Visual inspection & Function inspection)
-
Inspection Method for Finished Products
- Have instructions and uniformly followed
-
Customization Options
- Customization from Samples, Customization from Designs, Full Customization, Minor Customization, Flexible customization
-
ODM Service Available
- Yes
-
OEM Service Available
- Yes
-
R&D Engineers
- 3 people
-
Traceability of Raw Materials
- Yes
Our Industry Experience & Global Business Record
-
Year of Establishment
- 2013-08-27
-
Export Year
- 12 Yesrs
-
Main Markets
- Domestic
-
Repeat Buyers Choice
- 30%~50%
-
Number of Foreign Trading Staff
- 2
-
Overseas Agent/Branch
- No
-
New Products Launched in Last year
- Yes
Our Certifications, Standards & Industry Recognition
-
Cooperated with Fortune 500
- No
FAQ
- What is the wire diameter range for this machine?
- The machine can process wire diameters ranging from 0.4mm to 2.8mm.
- Can the number of axes be customized?
- Yes, the standard model has 12 axes, but it can be customized up to 16 axes.
- What types of customization are available?
- We offer full customization, minor customization, customization from samples, and customization from designs.
- What is the minimum order quantity?
- The minimum order quantity is 1 piece.
- What is the warranty period and after-sales service?
- We provide a 1-year warranty and offer after-sale service support.
- What is the lead time for production?
- The average lead time is within 15 workdays for both peak and off seasons.
- Is OEM or ODM service available?
- Yes, both OEM and ODM services are available for this machine.
