CNC Extension Spring Wire Forming Machine
Contact Supplier
Still deciding? Get samples of $ !
Request Sample
Product Highlights
- 24-Hour Technical Solution: Solutions provided for technical problems within 24 hours of contact.
- 20 Years Industry Experience: Over two decades of experience serving domestic and foreign industrial customers.
- CNC Control System: Equipped with CNC control and Pentium industrial computer for precision.
- High Speed Wire Feeding: Maximum wire feed speed reaches 120 meters per minute.
- Large Program Storage: Supports storage of 2000 or more programs for diverse production needs.
- Servo Motor Control: Ten sets of servo motors control eight stations independently for high accuracy.
- Customizable Color: Machine color can be customized according to customer needs.
- Full Customization Options: Offers full customization, minor customization, and flexible customization from samples or designs.
Product Attributes
- After-sales Service
- Provide Solutions Within 24 Hours
- Control Type
- CNC
- Axis Count
- 12 Aixs
- Model NO.
- Ronen-23-10
- Warranty
- 1 Year
- Wire. Dlameter
- Wire. Dlameter
- Max.Wire Food
- 10000.00mm
- Min.Wire Food
- 0.01mm
- Max.Wire Food Speed
- 120m/Min
- Maximum Wire Length
- Indefinite Length
- Axis Number
- 10 Axis
- Power
- 9.8kw
- The Input Voltage
- 380V
- Software
- Pentium Industrial Computer
- Program Storage
- ≥2000
- Air Pressure
- 5-6kg/Cm
- Probe
- 3 PCS
- Machine Size
- 1200mm*1250mm *1760mm
- Machine Weight
- 980kg
- Colour
- According to Customer Needs
- Transport Package
- Seaworthpacking
- Specification
- Metal
- Trademark
- RONEN
- Origin
- Hebei, China
- HS Code
- 8463300000
- Production Capacity
- 10 Set/Sets Per Month
- Package Size
- 120.00cm * 125.00cm * 176.00cm
- Package Gross Weight
- 980.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.
Product Images of CNC Extension Spring Wire Forming Machine
-

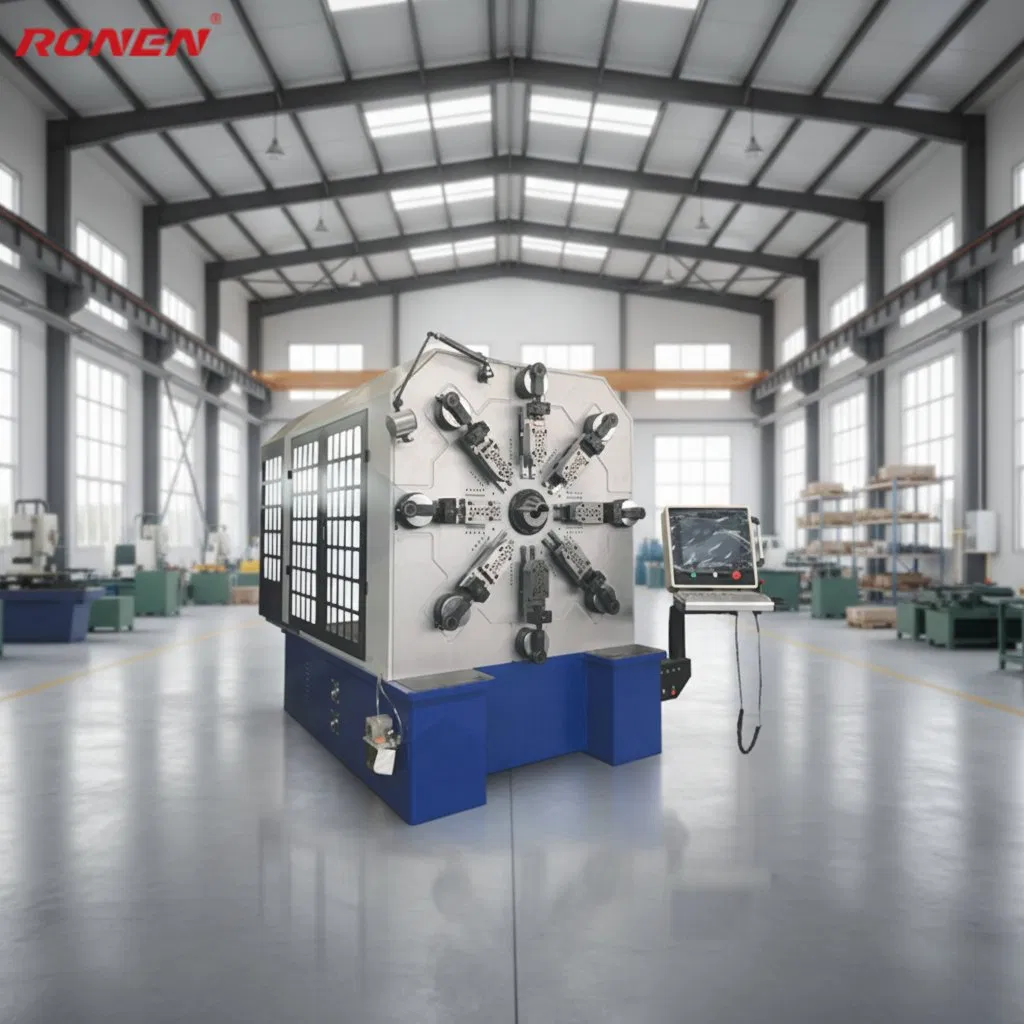

CNC Extension Spring Wire Forming Machine -

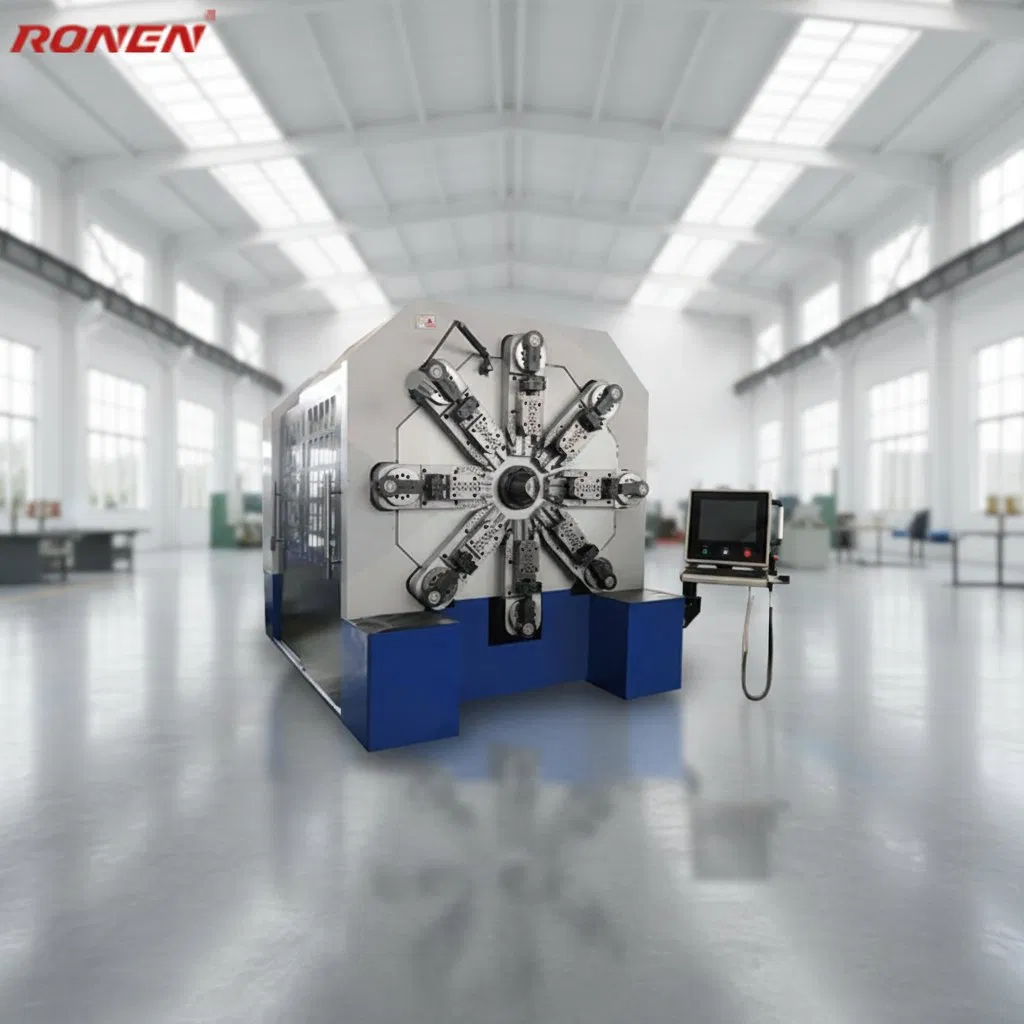

CNC Extension Spring Wire Forming Machine -

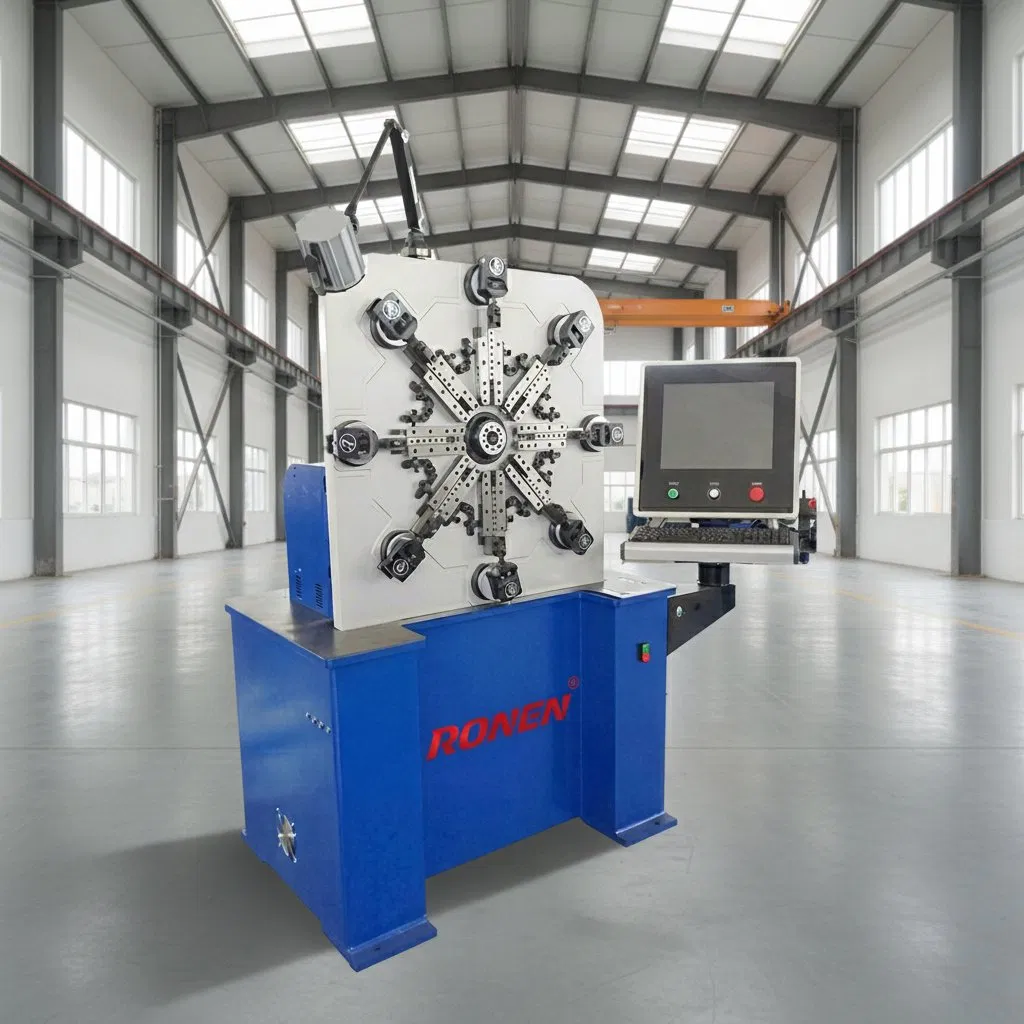

CNC Extension Spring Wire Forming Machine -

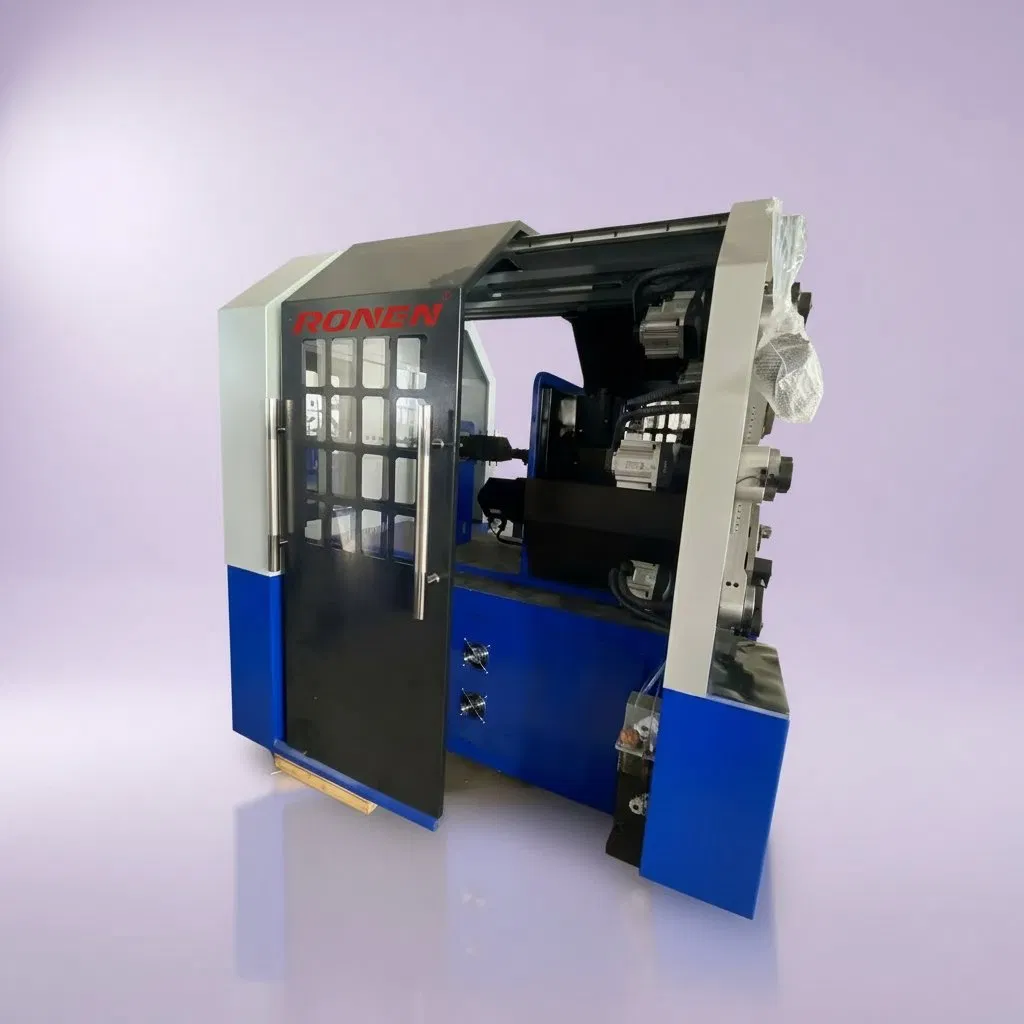

CNC Extension Spring Wire Forming Machine -

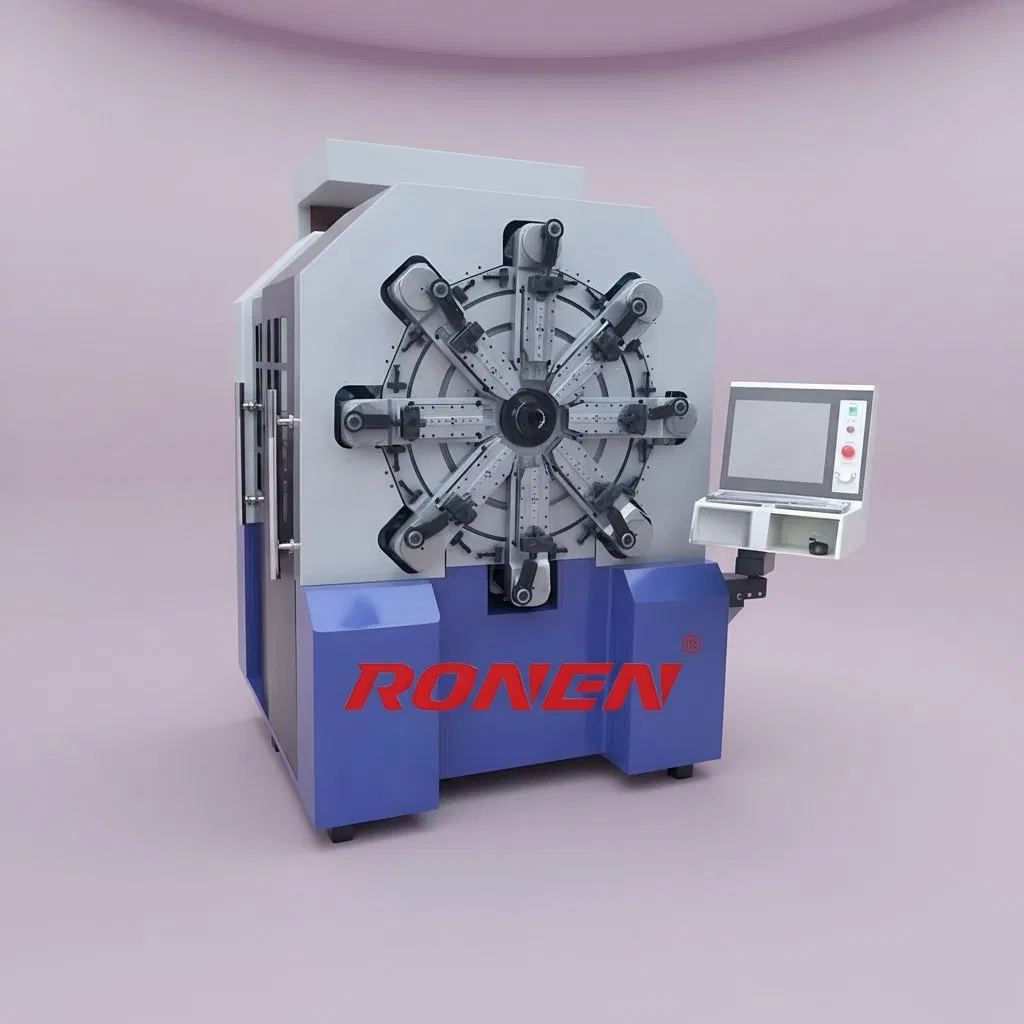

CNC Extension Spring Wire Forming Machine -
CNC Extension Spring Wire Forming Machine -
CNC Extension Spring Wire Forming Machine
Find Similar Products
Product Description
Product Description
RONEN Spring Making Machine-Professional Spring Manufacturing Solutions
The RONEN Spring Making Machine is engineered to meet the diverse and demanding requirements of modern spring manufacturing. Equipped with an advanced CNC control system, it boasts a high level of automation, ensuring precise and efficient operation with minimal human intervention. Its robust design features a wear-resistant structure that guarantees stable performance even during continuous long-term runs.
Designed for versatility, the machine accommodates a wide wire diameter range. It can seamless switch between different spring specifications. It is incredibly user-friendly and easy to operate, while its low energy consumption design significantly reduces overall workshop operating costs. Furthermore, we offer full support for custom special-shaped spring production, catering to your unique project needs.
Core Advantages
Our RONEN spring coiler stands out in the market with its exceptional performance. It delivers high forming precision with a remarkably low defective rate, ensuring superior product quality. It boosts production efficiency substantially, saving labor costs and meeting tight delivery schedules. As a cost-effective solution, it features low maintenance costs, ensuring long-term durability and strong adaptability to various workshop environments. Backed by our professional after-sales support team, we provide global installation, debugging, and technical guidance to ensure your production runs smoothly.
Applicable Products
The RONEN Spring Making Machine is capable of manufacturing a full range of springs, including standard compression springs, tension springs, and torsion springs. Beyond standard springs, it excels at producing custom special-shaped springs and general industrial wire forming parts, making it the ideal choice for hardware, automotive, electronics, furniture, and medical device industries.
Designed for versatility, the machine accommodates a wide wire diameter range. It can seamless switch between different spring specifications. It is incredibly user-friendly and easy to operate, while its low energy consumption design significantly reduces overall workshop operating costs. Furthermore, we offer full support for custom special-shaped spring production, catering to your unique project needs.
Core Advantages
Our RONEN spring coiler stands out in the market with its exceptional performance. It delivers high forming precision with a remarkably low defective rate, ensuring superior product quality. It boosts production efficiency substantially, saving labor costs and meeting tight delivery schedules. As a cost-effective solution, it features low maintenance costs, ensuring long-term durability and strong adaptability to various workshop environments. Backed by our professional after-sales support team, we provide global installation, debugging, and technical guidance to ensure your production runs smoothly.
Applicable Products
The RONEN Spring Making Machine is capable of manufacturing a full range of springs, including standard compression springs, tension springs, and torsion springs. Beyond standard springs, it excels at producing custom special-shaped springs and general industrial wire forming parts, making it the ideal choice for hardware, automotive, electronics, furniture, and medical device industries.
Specification
Mode | RN-1026 | RN-1045 | RN-1245 | RN-1250 | RN-1260 | RN-1280 | RN-12100 |
Wire Diameter | 0.2-2.5mm | 1.2-4.5mm | 1.2-4.5mm | 1.5-5mm | 2-6mm | 3-8mm | 5-10mm |
Max Wire Feed Instruction Value | 10000mm | 10000mm | 10000mm | 10000mm | 10000mm | 10000mm | 10000mm |
Min Wire Feed Instruction Value | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
Max Wire Feed Speed | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min |
Max Wire Feed Length | Infinite Length | Infinite Length | Infinite Length | Infinite Length | Infinite Length | Infinite Length | Infinite Length |
Axles Number | 10axles | 10axles | 12axles | 12axles | 12axles | 12axles | 12axles |
Total Output Power of Servo Motor | 9.45kw | 16.3kw | 20.2kw | 28.9kw | 40kw | 59.5kw | 67.7kw |
Input Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
Program Data Storage | More Than 2000 pcs | More Than 2000 pcs | More Than 2000 pcs | More Than 2000 pcs | More Than 2000 pcs | More Than 2000 pcs | More Than 2000 pcs |
Pneumatic System(Pressure) | 5-6kg/cm | 5-6kg/cm | 5-6kg/cm | 5-6kg/cm | 5-6kg/cm | 5-6kg/cm | 5-6kg/cm |
Pneumatic System(Probe) | 3 pcs | 3 pcs | 3 pcs | 3 pcs | 3 pcs | 3 pcs | 3 pcs |
Machine Sizes | 1.6*1.1*1.8m | 2.1*1.1*2.1m | 2.2*2*2.2m | 2.2*2.3*2.1m | 2.45*3*2.3m | 2.5*3.1*2.5m | 2.5*3.1*2.5m |
Machine Weight | 1200kg | 2100kg | 3000kg | 3500kg | 5300kg | 5800kg |
