Chinese Ink Printing Machine/Chain Feeder Type Machine
Contact Supplier
Product Highlights
- Overseas Engineering Service: Engineers available to service machinery overseas for after-sales support.
- ISO9001 Certified: Manufacturing process certified under ISO9001 quality management standards.
- High Precision Feeding: Adopts 12A high precision roller chain with double side gauge positioning.
- Chrome Plated Rollers: Printing and pressure rollers feature chrome plating for stability and durability.
- Manual Drive System: Manual driven type suitable for precise control in carton packaging.
- Fast Clearance Tuning: Self-locking device ensures even ink distribution and fast clearance fine-tuning.
- Low Noise Transmission: Ductile shaving gears with 50mm thickness ensure stable, low noise operation.
Product Attributes
- Customization
- Available
- Warranty
- Engineers Available to Service Machinery Overseas
- Certification
- ISO9001
- Model NO.
- 410-2800
- Driven Type
- Manual
- After-Sales Service Provided
- Engineers Available to Service Machinery Overseas
- Type
- Carton Packaging Machinery
- Automatic Grade
- Manual
- Transport Package
- Container
- Specification
- as machine's weight or volume
- Trademark
- Yunxiang
- Origin
- Hebei Province, China
- HS Code
- 843930000
- Production Capacity
- 100set/Year
- Package Size
- 400.00cm * 200.00cm * 300.00cm
- Package Gross Weight
- 10000.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

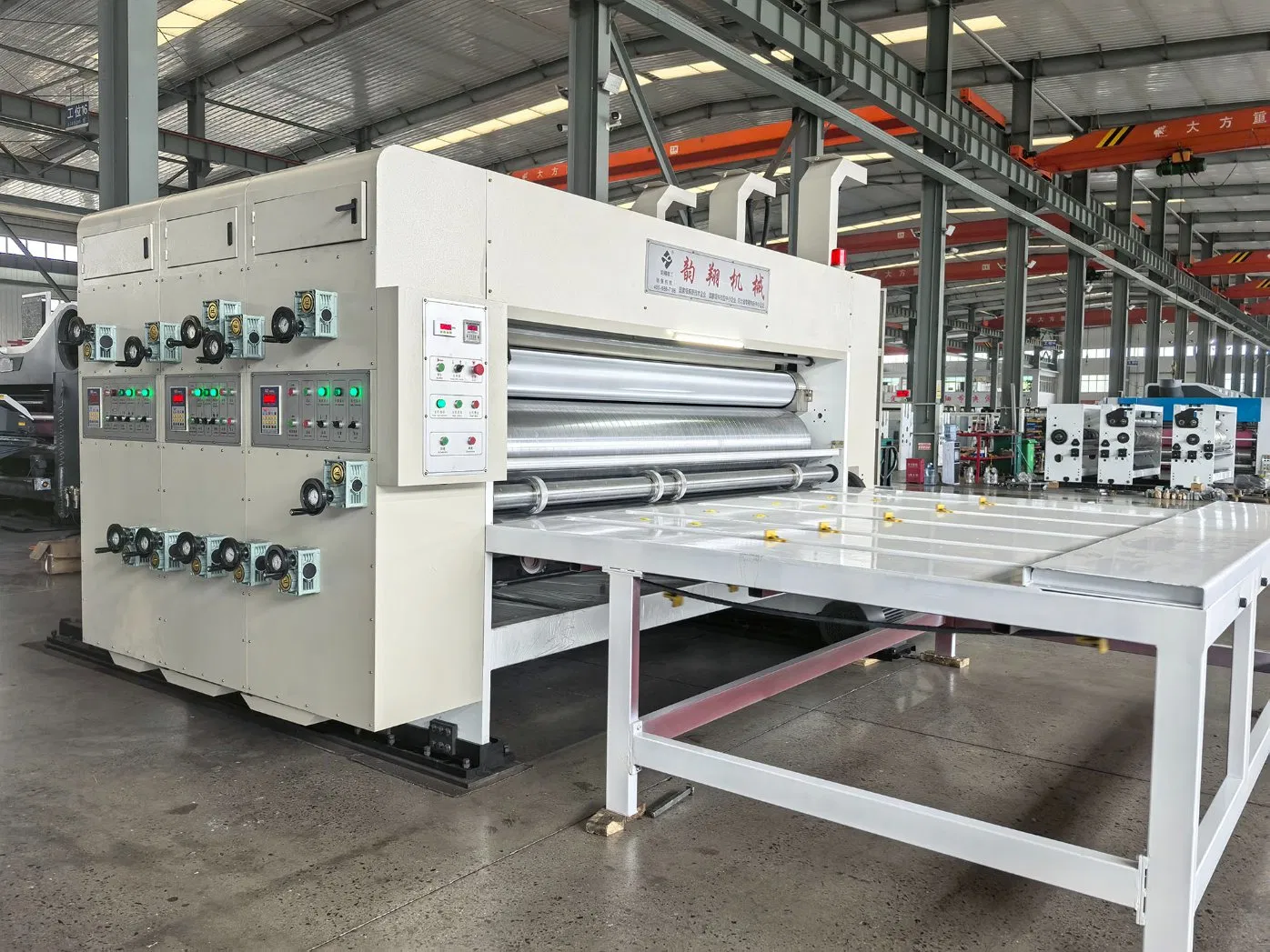

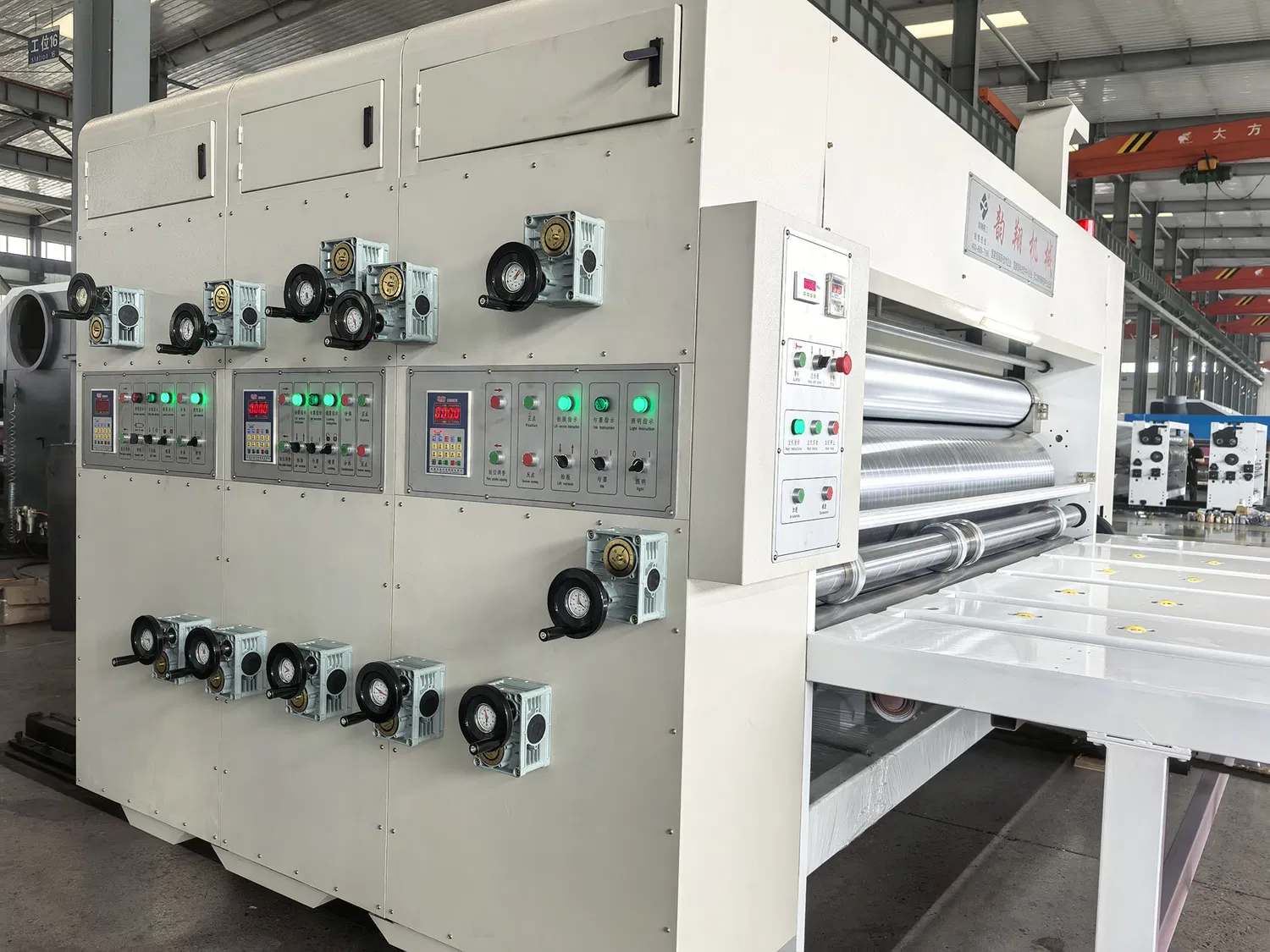

Product Images of Chinese Ink Printing Machine/Chain Feeder Type Machine
-
Chinese Ink Printing Machine/Chain Feeder Type Machine -
Chinese Ink Printing Machine/Chain Feeder Type Machine -
Chinese Ink Printing Machine/Chain Feeder Type Machine -
Chinese Ink Printing Machine/Chain Feeder Type Machine -
Chinese Ink Printing Machine/Chain Feeder Type Machine -
Chinese Ink Printing Machine/Chain Feeder Type Machine -
Chinese Ink Printing Machine/Chain Feeder Type Machine
Find Similar Products
Product Description
Product Description
Model |
Max.Paper size |
Effective printing area |
Standard plate thickness |
Speed |
| 2400*1445 | 2600*1250 | 2400*1200 | 4mm-6mm | 0-60sheet/min |

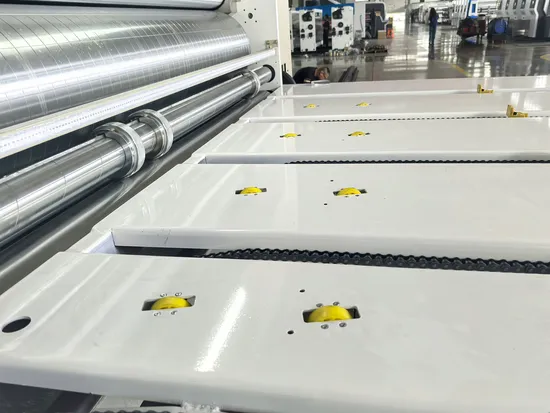

- Feeding unit
| Feeding | 12A 3mm Adopt 12A high precision roller chain feeding,double side gauge positioning,paper feeder front and rear adjustable,3mm working platform. |
- Printing unit
| Item | Instruction |
| 1.Printing roller(printing plate roller) | (1) 480mm.Diameter including printing plate 480mm. (2) Adopt high quality steel,surface grinding,chrome plated.After balance correction,stable running,suitable for high speed working. (3) The horizontal and circumferential direction of the roller body has base line,which makes it easier to match and fix plate. (4) 360° Electric 360° positive and negative adjustment printing roller, digital automatic display adjustment (5) Install pedal switch to control the positive and negative rotation of the plate roller, easy to change the plate. |
| 2.Printing pressure roller |
|
| 3.Steel anilox roller |
|
| 4 Rubber roller |
|
| 5 Phase adjust mechanical structure | (1). Planetary gear construction (2)360 The printing phase is electrical digital type 360°adjusted by computer phase meter.(operation and stop both can be adjusted). |
Slotting unit(Synchronous transverse movement)
| Pre-creasing wheel | (1) Equipped with four sets of pre-creasing wheels. (2) Effectively prevent paperboard from getting damaged. |
Creasing device |
(1) Steel pipe surface grinding,chrome plated,stable movement. (2) After balance correction,stable running. (3) 0-10mm .Adjust roller clearance dial manually, adjust range 0-10 mm. |
| Paper slitting /slotting knives holder | (1) 7mm Tooth type slotting knife thickness 7mm,high quality alloy steel after heating treatment. (2) Surface grinding and plated,stable movement. (3) Creasing wheel,slotting knife holder position is manual synchronous contol. |
| Slotting phase/box height adjust | (1) 360° Slotting phase 360°positive and negative adjust,fast and high precision. (2) Phase zeroing device to ensure slotting position consistency. |
Transmission gear
| Item | Instruction |
| Upper transmission gear | 50mm,0.05Gear is processed by ductile shaving,gear thickness is 50mm,common normal line runout within 0.05,stable running,low noise and high printing precision.
1.The main drive shaft connection adopts key-free connection.
2.Spray type lubrication
|
About the Supplier
This supplier has been audited by BV. Verify the report on the official BV website with ID "MIC-ASI226118". Items marked "
" are certified.
){kind=link}
Company Profile
CangZhou YunXiang Carton Machinery Co., Ltd is a industry mainly engaged in flexo printing products, LED by high speed flexo printing machine, a science and technology enterprise of investment, R& D design, production and manufacturing roll in one. With the industrial structure of business system and scale, we have developed into an advanced technology, excellent performance of packaging machinery leader.
YunXiang headquarter is located in DongGuang County, CangZhou City, the industrial base of the Bohai Rim Economic Zone, to provide satisfactory, high quality and efficient printing machine products and services to global customers as our responsibility. With scientific and technological innovation and professional manufacturing, the company has won the honor of HeBei Province High Quality Products, HeBei Province famous trademark, HeBei Province Science and Technology Enterprise, CangZhou City "Civilized Unit", "Safety Production Standardization Three-level Enterprise", DongGuang County "Advanced Production Safety Enterprise", DongGuang County Carton Packaging Machinery Federation "President Unit", etc. The company has passed the IOS9001: 2015 quality management system certification, the product has obtained "CE" certification and other professional qualifications certifications, and many technologies has obtained the national utility model patent certificate.
YunXiang adheres to the development policy of "quality integrity, win-win cooperation", adheres to the development concept of "long-term, stable, development, science and technology, international", products and services across nation and more than forty countries and regions on five continents. Established after-sale service network all over four continents including Asia, America, Europe, Africa, with excellent quality and good service has on the trust and praise by numerous enterprises.
YunXiang is willing to work with you to develop progresses and create a better future.
About Our Factory & Business Background
- Address
- No. 6, South Road of Exhibition Center, Cangzhou, Hebei, China
- Terms of Payment
- T/T
- International Commercial Terms(Incoterms)
- FOB
- Average Lead Time
-
Peak Season Lead Time: 1-3 months
Off Season Lead Time: one month - Nearest Port
- TianJin port
Our Production Capability & Technical Expertise
Our Industry Experience & Global Business Record
- Export Year
- 2004-07-08
- Main Markets
- North America, Eastern Europe, Africa, Mid East, Western Europe
FAQ
- Do you provide overseas service?
- Yes, engineers are available to service machinery overseas.
- What is the maximum paper size?
- The machine supports a maximum paper size of 2600*1250 mm.
- What is the printing speed?
- The speed ranges from 0 to 60 sheets per minute.
- Is the machine automatic or manual?
- This is a manual driven type machine with manual adjustments for pressure and clearance.
- What is the lead time for production?
- Lead time is one month during off-peak season and 1-3 months during peak season.
- What payment terms do you accept?
- We accept T/T (Telegraphic Transfer) as the term of payment.
- What is the warranty policy?
- We provide after-sales service with engineers available to service machinery overseas.
- What is the standard plate thickness?
- The standard plate thickness is between 4mm and 6mm.
