Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine
Contact Supplier
Product Highlights
- Siemens Control System: Features closed-loop control with Siemens servo drive for precise operation.
- Separate Motor Drive: 12 main drawing wheels driven by individual motors for high speed and low noise.
- Real-time Monitoring: Gear oil temperature detection thermocouples monitor via PLC touchscreen.
- Rotary Die Design: Improves roundness of finished wires with specialized sizing die technology.
- Full Immersion Cooling: Drawing drums use full-immersion lubrication and cooling for efficiency.
- Safety Flow Detection: Equipment cannot operate without drawing fluid due to flow detection switches.
- High Mechanical Speed: Maximum mechanical speed reaches 1800 meters per minute.
- CE ISO SGS Certified: Meets international safety and quality standards including REACH certification.
Product Attributes
- Customization
- Available
- After-sales Service
- Installation and Training
- Warranty
- 365 Days
- Model NO.
- 450-13-2
- Type
- Horizontal Metal Drawing Machine
- Usage
- Wire
- Metal Material
- Copper
- Outlet Diameter
- 2φ1.2mm-φ3.5mm or 1φ1.2mm-φ4.5mm
- Max.Inlet Wire Dia.
- Max 2*φ8.0mm
- Block Dia.
- 450mm
- Max. Number of Block
- 13
- Certification
- REACH, RoHS, ISO
- Condition
- New
- Motor
- Germany-Siemens
- Wire Drawing
- 13
- Blockdia
- 450mm
- Bearing
- Japan-NSK
- Control Box
- PLC Siemens
- Inlet
- Max 2*φ8.0mm
- Outlet
- 2φ1.2mm-φ3.5mm or 1φ1.2mm-φ4.5mm
- Max Mechanical Speed
- 1800m/Min
- Drawing Motors
- 12 Units (90kw×7 + 75kw×5) (Domestic AC Asynchrono
- Constant-Speed Motor
- 110kw (Domestic AC Asynchronous Servo Motor)
- Rotary Die Motor Power
- 0.55kw
- Mechanical Elongation
- 8%-46%
- Transport Package
- Wooden Package
- Specification
- CE ISO SGS
- Trademark
- Sam
- Origin
- China
- HS Code
- 8479400000
- Production Capacity
- 10 Sets Per Month
- Package Size
- 11500.00cm * 1800.00cm * 2000.00cm
- Package Gross Weight
- 9000.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

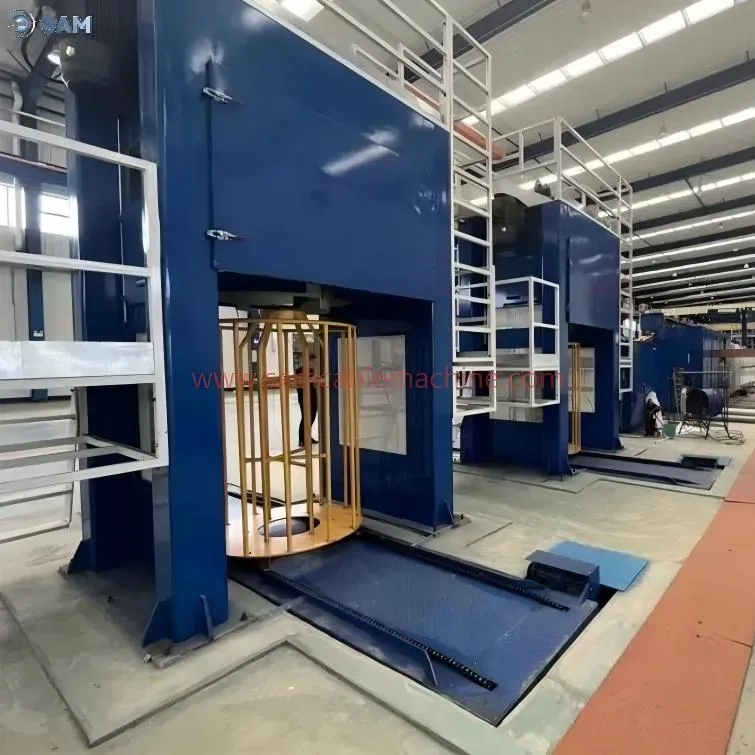

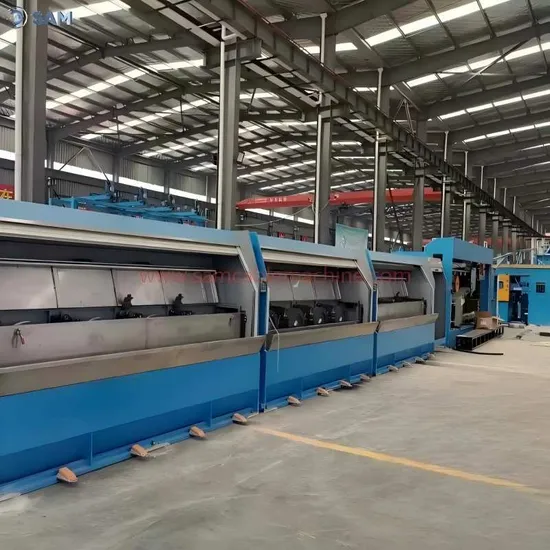

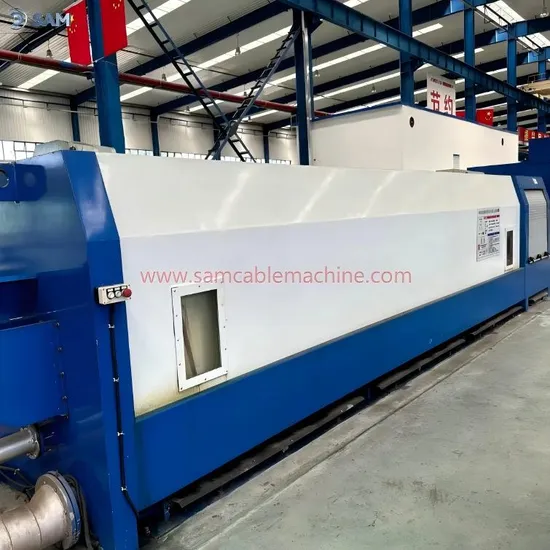

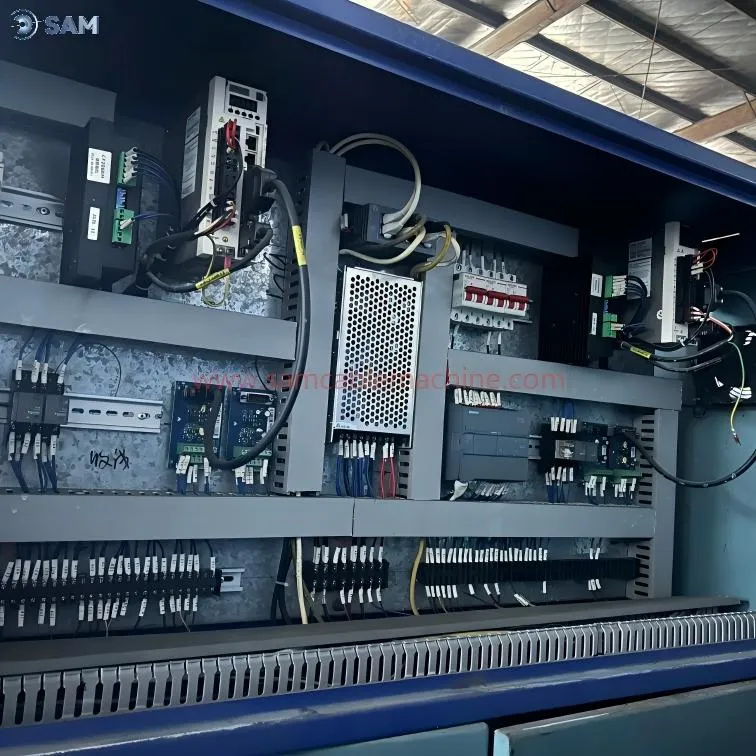

Product Images of Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine
-
Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine -
Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine -
Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine -
Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine -
Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine -
Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine -
Double-Head Individual Motor Controlled Slip Copper Rbd Wire Drawing Machine
Find Similar Products
Product Description
Product Description
FDJ450-13-2 Double-head 13-die Separate Motor Controlled Slip Copper Wire Drawing Machine
1. Features:
(1)The FDJ450-13-2 double-head 13-die separate motor controlled slip copper wire drawing main machine is developed by absorbing and improving foreign advanced models, featuring convenient operation and easy maintenance. Equipped with a Siemens control system for closed-loop control of separate motors, it enables controlled slip micro-sliding drawing between the wire and drawing drums. The 12 main drawing wheels are driven by separate motors matched with high-performance Siemens reduction gearboxes, ensuring low noise and high speed.
(2)The separate motor reduction gearboxes of the main machine adopt Siemens SIMOGEAR Helical series products, with gear lubricant being mineral oil CLP VG220. Each gearbox is fitted with a gear oil temperature detection thermocouple, which monitors oil temperature changes in real time via the PLC touchscreen to protect the normal operation of the gearboxes. The control program and human-machine interface can set gearbox maintenance cycles as required by the user.
(3)The drawing drums adopt full-immersion lubrication and cooling. The drawing fluid tank is controlled by an electric gate: the gate opens during die threading and wire winding for easy operation, and closes during normal drawing to fully immerse the drawing wheels. A rolling shutter door is also installed outside the drawing box.
(4)The sizing die features a rotary design to improve the roundness of finished wires. The constant-speed wheel uses internal water cooling for effective cooling during the drawing process.A flow detection switch at the drawing fluid inlet pipe, combined with a float switch in the drawing chamber, monitors the drawing fluid level. The equipment cannot operate without drawing fluid. A flow meter (with analog output and display screen) must be installed at the emulsion inlet.
2.Technical Parameters | |
Parameter | Value |
Outlet wire range | 2Φ1.2mm-Φ3.5mm or 1Φ1.2mm-Φ4.5mm |
Inlet wire range | Max 2*Φ8.0mm |
Max mechanical speed | 1800m/min |
Raw material | Oxygen-free/low-oxygen round copper rod |
Drawing motors (quantity) | 12 units (90KW×7 + 75KW×5) (domestic AC asynchronous servo motors) |
Constant-speed motor | 110kW (domestic AC asynchronous servo motor) |
Control system | Original German Siemens servo drive control system |
Rotary die motor power | 0.55KW |
Drawing drum diameter | Φ450mm |
Constant-speed wheel diameter | Φ450mm |
Mechanical elongation | 8%-46% |
Max drawing passes | 13 |
Drawing die size | Φ50mm×30mm |
Body structure | Q235 steel plate welding |
Drawing wheel cooling | Full immersion lubrication |
Constant-speed wheel cooling | Internal water cooling |
Operation direction | Right-hand |
Gate motor power | 0.75KW×2 |
Weight | Approx. 26000kg |
Dimensions (L×W×H) | 11500mm×1800mm×2000mm |
Installed power | 871KW |
3.Customization Cases:
