Embedded System 8-Binary-Input Relay Protection Tester
Contact Supplier
Product Highlights
- 6-Phase Output Capability: Outputs 6-phase current (6x0-32A) and 4-phase voltage (4x0-300V) for comprehensive relay testing.
- High Precision Accuracy: AC accuracy up to 0.05% with 1mA current and 1mV voltage resolution for reliable measurements.
- Dual Control Modes: Supports both local operation via 320x240 LCD screen and remote PC control for flexible usage.
- Built-in Monitoring: Real-time monitoring and unlimited recording of 6-phase current and 4-phase voltage without external wiring.
- Wide Frequency Range: Generates frequencies from DC to 1200Hz with high precision for testing various relay types.
- Comprehensive I/O: Features 10 binary inputs and 8 binary outputs with precise time accuracy and threshold characteristics.
- Portable Design: Compact dimensions (392x272x237mm) and lightweight (14.8kg) for easy transport to field sites.
- CE Certified Safety: Adheres to EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC for safe operation.
Product Attributes
- Customization
- Available
- After-sales Service
- on-Line Techinical Support
- Warranty
- 3 Years
- Model NO.
- Relaystar-H60
- Load Way
- Electronic Load
- Loading Method
- Dynamic Load
- Display
- Digital
- Control
- Computer Control
- Weight
- 0-100kg
- Power Source
- AC220V
- Current Output
- 6 Phases Max32A Per Phase
- Voltage Output
- 4 Phases Max 300V Per Phase
- AC Output Accuracy
- 0.05%
- Frequency
- DC-1200Hz
- Power
- 1X750va 3X400va 6X240va
- Harmonic
- 2~20 Times
- GPS
- in-Built
- Specification
- 420*360*210
- Trademark
- Relaystar
- Origin
- China
- HS Code
- 9030841000
- Production Capacity
- 5000platform/Year
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

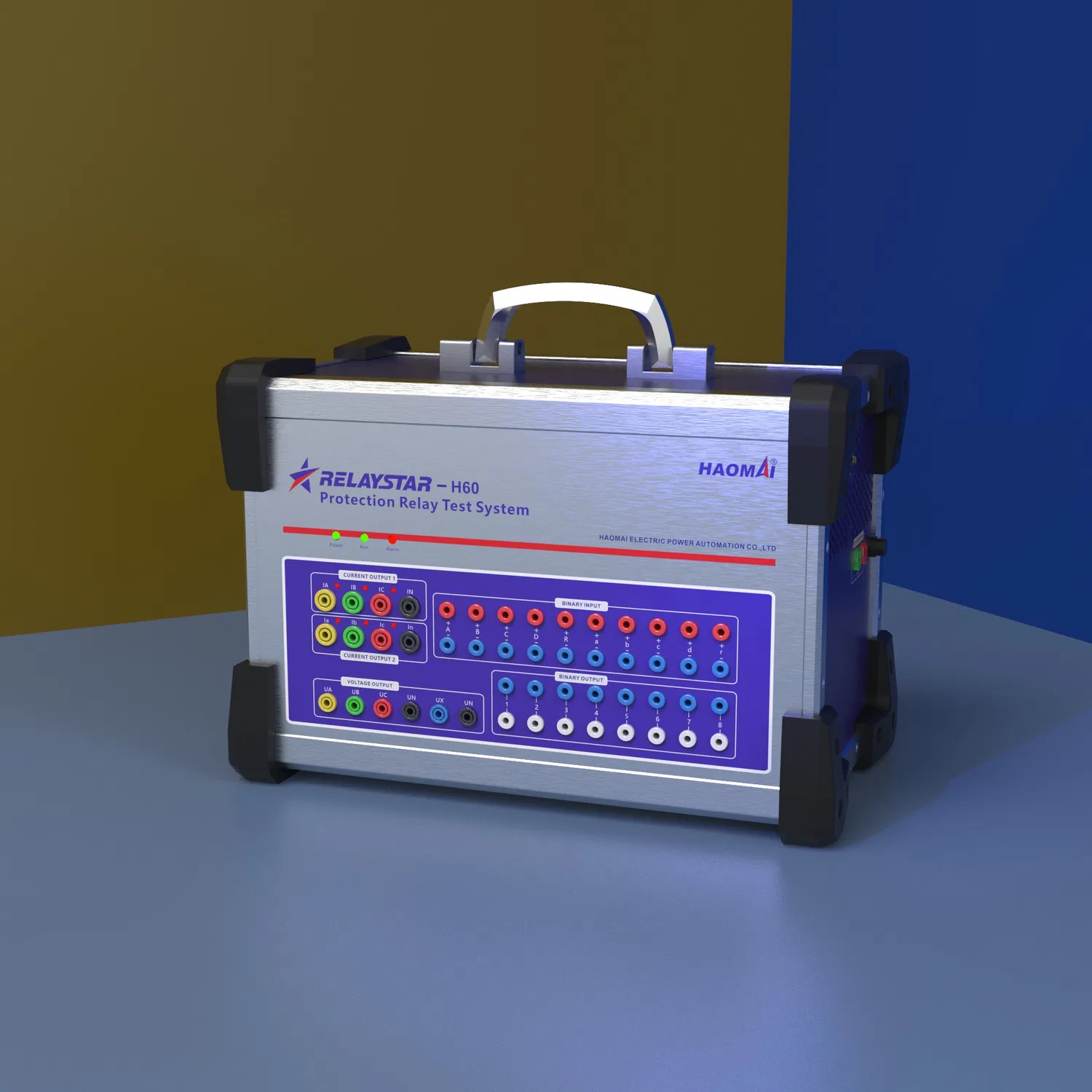

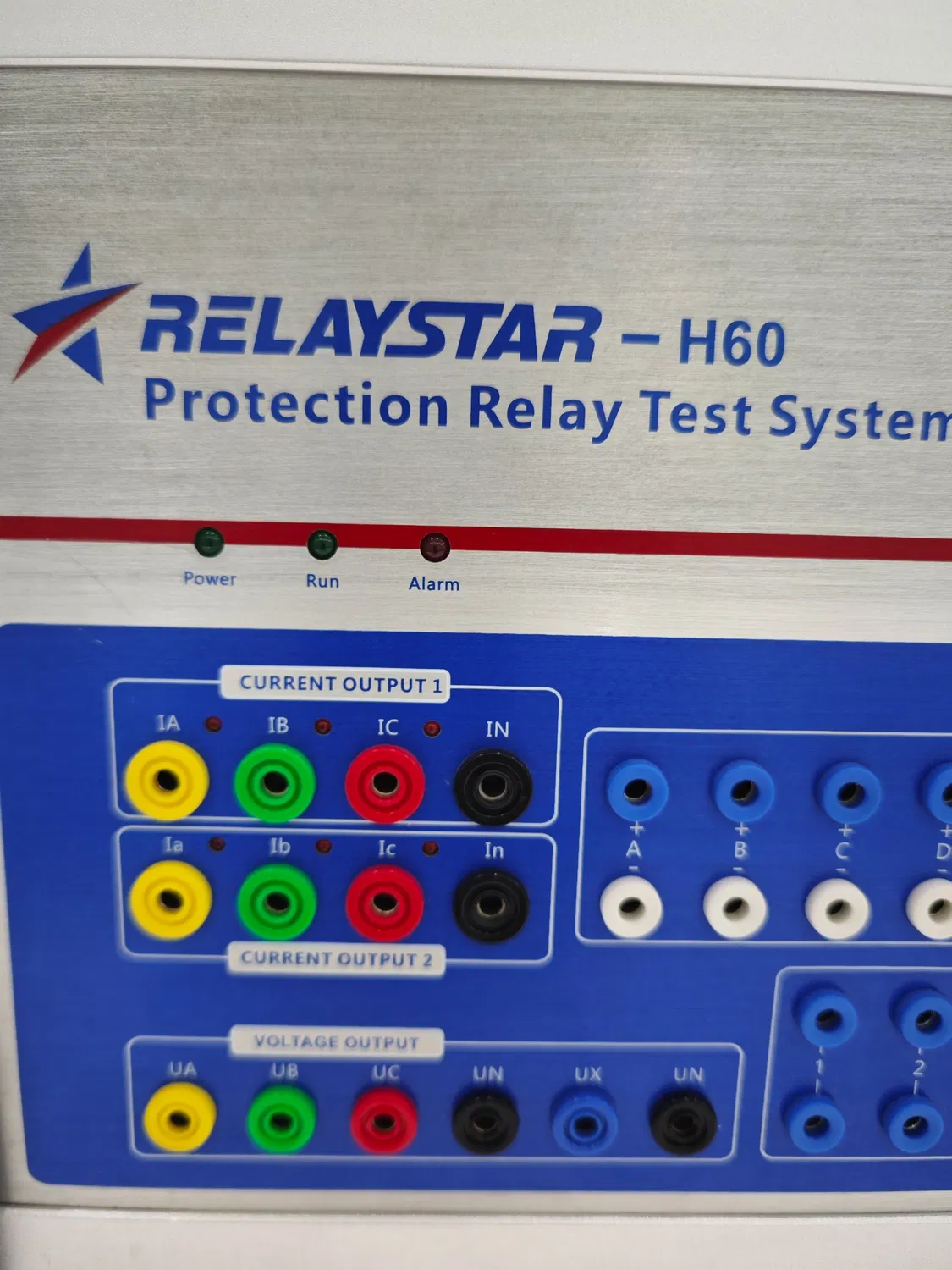

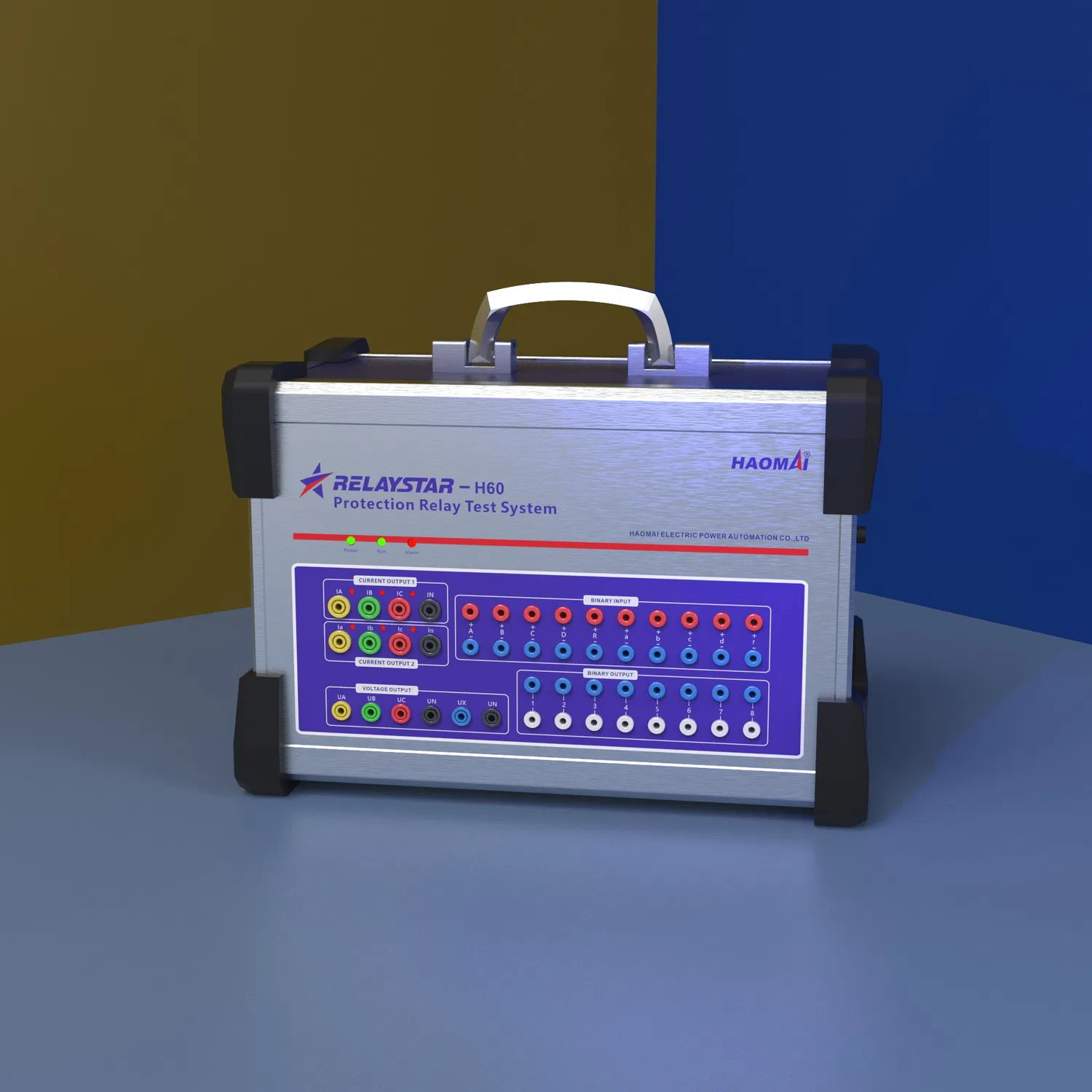

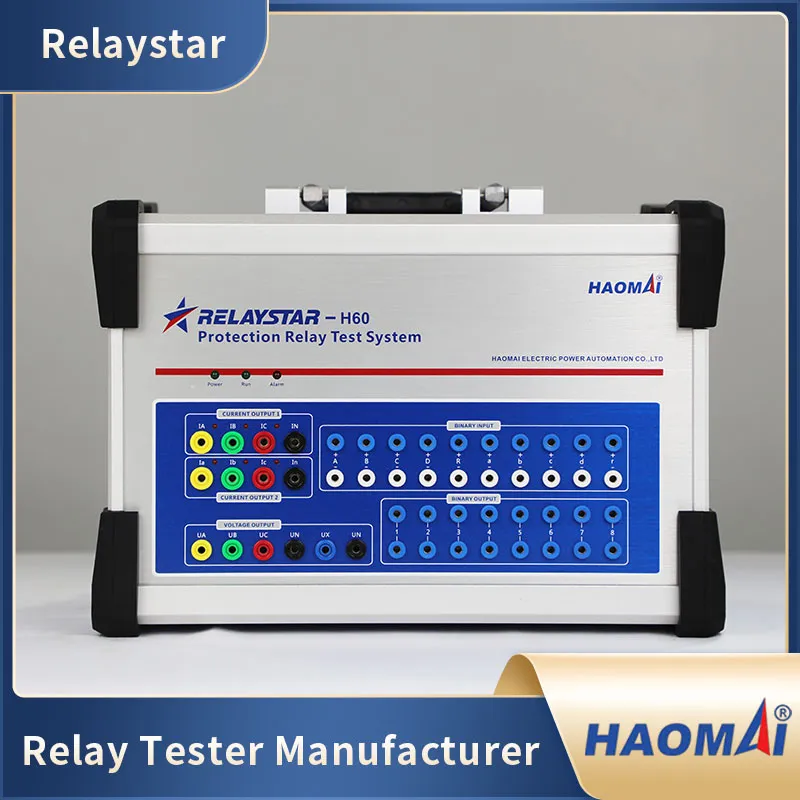

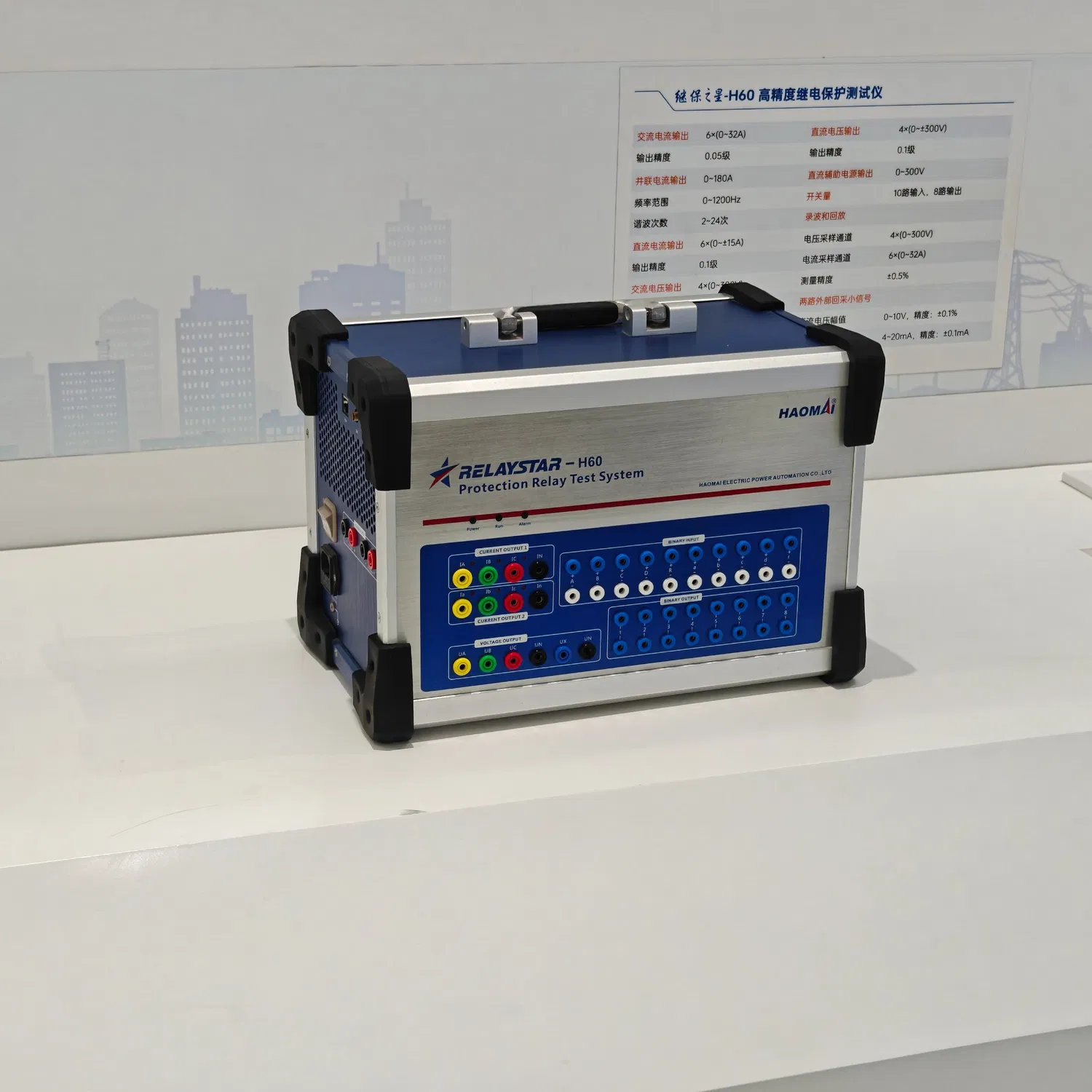

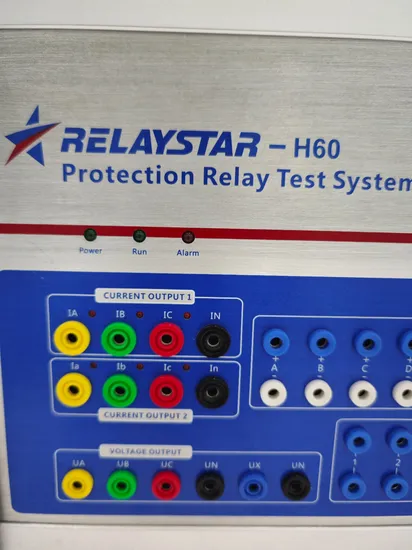

Product Images of Embedded System 8-Binary-Input Relay Protection Tester
-
Embedded System 8-Binary-Input Relay Protection Tester -
Embedded System 8-Binary-Input Relay Protection Tester -
Embedded System 8-Binary-Input Relay Protection Tester -
Embedded System 8-Binary-Input Relay Protection Tester -
Embedded System 8-Binary-Input Relay Protection Tester -
Embedded System 8-Binary-Input Relay Protection Tester
Find Similar Products
Product Description
Model: RELAYSTAR-H60
The RELAYSTAR-H60 is the portable 6-phase protection relay test system for testing most types of modern multi-function protection relays, which can output 6-phase current(6x0…32A) and 4-phase voltage (4x0…300V).
1) 3-phase current(3×40A) + 4-phase voltage(4×120V) output
2) Both local test and PC remote test available
3) Embedded system with 320×240 LCD screen
4) High performance linear power amplifier
5) 8 binary inputs + 4 binary outputs
6) Independent Aux. DC
7) Powerful software testing function
Current Generator
| Setting range | 6-phase AC(L-N) | 6x0…32A |
| 3-phase AC(L-N) | 3x0…64A | |
| 1-phase AC(LL-LN) | 1x0…192A | |
| DC(L-N) | 6x0…±15A | |
| Power | 6-phase AC(L-N) | 6x240VA at 32A |
| 3-phase AC(L-N) | 3x400VA at 64A | |
| 1-phase AC(LL-LN) | 1x750VA at 192A | |
| DC(L-N) | 6x240VA at 15A | |
| Accuracy | AC: ±2.5mA(≤0.5A), ≤0.05% (0.5~32A) | |
| DC: ≤0.1% | ||
| Resolution | 1mA | |
Voltage Generator
| Setting range | 4-phase AC(L-N) | 4x0…300V |
| 1-phase AC(L-L) | 1x0…600V | |
| DC(L-N) | 4x0…±300V | |
| Power | 4-phase AC(L-N) | 4x80VA at 300V |
| 1-phase AC(L-L) | 1x160VA at 600V | |
| DC(L-N) | 4x80VA at 300V | |
| Accuracy | AC: ±5mV(≤5V), ≤0.05% (5~300V) | |
| DC: ≤0.1% | ||
| Resolution | 1mV | |
Auxiliary DC Supply
| Voltage range | 0-300V |
| Output accuracy | ≤0.5% |
| Power | max.160VA |
Binary Inputs
| Number | 10 |
| Input characteristics | idle contact or potential-free contact |
| Threshold characteristics | "0":0-6V; "1":11V-250V |
| Max. measuring time | 999999.999s |
| Time accuracy | ≤0.1ms |
| Time resolution | 0.1ms |
Binary Outputs
| Number | 8 |
| Type | idle contact |
| Break capacity | 250VAC/0.5A, 250VDC/0.2A |
DC Voltage Measuring Input
| Measuring range | 0 ... ±10 V |
| Accuracy | error < 0.02 % rg. typ., < 0.05 % rg. guar. |
DC Current Measuring Input
| Measuring range | 0 ... ±20 mA |
| Accuracy | error < 0.02 % rg. typ., < 0.05 % rg. guar. |
In-built Monitoring and Recording
| Monitoring | 6-phase current and 4-phase voltage outputs |
| Recording | analog outputs |
| Mode | real time monitoring, no external wiring is required |
| Recording length | unlimited (until the internal memory is full) |
General Generators
| Frequency | range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz),<2mHz(65~450Hz),<5mHz(450~1200Hz) | |
| resolution: 0.001Hz | |
| Phase | range: -360° ~+360° |
| accuracy: 0.1° | |
| resolution: 0. 1° | |
| Harmonic | superposition order: 2~20 times |
| distortion: ≤0.5% |
Power Supply
| Nominal input voltage | AC220V/230V±10%, 1-phase |
| Nominal frequency | 50/60 Hz |
| Rated current | 10A at 230V |
| Connection | standard AC socket (IEC 60320) |
Miscellaneous
| Weight | 14.8kg(32.63 lb) |
| Dimensions (W x H x D, without handle) | 392x272x237mm(15.43x10.71x9.33 in) |
| Connection port | 1 Ethernet port |
Environmental Conditions
| Operation temperature | 0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature | -25 ... +70 °C (-13 ... +158 °F) |
| Humidity range | relative humidity 5 ... 95 %, non-condensing |
| Vibration | IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Safety Standards, Electromagnetic Compatibility
| EMC | The product adheres to the electromagnetic compatibility (EMC) Directive 2004/108/EC(CE conform) |
| IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3 | |
| Safety | The product adheres to the low voltage Directive 2006/95/EC(CE conform). |
| IEC 61010-1 |
