Enterprise Router Netengine 8000 X8 Integrated Chassis Components
Contact Supplier
Product Highlights
- High Switching Capacity: Up to 346.3 Tbit/s switching capacity for enterprise network performance.
- Modular Architecture: 18 slots with 8 service board slots, supporting flexible configuration.
- Redundant Design: Features 7+1 redundant switch fabrics, 1:1 MPUs, and 9+1 power supplies.
- Multi-Power Support: Supports AC, HVDC, and DC power supply modes for versatile deployment.
- High Availability: 0.99999 availability with 18.61 years MTBF and 0.5 hours MTTR.
- OEM/ODM Service: Customization from samples and designs available for specific needs.
- Fast Response Support: 24-hour reply for inquiries and 7*24 hour technical support availability.
- Comprehensive Warranty: 1-year warranty coverage with free training and on-site technical support.
Product Attributes
- Customization
- Available
- Type
- Enterprise Router
- Network Site
- Border Router
- Model NO.
- NetEngine 8000 X8
- Transfer Rate
- 1/10/100 Gbps
- Firewall
- Without Firewall
- Ports
- 18
- Port Structure
- Modular
- Application
- Enterprise
- Network
- Enterprise Network
- Performance
- Line-Rate Router
- Architecture
- Crossbar System
- Use
- Router
- Warranty
- 1 Year
- Description
- Netengine 8000 X8 Integrated Chassis Components
- Power Supply Mode
- DC, AC&Hvdc
- Number of Slots
- 18
- Number of Service Board Slots
- 8
- Switching Capacity [BPS,Bit/S]
- 21.64 (1t) 43.29 (2t) 83.78 (4t) 346.3 (14.4t)
- Flash Memory
- 64MB
- Rated Input Voltage [V]
- AC: 200 V to 240 V Hvdc: 240 V/380 V DC: -48/-60
- Transport Package
- Mail Box Packing
- Specification
- 70.3cm(15.8U) x 44.2cm x 87.4cm
- Trademark
- HW
- Origin
- Hubei, China
- Production Capacity
- 100 Piece/Pieces Per Month
- Package Size
- 70.30cm * 44.20cm * 87.40cm
- Package Gross Weight
- 177.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

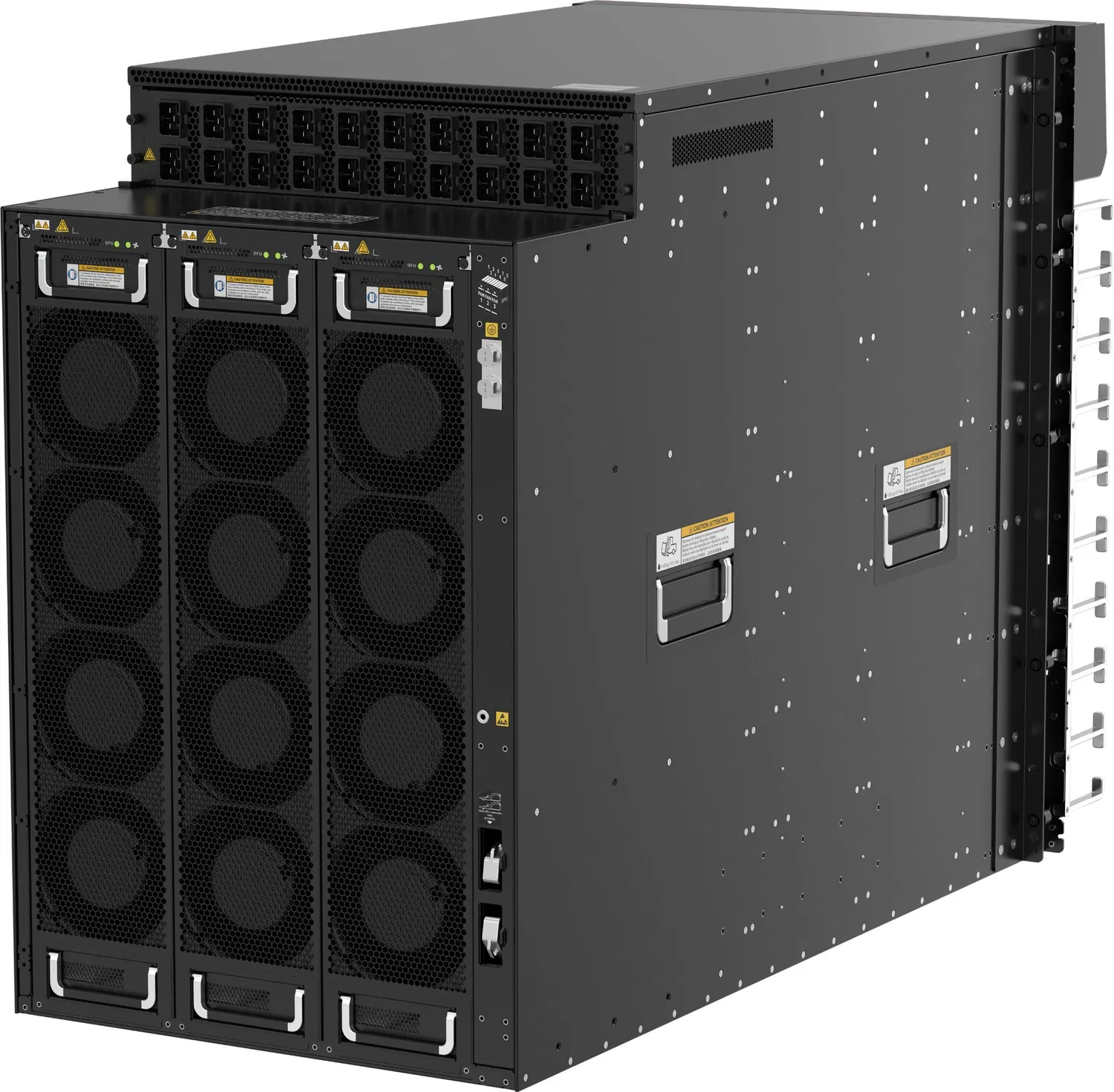

Product Images of Enterprise Router Netengine 8000 X8 Integrated Chassis Components
-

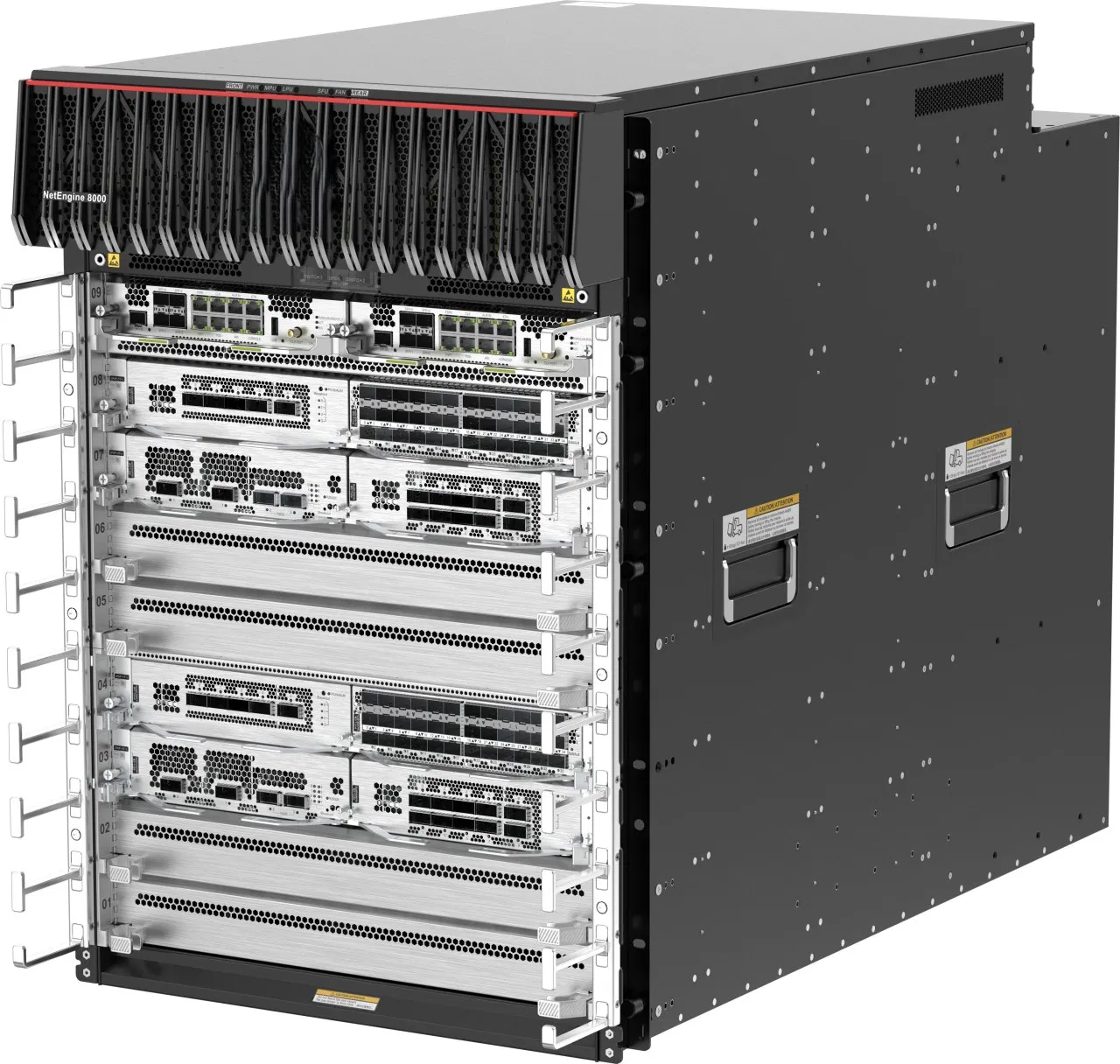

Enterprise Router Netengine 8000 X8 Integrated Chassis Components -

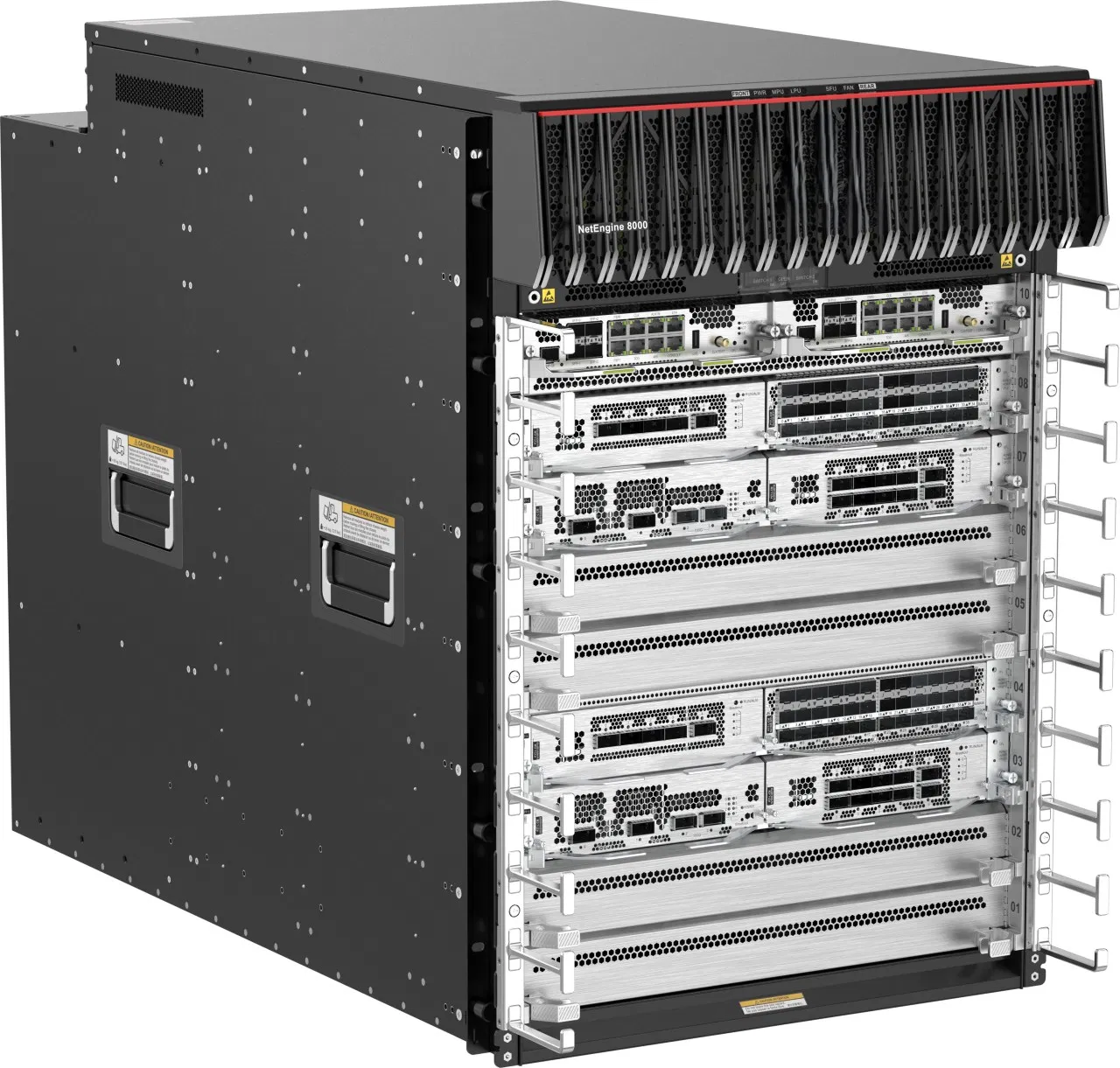

Enterprise Router Netengine 8000 X8 Integrated Chassis Components -

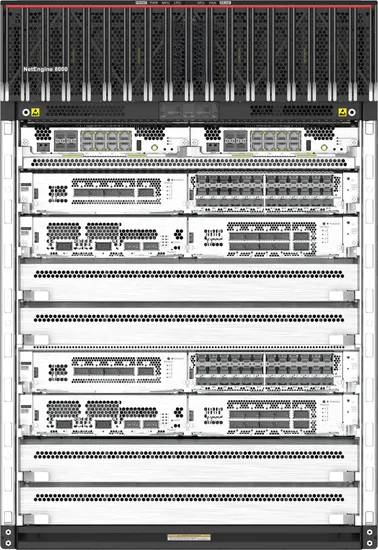

Enterprise Router Netengine 8000 X8 Integrated Chassis Components -

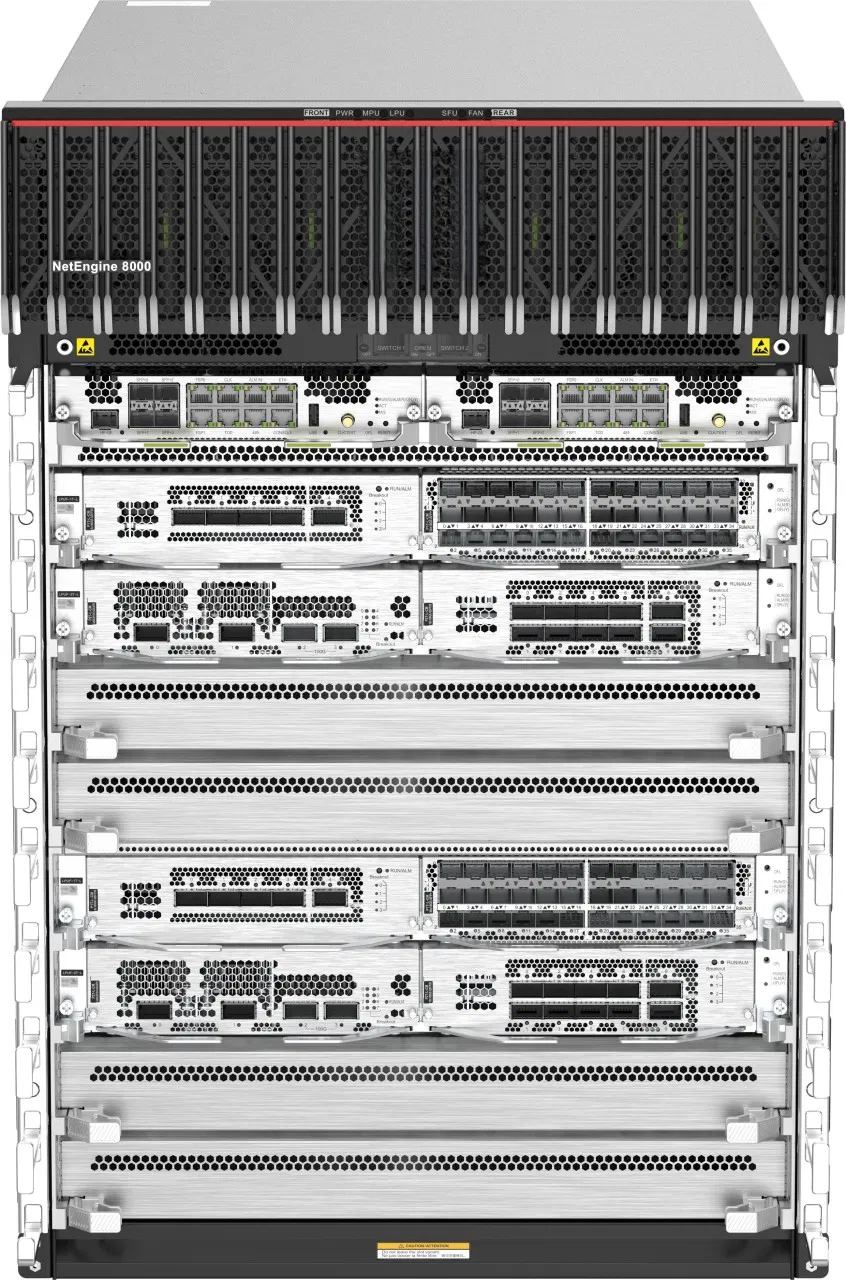

Enterprise Router Netengine 8000 X8 Integrated Chassis Components -

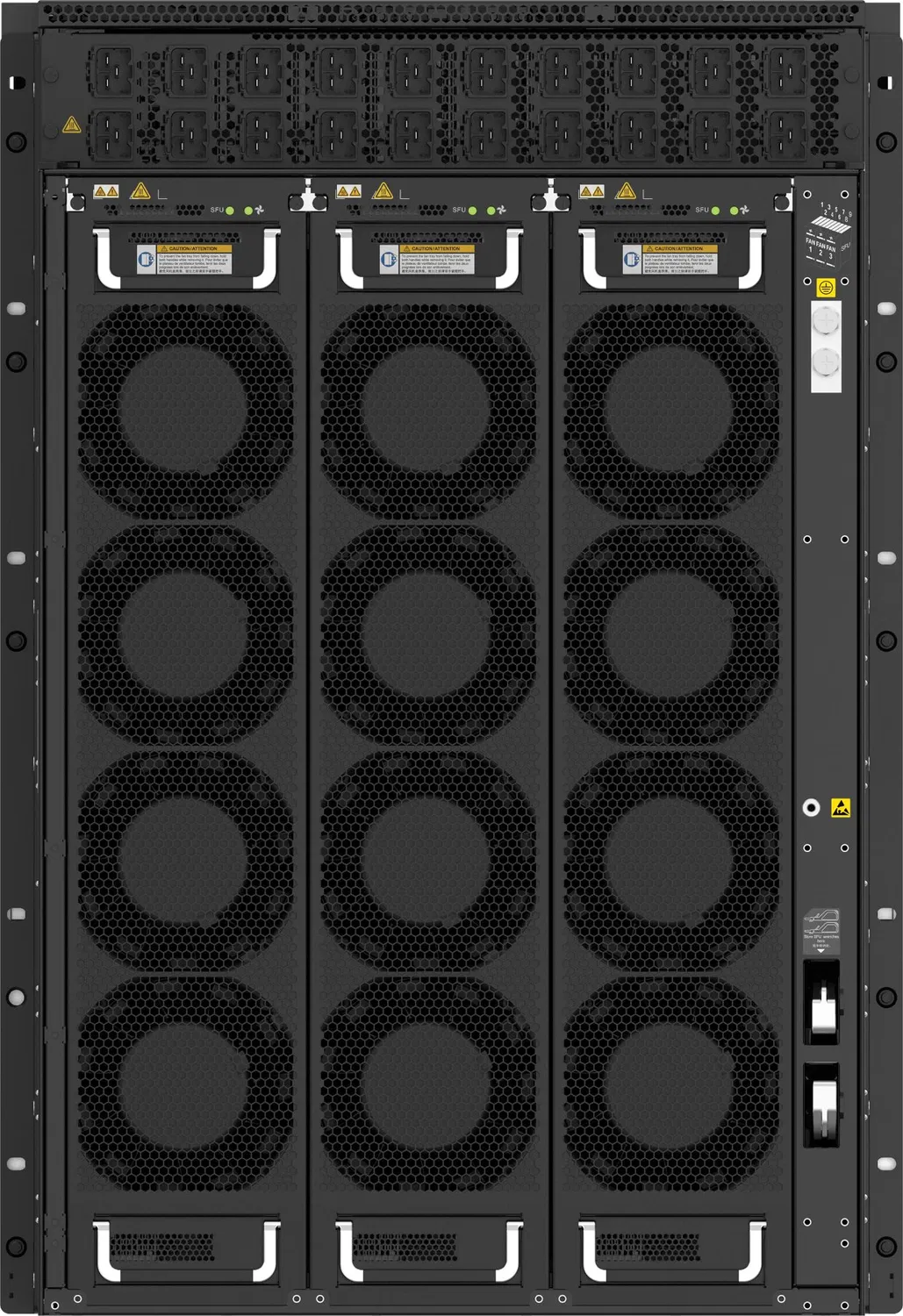

Enterprise Router Netengine 8000 X8 Integrated Chassis Components -

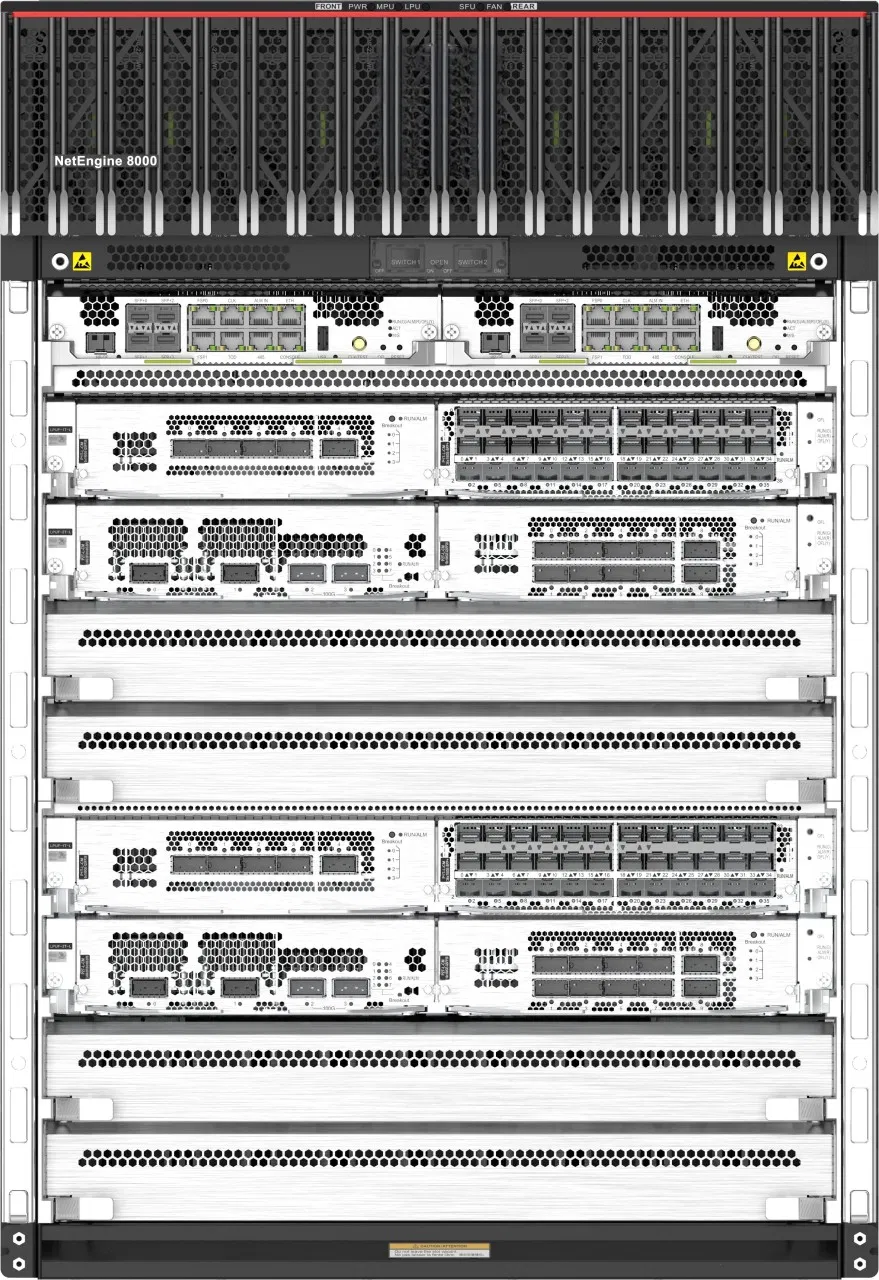

Enterprise Router Netengine 8000 X8 Integrated Chassis Components -

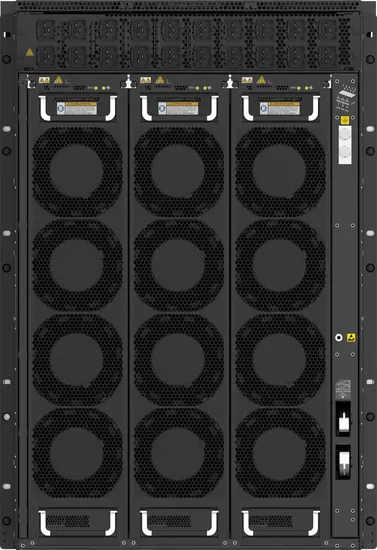

Enterprise Router Netengine 8000 X8 Integrated Chassis Components
Find Similar Products
Product Description
Overview: NetEngine 8000 X8 Integrated Chassis Components
 |
|
Technical specifications
| NetEngine 8000 X8 | ||||
| Part Number | 02353CWB | 02353CWB-001 | 02353CWC | 02353CWC-001 |
| Model | CR8PBKP08AC0 | CR8PBKP08AC0 | CR8PBKP08DC0 | CR8PBKP08DC0 |
| Description | NetEngine 8000 X8 Integrated Chassis AC&HVDC Components | NetEngine 8000 X8 Integrated Chassis AC&HVDC Components | NetEngine 8000 X8 Integrated Chassis DC Components | NetEngine 8000 X8 Integrated Chassis DC Components |
| Height x Wide x Depth | 70.3cm(15.8U) x 44.2cm x 87.4cm | |||
| Weight with packaging [kg(lb)] | AC&HVDC: 177 kg (390.21 lb) DC: 183 kg (403.44 lb) |
|||
| Weight without packaging (full configuration) [kg(lb)] | AC&HVDC: 4T bundle: 308.5 kg (680.1 lb) 14.4T bundle: 340.5kg (750.7 lb) DC: 4T bundle: 310.5 kg (684.5 lb) 14.4T bundle: 348.5 kg (768.3 lb) |
|||
| Weight without packaging [kg(lb)] | AC&HVDC: 94 kg (207.23 lb) DC: 100 kg (220.46 lb) |
|||
| Typical power consumption (with configuration) [W] | 10256 W (LPUI-4T boards are fully configured) | |||
| Maximum power consumption (with configuration) [W] | 18531 W (LPUI-4T boards are fully configured) | |||
| Maximum heat dissipation (with configuration) [BTU/hour] | 46942 BTU/hour (LPUI-4T boards are fully configured) | |||
| Typical heat dissipation (with configuration) [BTU/hour] | 32665 BTU/hour (LPUI-4T boards are fully configured) | |||
| Heat dissipation mode | air cooling | |||
| Power supply mode | AC/HVDC, DC | |||
| Input voltage range [V] | AC: 176 V-290 V HVDC: 188 V-400 V DC: -40 V to -72 V |
|||
| Rated input voltage [V] | AC: 200 V to 240 V HVDC: 240 V/380 V DC: -48/-60 V |
|||
| Maximum input current [A] | AC: 16 A per module HVDC: 14 A per module DC: 58.5 A/single-module |
|||
| Number of slots | 18 | |||
| Number of service board slots | 8 | |||
| Switching capacity [bps,bit/s] | 21.64 Tbit/s(1T bundle) 43.29 Tbit/s(2T bundle) 83.78 Tbit/s (4T bundle) 346.3 Tbit/s (14.4T bundle) |
|||
| Redundant Switch fabrics | 7+1 | |||
| Redundant fans | Supports redundancy backup of a single fan. | |||
| Redundant MPUs | 1:1 | |||
| Redundant power supply | 9+1 | |||
| Noise at normal temperature (acoustic power) [dB(A)] | < 78 dB(A) @ 27°C | |||
| Airflow direction | Front-to-back airflow | |||
| Maximum number of power chassis inputs | (20 channels/PEM) x 1 PEM = (2 channels/PM) x 10 PMs = 20 channels | |||
| Maximum input cable size | AC&HVDC: 2.5 mm² DC: 35 mm² |
|||
| Front-end circuit breaker/fuse | AC: - UPS power distribution: 2x16 A per module, 10 PMs, 20x16 A required in total - Mains power distribution: 2x20 A per module, 10 PMs, 20x20 A required in total HVDC: 2x20 A per module, 10 PMs, 20x20 A required in total DC: 2200 W DC PM: 2 x 63 A per module, 10 PMs, a maximum of 20 x 63 A per chassis 3000 W DC PM: 2 x 100 A per module, 10 PMs, a maximum of 20 x 100 A per chassis 4000 W DC PM: 2 x 125 A per module, 10 PMs, a maximum of 20 x 125 A per chassis |
|||
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) | |||
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158 °F) | |||
| Short-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) | |||
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 0.5°C/min (32.9°F/min), non-condensing | |||
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing | |||
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing | |||
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing | |||
| Storage altitude [m(ft.)] | < 5000 m (16404.2 ft.) | |||
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.) | |||
| MTBF [year] | 18.61 year | |||
| MTTR [hour] | 0.5 hour | |||
| Availability | 0.99999 | |||
