Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System
Transactions: +
Contact Supplier
Still deciding? Get samples of $ !
Request Sample
Product Highlights
- Customizable Configuration: Flexible customization options including RAM, storage, OS, and interfaces based on your specific requirements.
- Industrial Grade Hardware: Aluminum alloy housing with excellent EMC shielding, DIN rail installation, and IP32 protection grade.
- Real-Time Control System: Powered by Raspberry Pi Compute Module 4 with CoDeSys RTE, Preempt RT kernel, and Linux OS.
- Built-in UPS Protection: Integrated BMS system provides 30-second shutdown time to ensure data safety during power loss.
- Comprehensive Interfaces: Features 2x USB 2.0, 2x RJ45 LAN, HDMI/DVI output, and Micro USB for versatile connectivity.
- Professional Manufacturer: Over 13 years of experience in R&D and production of industrial HMI and automation products.
- Fast Sample Delivery: Standard samples delivered in 5-7 working days; customized samples in 20-30 days.
- 2-Year Warranty Support: Comprehensive 2-year product warranty covering mechanical defects and technical support.
Product Attributes
- Customization
- Available
- Task
- Program
- Structure
- PLC
- Model NO.
- PX9400
- Mathematical Model
- PLC
- Signal
- Continuous
- Function
- Automatic Control
- Certification
- ISO: 9001, CE
- Condition
- Used
- Customized
- Customized
- Material
- Aluminum Alloy
- Application O/S
- Linux
- Installation Type
- DIN Rail
- Interface-1
- 2xusb2.0 Type a
- Interface-2
- 1 X Hdm I + 1 X DVI + 1 X Micro USB
- Power Consuption
- 15W
- LAN
- 2xrj45 10/100mbit /S
- CPU
- Bcm2711
- Transport Package
- Carton Packing
- Specification
- 145*105*35
- Trademark
- Panelmate
- Origin
- Shanghai, China
- Package Size
- 32.00cm * 22.00cm * 12.00cm
- Package Gross Weight
- 1.500kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

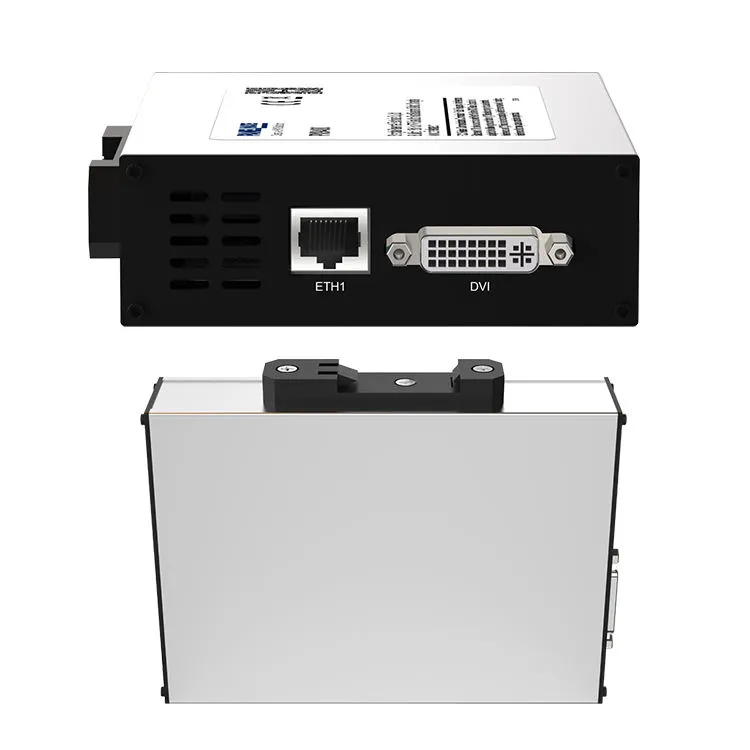

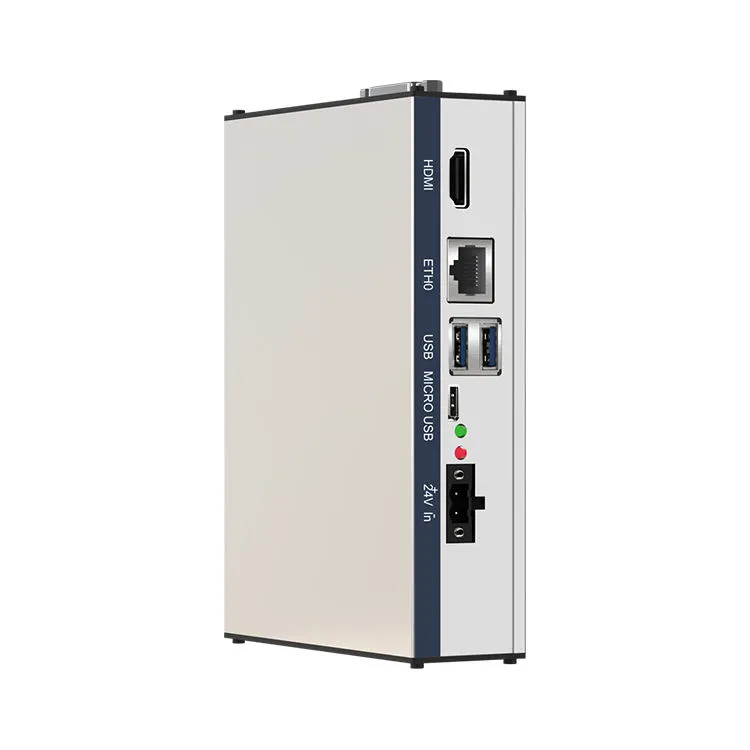

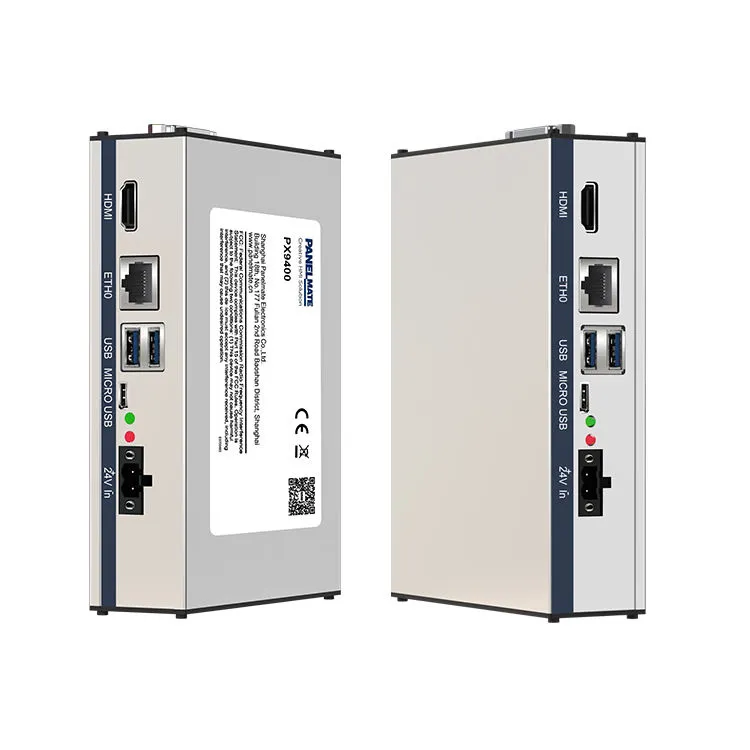

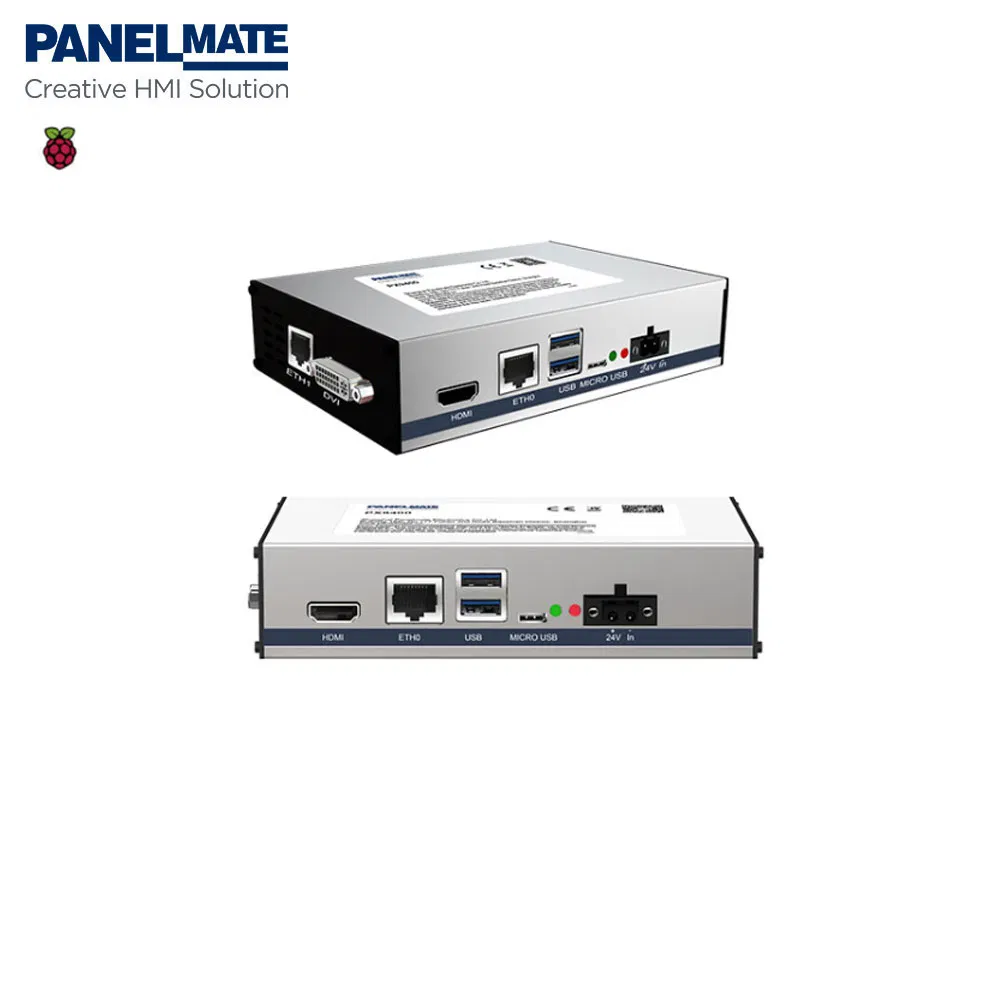

Product Images of Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System
-
Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System -
Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System -
Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System -
Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System -
Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System -
Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System -
Industrial Controller Automation Px9400 Custom Raspberry Pi Compute Module Industry Codesys PLC System
Find Similar Products
Product Description
Hardware Configuration
The hardware is depend on Raspberry Pi Compute Module 4 with external board, The External board have features below:
1. Charge manager with BMS(UPS)
2. 2xUSB and 2 x RJ45
3. DVI or HDMI display output.
4. Inelligent BOOT sel, Flash via micro usb
5. Double LED for power and disk use
Software Configuration
The Raspberry pi os is based on Debian Linux. We already installed real-time kernel, overlay,codesys rte and configuration fine.
1. Raspberry pi os(32 bit)
2. Preempt RT Real-time patch
3. CoDeSys control for raspberry pi mc sl
4. dtoverlay, make plc is Easy-To-Use
5. Compatible Python, C, Node-Red, etc
|
Model Number
|
PX9400
|
|
|
Brand Name
|
Panelmate
|
|
|
Base Material
|
Aluminum housing
|
|
|
Copper Thickness
|
1oz
|
|
|
Size
|
150x90x30mm
|
|
|
Installation type
|
Din Rail
|
|
|
Interface-1
|
2xUSB2.0 Type A
|
|
|
RAM
|
2G
|
|
|
CPU
|
BCM2711
|
|
|
UPS
|
2xRJ45 10/100Mbit /s
|
|
|
Interface-2
|
1 x HDM i + 1 x DVI + 1 x Micro USB
|
|
|
Power consuption
|
15W
|
|
|
Flash
|
8G eMMC
|
|
|
Protection grade
|
IP32
|
|
|
Product Features
|
|
|
|
· All aluminum housingexcellent EMC shielding capability
· Unilateral interface with DIN rail wall-mounted · DC 24V · Work temperature-20~60 · Built-in BMS system provides 30s shutdown time by defaut · Support SoftMotionCoDeSys 3.5.14.40 · Support VisualizationChromium WebVisu · Support for Tracebreakpointsflflow control Debug |
|
|
Q: Are you a manufacturer or a trading company?
A: Yes,we are a professional manufacturer engaged in R&D and production of HMI products over 13 years. Our advanced technology,equipment and efficient management ensure excellent quality and competitive price.
Q: Where is your factory?
A: Our factory is located in Shanghai ,China,which the traffic is convenient and close to Pudong and Hongqiao International Airport. It is easy for customers to visit and also for goods quicker shipping.
Q: Can I order samples?
A: Yes,We can make the samples according to your requirements. You should pay the sample fee and shipping fee.
Q:How to cooperate to develop customized products?
A:Decide for yourself how much performance you need, how much RAM, which hard disk or SDD size, which display size and also which interface are needed in the industrial PC, panel PC or others. Should Windows be running on the system or Linux, or do you want to install the operating system in-house? With us your specific desired confirguation can be put together completely basen on your specification. if you are unsure about minimum requiremnts, our product consultants are happy to help you.Simply send the requirements of your desired configuration to us by e-mail, you will receive your offer for desired configuartion within 1-2 working days.
Q: What is the lead time for sample orders and bulk production orders?
A: Normally, it is 5-7 working days basen on standard product.For customized products,it will be taken around 20-30 days, or to be negotiated .
Q: What is term of payment?
A: For sample order,100% T/T in advance For bulk order, 30% deposit in advance, 70% balance before shipment or L/C at sight.
Q: How about the after-sale service?
A: Our products have a 2-years product warranty.
Q: Where is your factory?
A: Our factory is located in Shanghai ,China,which the traffic is convenient and close to Pudong and Hongqiao International Airport. It is easy for customers to visit and also for goods quicker shipping.
Q: Can I order samples?
A: Yes,We can make the samples according to your requirements. You should pay the sample fee and shipping fee.
Q:How to cooperate to develop customized products?
A:Decide for yourself how much performance you need, how much RAM, which hard disk or SDD size, which display size and also which interface are needed in the industrial PC, panel PC or others. Should Windows be running on the system or Linux, or do you want to install the operating system in-house? With us your specific desired confirguation can be put together completely basen on your specification. if you are unsure about minimum requiremnts, our product consultants are happy to help you.Simply send the requirements of your desired configuration to us by e-mail, you will receive your offer for desired configuartion within 1-2 working days.
Q: What is the lead time for sample orders and bulk production orders?
A: Normally, it is 5-7 working days basen on standard product.For customized products,it will be taken around 20-30 days, or to be negotiated .
Q: What is term of payment?
A: For sample order,100% T/T in advance For bulk order, 30% deposit in advance, 70% balance before shipment or L/C at sight.
Q: How about the after-sale service?
A: Our products have a 2-years product warranty.
