Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine
Contact Supplier
Product Highlights
- 1-Year Warranty Coverage: Includes 1-year warranty with video outgoing-inspection and machinery test report provided.
- ISO9001:2008 Certified: Manufacturing process certified by ISO9001:2008 and BV certificate for quality assurance.
- High Production Capacity: Capable of producing 1000kg per hour with a max rolling speed of 190m/Min.
- Touch Screen PLC Control: Advanced control technology featuring Touch Screen, PLC, and Encoder for precision.
- 24-Hour Technical Support: Engineers available via email and online platform for immediate assistance.
- Eco-Friendly & Safe Operation: Designed with high safety levels and eco-friendly features for sustainable production.
- Customizable Production Line: Offers customized options for control technology and wire collecting methods.
Product Attributes
- Customization
- Available
- After-sales Service
- 2years
- Automatic Grade
- Automatic
- Model NO.
- CY01A
- Warranty
- 1 Year
- Certification
- ISO
- Control Technology
- Touch Screen+ PLC+ Encoder
- Max. Diameter Before Processing
- φ6.5-14mm
- Finished Ribbed Diameter
- φ5-13mm
- Max. Rolling Speed
- 190m/Min
- Max. Straightening&Cutting Speed
- 130m/Min
- Length
- 1-12m
- Steel Blanking Slide Length
- 28m
- Wire Aggregating Way
- Pneumatic Flattening
- Wire Collecting Way (Optional)
- Double Bench Type Take-up No Downtime, Recount
- Taking-up Weight
- 2.8t
- Speed Adjusting Way
- Frequency Inverter
- Cut off Error
- ±5mm
- Cutting Way
- Servo Cutting
- Main Machine Rate
- 100kw+11kw+2kw
- Mill Roller Diameter
- 228mm
- Transport Package
- Packing
- Specification
- 15000T
- Trademark
- chaoyi
- Origin
- Hebei, China
- HS Code
- 8463300000
- Production Capacity
- 20sets/Month
- Package Size
- 5500.00cm * 2200.00cm * 2200.00cm
- Package Gross Weight
- 27000.000kg
- Lead Time
-
35 days (1 - 1 sets)
To be negotiated ( > 1 sets)
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

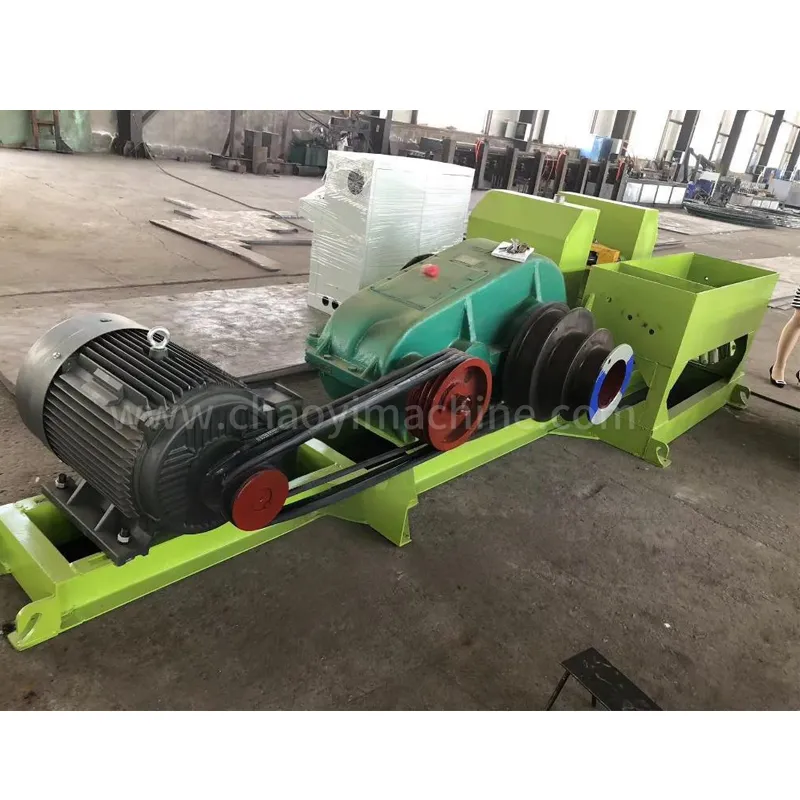

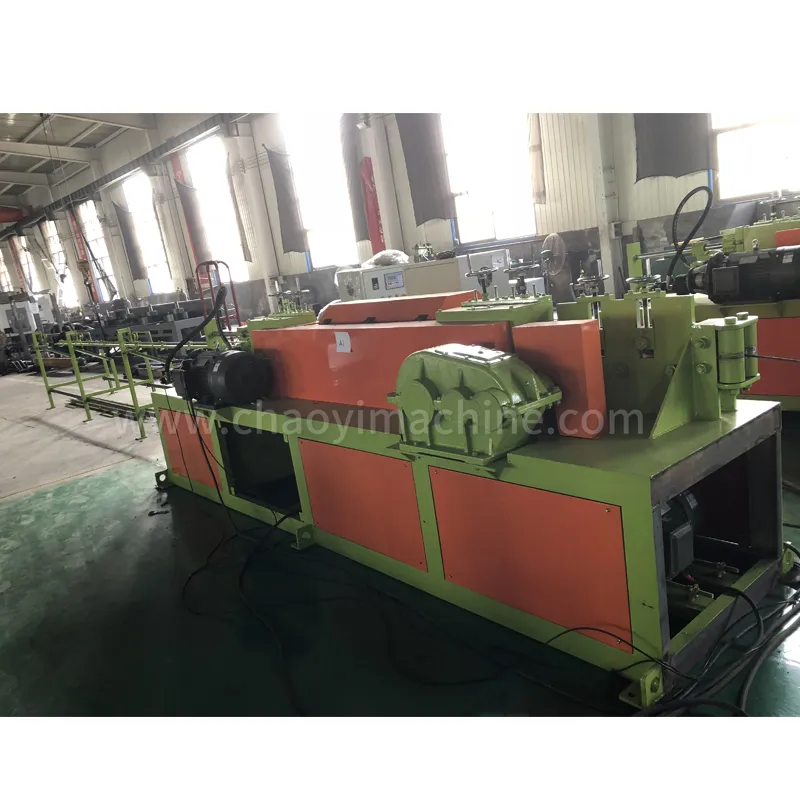

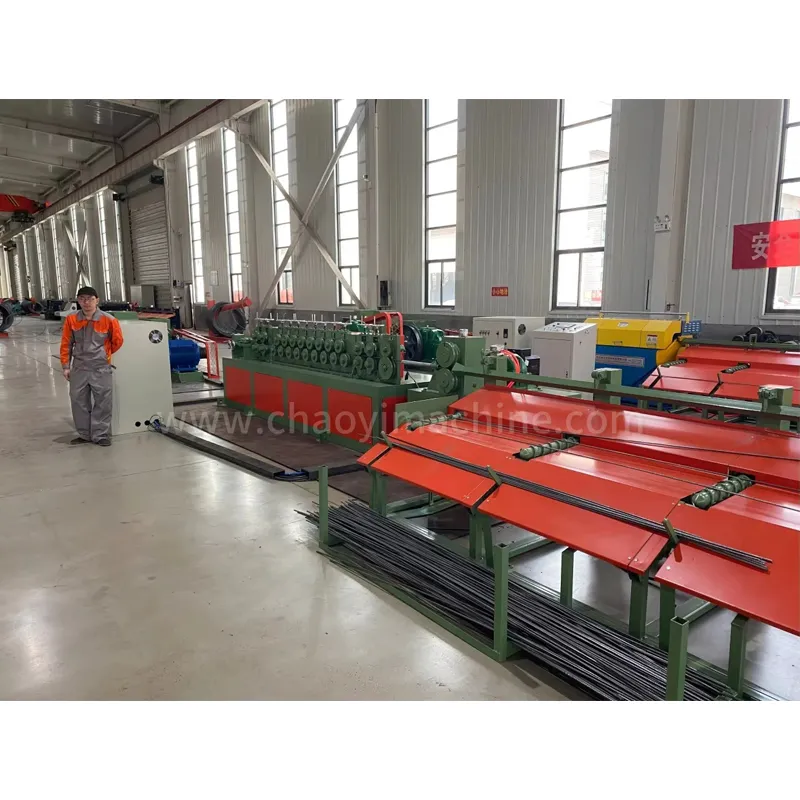

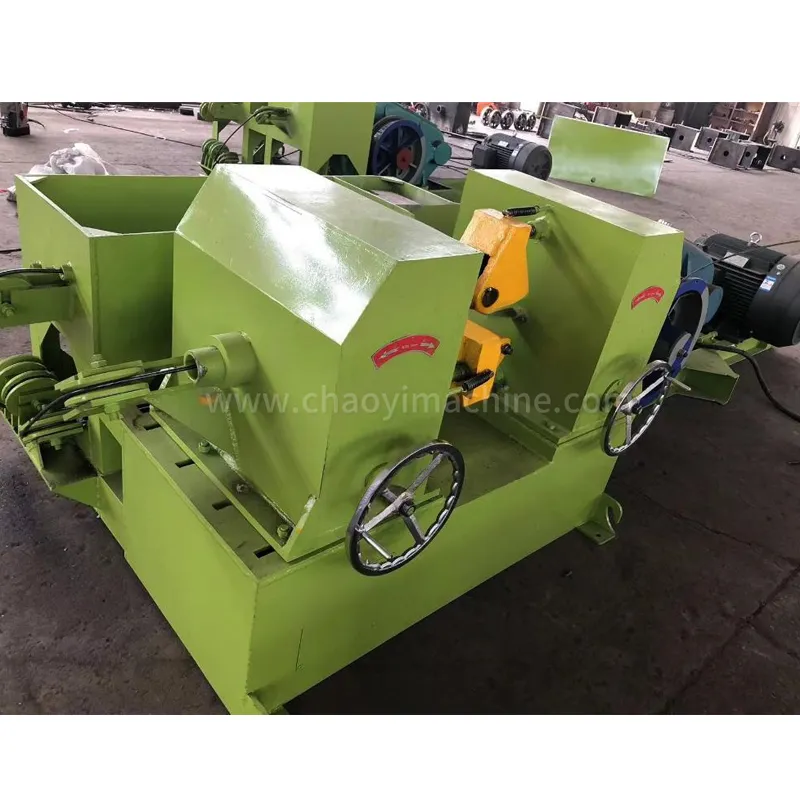

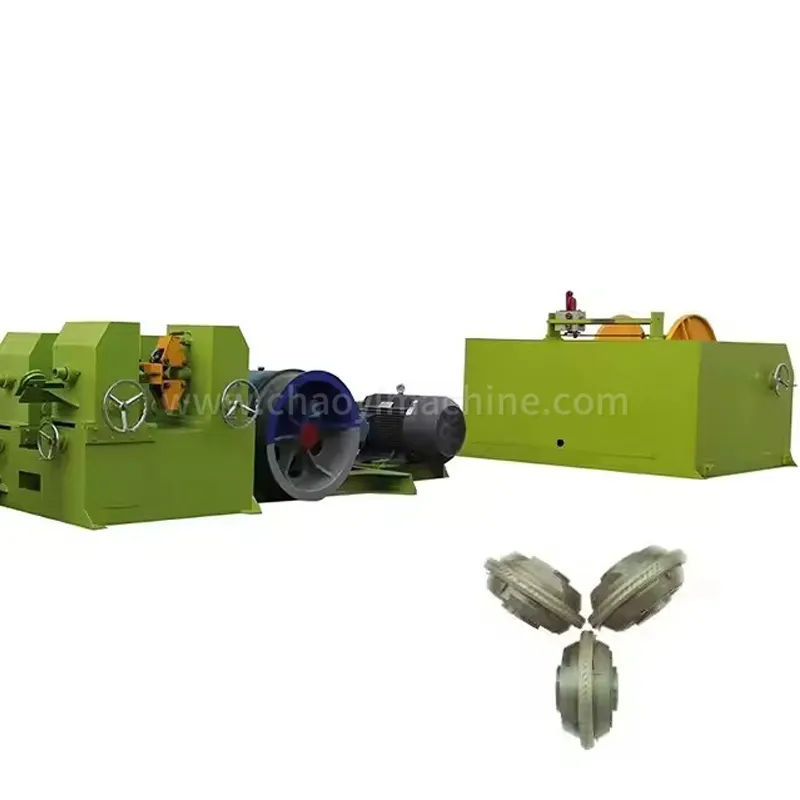

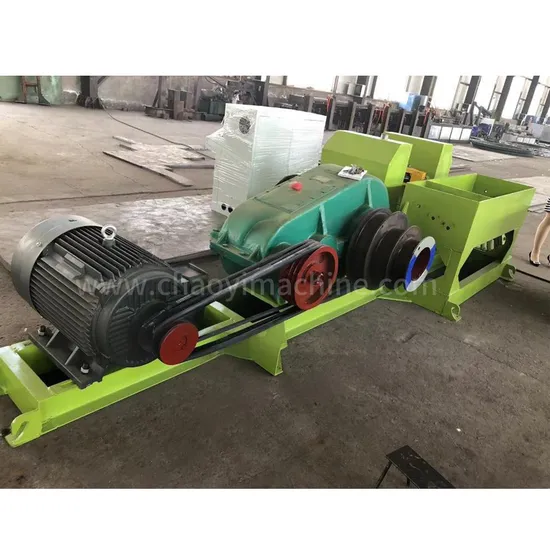

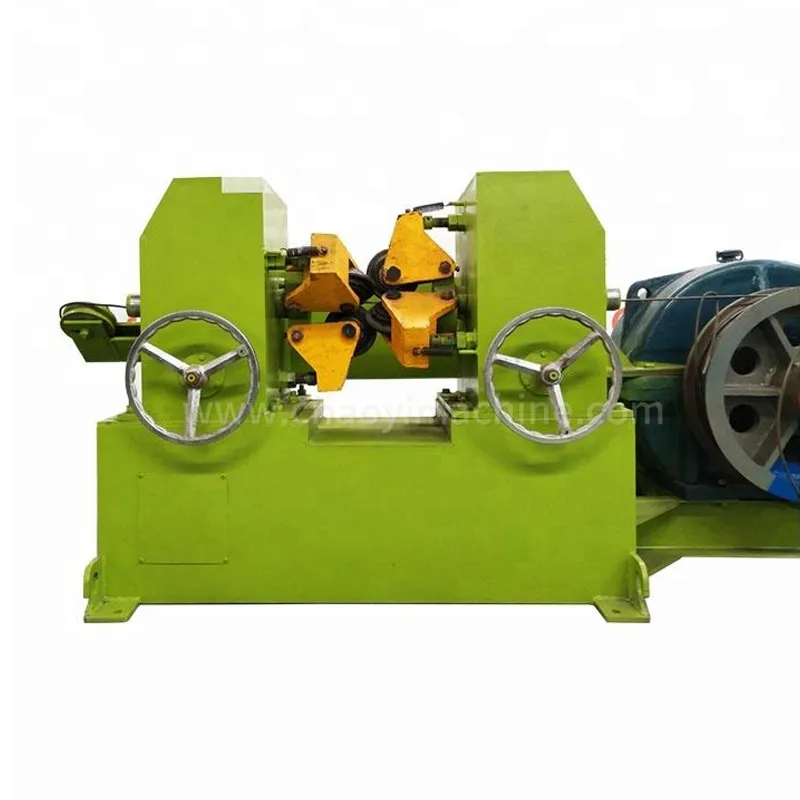

Product Images of Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine
-
Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine -
Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine -
Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine -
Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine -
Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine -
Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine -
Makes Ribs From Wire Rod Cold Rolling Ribbed Steel Bar Making Machine
Find Similar Products
Product Description
Makes Ribs From Wire Rod Ribbed Bar Making Machine
Ribbed Bar Making Machine, is also called cold rolling rebar making machine, cold rolled ribbed bar machine, cold rolling ribbed steel reinforced bar machine.
This Cold-rolled ribbed steel bar production line is to roll surface of steel coil round bar to form three crescent sides.
This production line mainly rolls diameter of 4-12mm and ordinary low carbon tray bar or low alloy tray bar with multiple cold rolling and a ribbing rolling, which finally forms reinforcing steel with three-side crescent shape ribs. The raw material is hot-rolled low carbon wire rod tray bar. It's widely applicable to highway, airport, irrigation works, city planning and construction engineering.
Production flow:
1. Wire pay-off --- 2. Rust remover ---3.Scaling and reducing wire machine --- 4. Wire milling machine --- 5. wire straightening machine --- 6.Turn over the wire
|
item
|
value
|
|
wire diameter (mm)
|
5-16mm
|
|
production capacity
|
1000kgs
|
|
power (kw)
|
30
|
|
machine type
|
wire making machine
|
|
weight (kg)
|
2000
|
|
warranty
|
1 Year
|
|
video outgoing-inspection
|
Provided
|
|
machinery test report
|
Provided
|
|
core components
|
Engine, Bearing, Gearbox, motor, Gear
|
|
place of origin
|
China
|
|
|
Hebei
|
|
brand name
|
chaoyi
|
|
model number
|
CY5-16
|
|
key selling points
|
Easy to Operate, High Safety Level, Eco-Friendly, High-accuracy, Competitive Price
|
Equipment maintenance:
(4) The Ribbed Bar Making Machine in the production process, can not be used beyond the limit, so as not to cause damage to some mechanical parts of the Ribbed Bar Making Machine, should be rolled according to the rolling standard, in order to ensure the safe use of the v equipment and the qualified products.
OUR SERVICE
♦ 24 hour technical support by e-mail and online
♦We offer installation and train the workers for the customers.
Payment term : Both T/T and L/C are acceptable.
Terms of trade : FCA,CFR,CIF ,DDP,EXW,DAP
Delivery time : Stock products 7days.
Customized or fabricated products 20days.
Packing method: By steel strips in bundles By wooden pallet
Delivery method : Sea & Train & Truck
Loading method: In bulk (Quantity over 200tons) 20ft
container: 25tons 40ft conatiner: 26tons
Why choose us:
*We supply steel products over 10 years, and we have our own systematic supply chain.
*We have a large stock with widly size and grades, your various requests could be coordinated in one shipment very fast within 10days .
*Rich export experience,our team familiar with documents for clearance, professional after sale service will satisfied your choice.
About the Supplier
This supplier has been audited by TÜV Rheinland. Verify the report on the official TÜV Rheinland website with ID "MIC-ASI256001". Items marked "
" are certified.
){kind=link}
Company Profile
HENGSHUII CHAOYI Intelligent Equipment Manufacture Co., Ltd established in 2013(The Original company name is Shenzhou Chaoyi Wire Mesh Equipment Co., Ltd-established in 2005). We are an automated wire mesh machinery company that serves the manufacturing industry and integrates independent research and development, manufacturing, and sales, our company is located in the Wire Mesh Industrial Zone of Shenzhou City, Hebei Province, with a total investment of over 300 million yuan, covering an area of over 80 acres and a building area of 38000 square meters, The company has more than 100 employees, including 15 senior technical talents and more than 30 people with a college degree or above. The company has its own research and development team, which continuously improves existing product models while investing a large amount of funds in the development of new products to meet the constantly changing market demand. At the same time, the company has collaborated with major universities in Beijing and Hebei to jointly develop automated wire mesh machinery, changing the traditional wire mesh weaving process and making significant progress in quality and appearance. This has also put the company in a leading position in the wire mesh machinery industry. Wire drawing machine, Hinge Joint fence machine, Stiff stay fence machine, Fixed Knot Fence Machine Manufacturer etc.
Our company has been continuously improving its products, adhering to innovation, and has been awarded titles such as "technology-based small and medium-sized enterprise, high enterprise""specialized and refined new technology enterprise", and has obtained more than 20 invention patents. HENGSHUII CHAOYI Intelligent Equipment Manufacture Co., Ltd has always adhered to the business philosophy of "integrity, pragmatism, innovation, and win-win", winning the trust of customers at home and abroad. Its products are not only sold throughout the country, but also exported to Southeast Asia, India, Africa, South America. Europe and other countries and regions.
Looks forward to becoming your loyal friend and partner, creating a mutually beneficial and win-win future together!
About Our Factory & Business Background
- Address
- Anping, Hebei Province, Hengshui, Hebei, China
- Terms of Payment
- LC, T/T, D/P, Western Union, Money Gram, PayPal
- International Commercial Terms(Incoterms)
- EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
- Average Lead Time
-
Peak Season Lead Time: one month
Off Season Lead Time: within 15 workdays - Nearest Port
- tianjin, ningbo, shanghai
Our Production Capability & Technical Expertise
Our Industry Experience & Global Business Record
- Export Year
- 2013-01-15
- Main Markets
- North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
FAQ
- What is the minimum order quantity for stock items?
- We do not have a minimum order quantity (MOQ) for stock cargos.
- What payment terms are accepted?
- Both T/T and L/C payment terms are acceptable.
- What are the delivery times for stock and customized products?
- Stock products are delivered within 7 days, while customized or fabricated products take 20 days.
- How are the products packed and shipped?
- Products are packed by steel strips in bundles or on wooden pallets. Shipping methods include sea, train, and truck.
- What is the loading capacity for containers?
- Loading is in bulk for quantities over 200 tons. A 20ft container holds 25 tons, and a 40ft container holds 26 tons.
- What after-sales services are provided?
- We offer 24-hour technical support via email and online, plus installation and worker training services.
- What is the warranty period for the machine?
- The machine comes with a 1-year warranty.
- What certifications does the product have?
- The product and manufacturing process are certified by ISO9001:2008 and BV.
