Portable Modern Multi-Function Relay Protection Performance Tester
Contact Supplier
Product Highlights
- 6-Phase Output Capability: Outputs 6-phase current (6x0-32A) and 4-phase voltage (4x0-300V) for comprehensive relay testing.
- Dual Test Modes: Supports both local testing via embedded LCD and remote PC control for flexible operation.
- Built-in Monitoring: Features real-time monitoring and unlimited recording of 6-phase current and 4-phase voltage without external wiring.
- 3-Year Warranty: Comprehensive 3-year warranty coverage with online technical support available.
- Portable Design: Compact dimensions (392x272x237mm) and lightweight (14.8kg) for easy portability in field applications.
- Customization Options: Offers full customization, minor customization, and flexible options based on samples or designs.
Product Attributes
- Customization
- Available
- After-sales Service
- on-Line Techinical Support
- Warranty
- 3 Years
- Model NO.
- Relaystar-H60
- Load Way
- Electronic Load
- Loading Method
- Dynamic Load
- Display
- Digital
- Control
- Computer Control
- Weight
- 0-100kg
- Power Source
- AC220V
- Current Output
- 6 Phases Max32A Per Phase
- Voltage Output
- 4 Phases Max 300V Per Phase
- AC Output Accuracy
- 0.05%
- Frequency
- DC-1200Hz
- Power
- 1X750va 3X400va 6X240va
- Harmonic
- 2~20 Times
- GPS
- in-Built
- Specification
- 420*360*210
- Trademark
- Relaystar
- Origin
- China
- HS Code
- 9030841000
- Production Capacity
- 5000platform/Year
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.
Product Images of Portable Modern Multi-Function Relay Protection Performance Tester
-

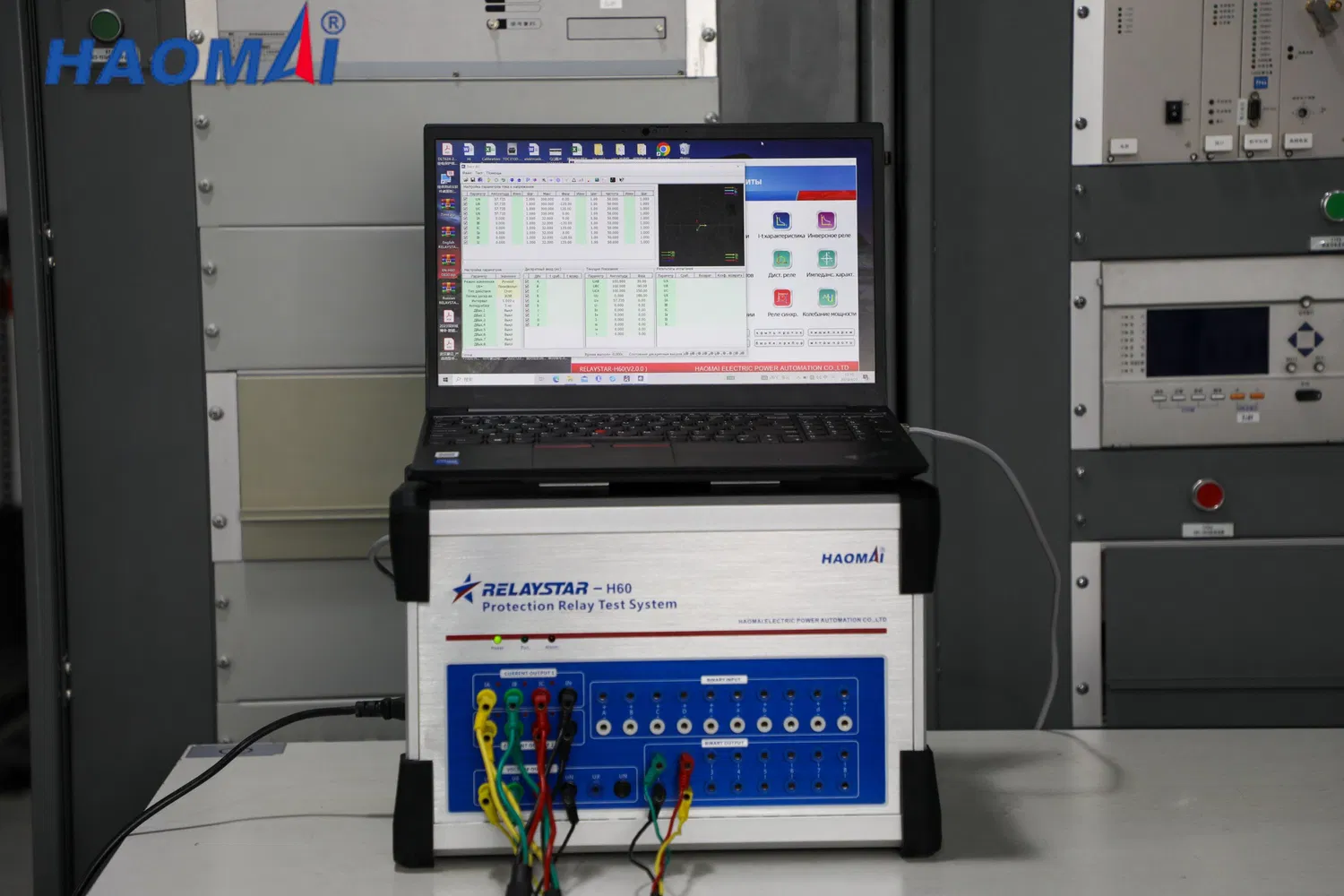

Portable Modern Multi-Function Relay Protection Performance Tester -

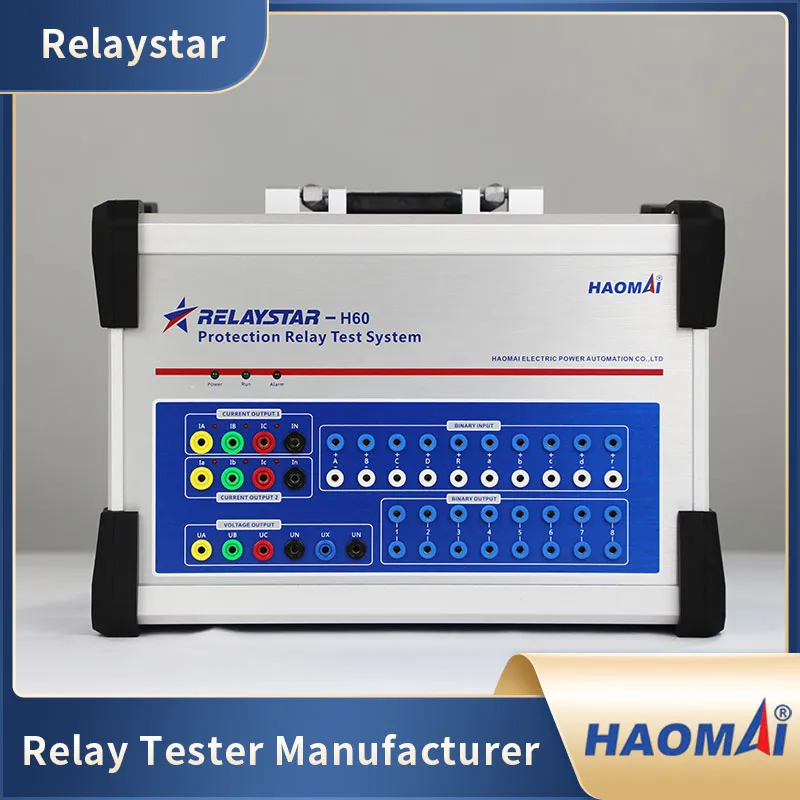

Portable Modern Multi-Function Relay Protection Performance Tester -
Portable Modern Multi-Function Relay Protection Performance Tester -
Portable Modern Multi-Function Relay Protection Performance Tester -
Portable Modern Multi-Function Relay Protection Performance Tester -
Portable Modern Multi-Function Relay Protection Performance Tester
Find Similar Products
Product Description

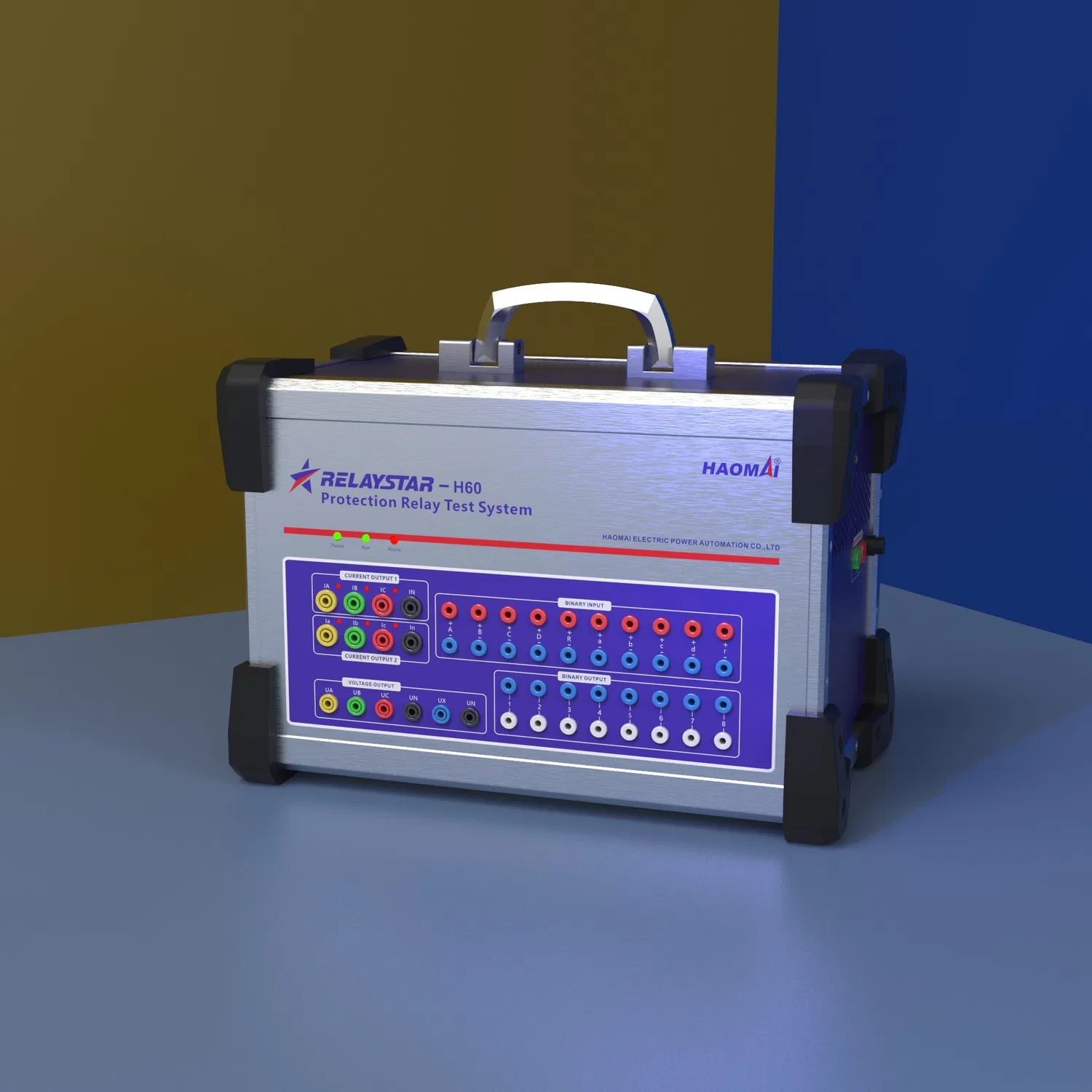

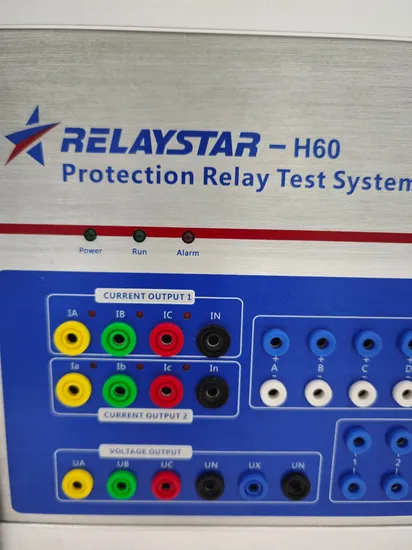

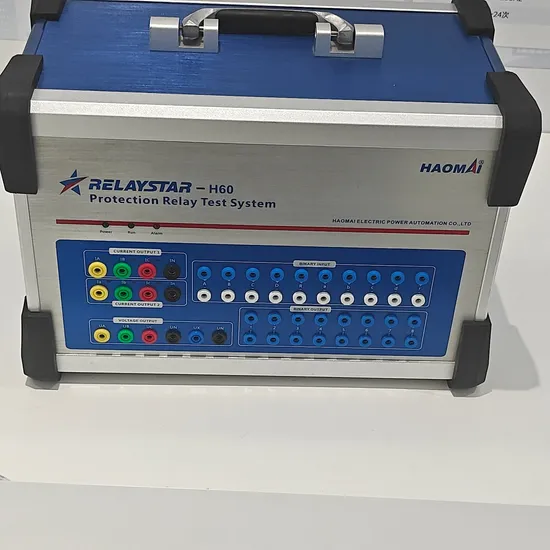

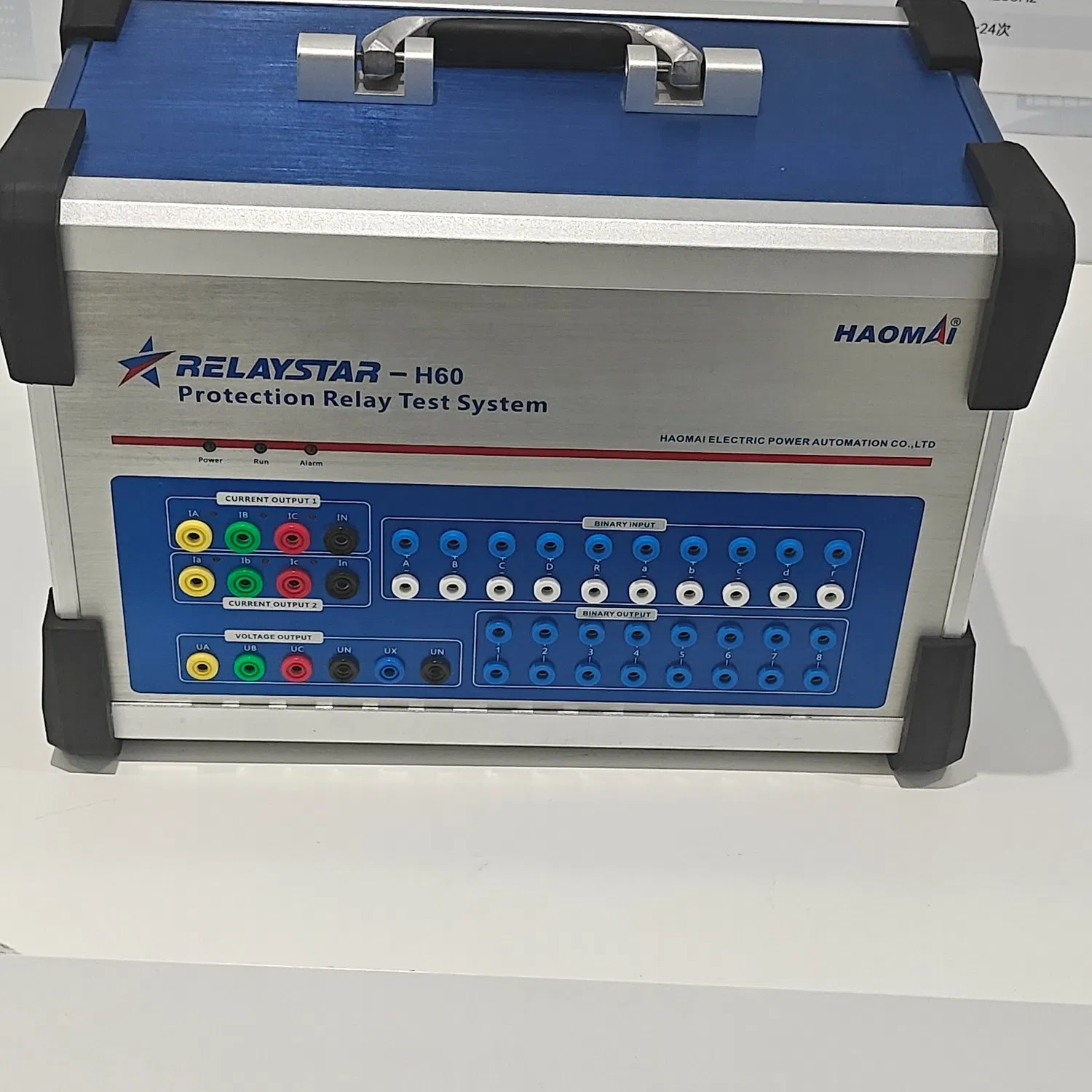

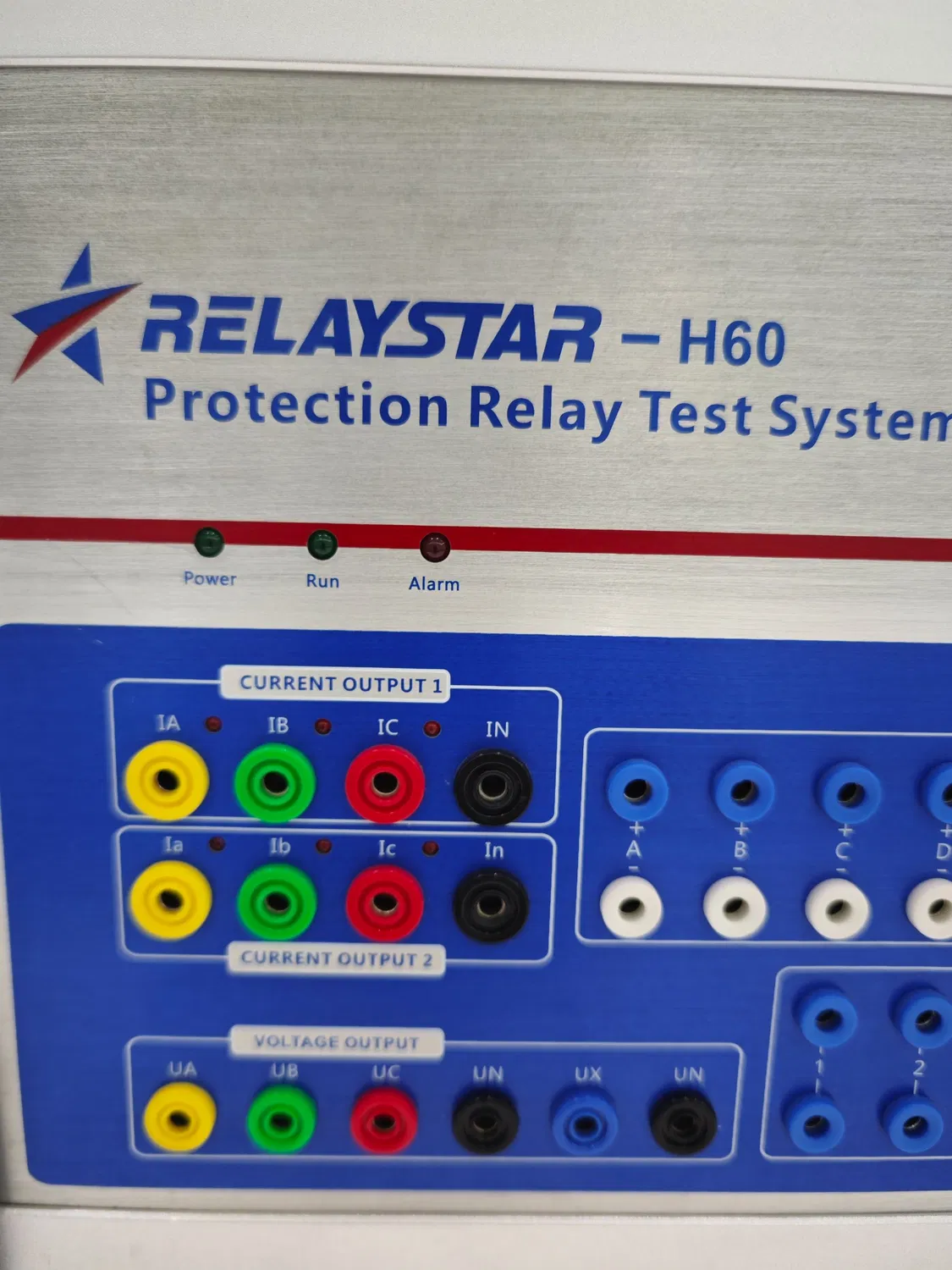

Model: RELAYSTAR-H60
