Small Horizontal Ribbon Blender for Lab Testing with Digital Control
Contact Supplier
Product Highlights
- High-Speed Mixing Efficiency: Two spiral 'S' type blades create counter-movement flows for even mixing in 3-15 minutes.
- Patent Air Leakproof Design: Prevents powder pollution with a patented air leakproof device for clean operation.
- Flexible Material Options: Available in 304/316L stainless steel, carbon steel, or coated parts for specific needs.
- Customizable Configurations: Options for heating, liquid spraying, choppers, and various discharge/feeding systems.
- Wide Application Range: Suitable for granules, liquids, powders, and agricultural chemicals in various industries.
- Certified Quality: CE and ISO certified ensuring safety and compliance for international markets.
- 24/7 Online Support: Round-the-clock technical support available for troubleshooting and assistance.
- Low Minimum Order: Minimum Order Quantity is just 1 set, ideal for lab testing and small batches.
Product Attributes
- Customization
- Available
- Additional Capabilities
- Milling
- After-sales Service
- 24 Hours 7days a Week Online Support
- Model NO.
- UFRM
- Application
- Granules, Liquid, Liquid with Suspended Solids, Powder
- Application Area
- Agricultural Chemicals
- Certification
- CE, ISO
- Condition
- New
- Stirring Type
- Gravity
- Working
- High Speed Mixer
- Material
- 304/316
- Ribbon Type
- Double
- Discharge
- Ball Valve/Direct/Pneumatic/Slide Gate
- Feeding Type
- Screw Conveyor/Vacuum Conveyor
- Mixer Type
- Double Ribbon Mixer
- Layout Type
- Horizontal
- Mixing Drum Shape
- Drum
- Operating Type
- Cycle Operating
- Warranty
- 12 Months
- Transport Package
- Sea Worthy Exporting Packing
- Specification
- customized as per working situation
- Trademark
- UNITFINE
- Origin
- China
- HS Code
- 8479820090
- Production Capacity
- 300 Set Per Year
- Package Size
- 580.00cm * 390.00cm * 1300.00cm
- Package Gross Weight
- 260.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

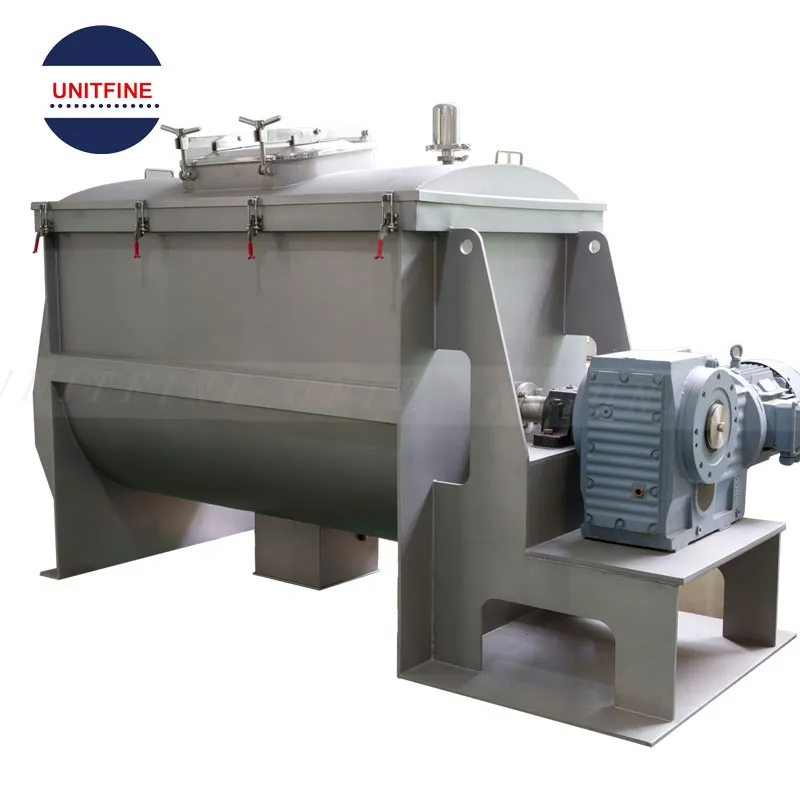

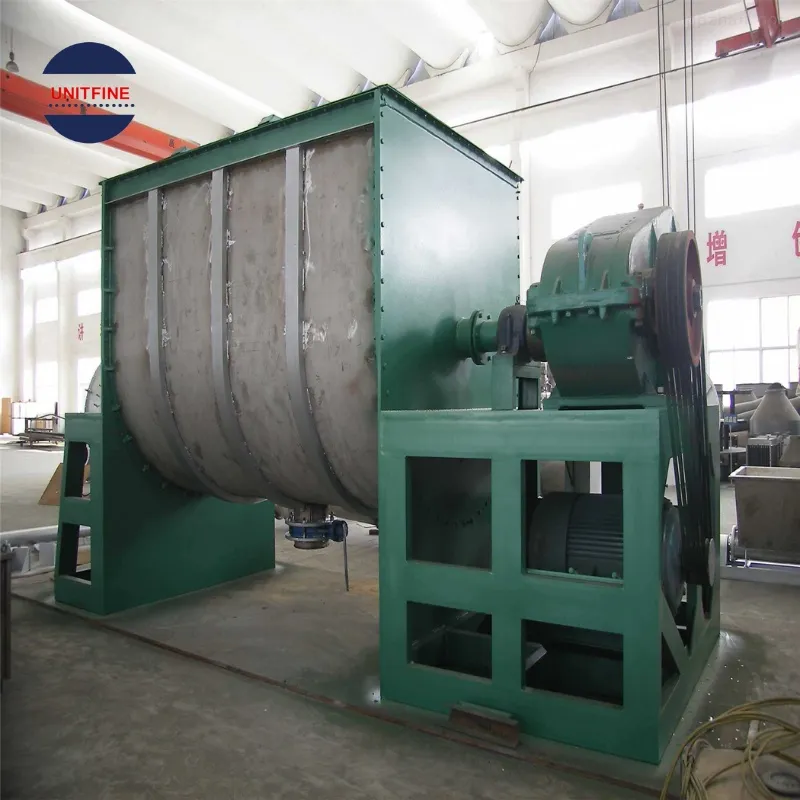

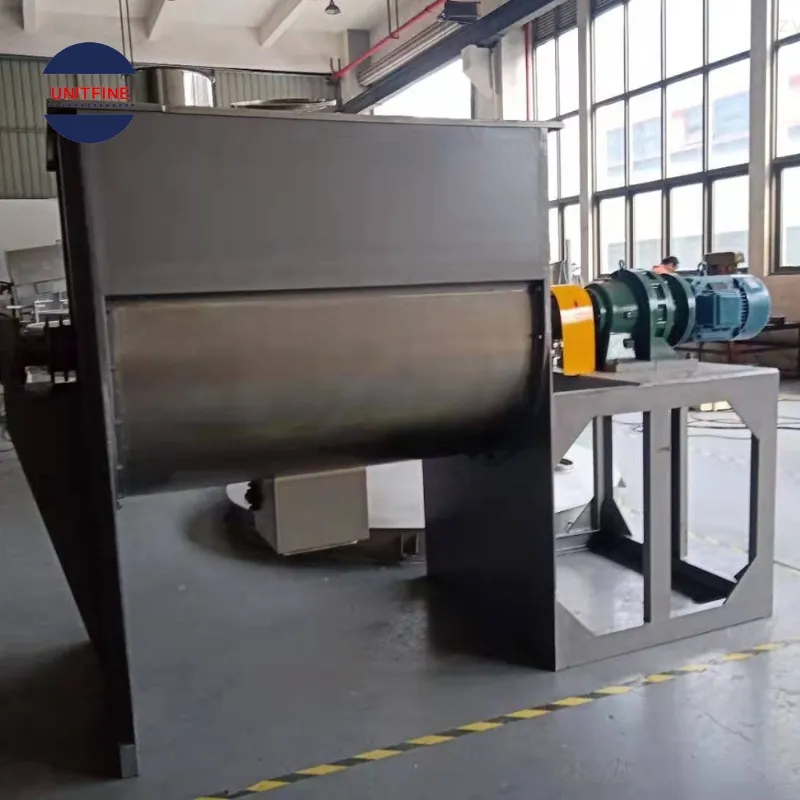

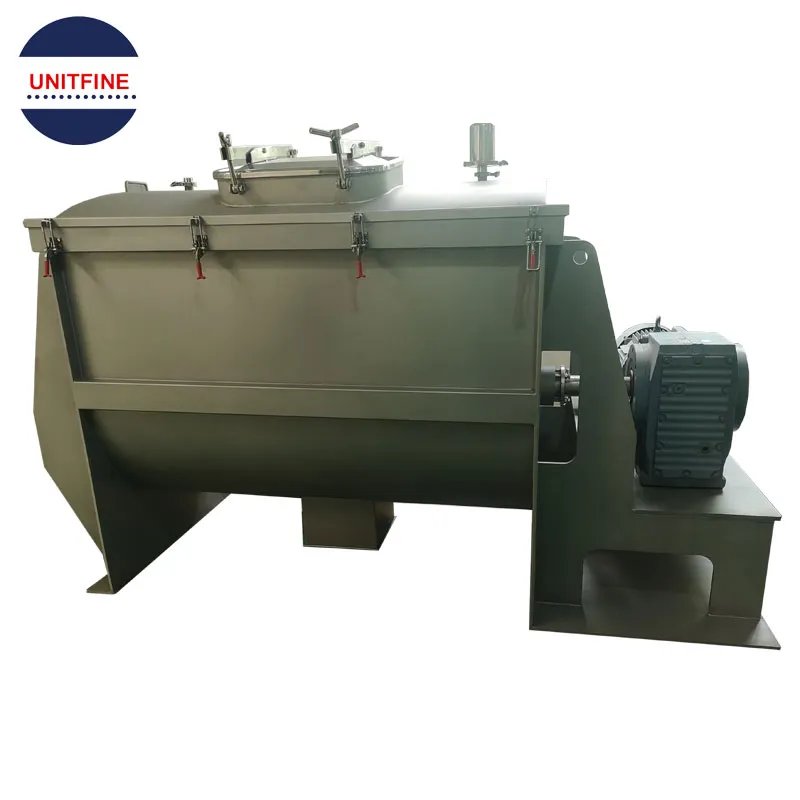

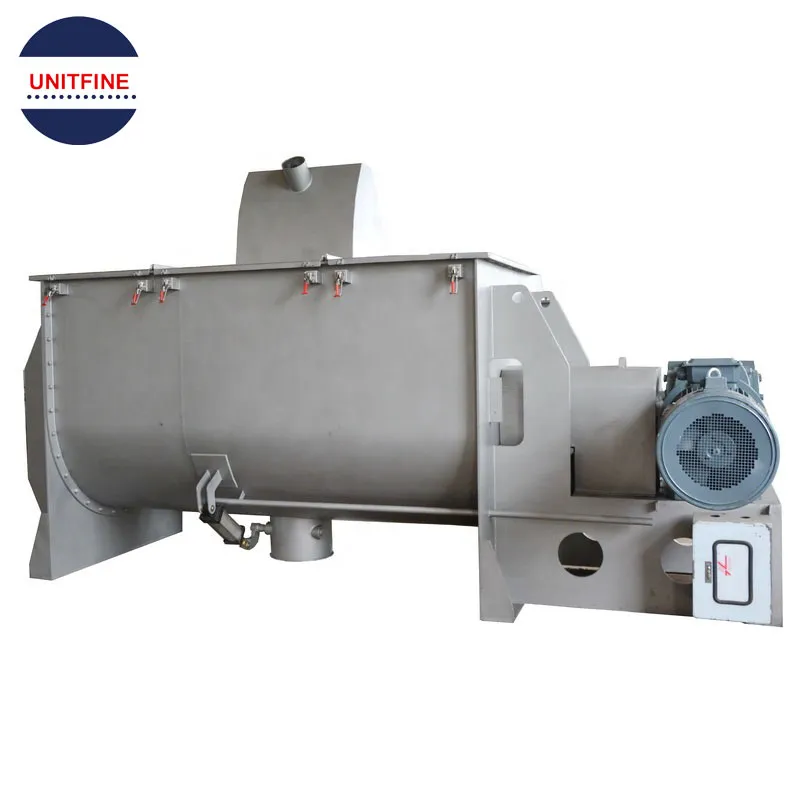

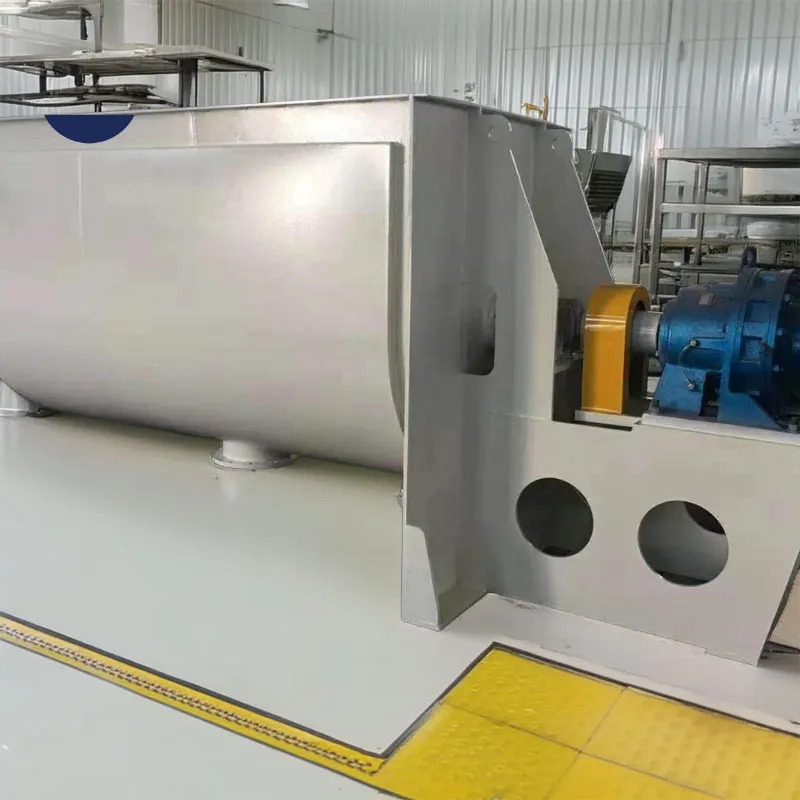

Product Images of Small Horizontal Ribbon Blender for Lab Testing with Digital Control
-
Small Horizontal Ribbon Blender for Lab Testing with Digital Control -
Small Horizontal Ribbon Blender for Lab Testing with Digital Control -
Small Horizontal Ribbon Blender for Lab Testing with Digital Control -
Small Horizontal Ribbon Blender for Lab Testing with Digital Control -
Small Horizontal Ribbon Blender for Lab Testing with Digital Control -
Small Horizontal Ribbon Blender for Lab Testing with Digital Control -
Small Horizontal Ribbon Blender for Lab Testing with Digital Control
Find Similar Products
Product Description
Introduction:
Ribbon mixer is widely used in chemicals, pharmacy, food, and construction materials industry, etc, which could be used for the mixing of powders, powders, and liquid, powders, and granules, etc.
Inside the mixer, there are ribbons in convective direction, inner and outer, up and down to even powder in a short time. Air leakproof device" is a patent design to prevent powder pollution. According to a particular powder, Heating system, Liquid Spraying system and a High-speed chopper can be installed in the mixer to solve the special mixing requirement.
Detailed Images>>>
Features:
- The mixing blade is two spiral "S" type designs.
- Excellent and high-speed mixing efficiency.
- The powder won't be raised mixing operation.
- Complete and through of raw materials by ribbon agitator which creates two layers and counter-movement of flows.
Model Selecting:
Generally, the ribbon mixer model is selected according to batch capacity.
- Batch capacity: 0.1-20 Cubic meter per batch.
- Batch capacity: 0.3-15 ton per batch.
- Mixing time: 3 to 15 minutes.
- Material available: Stainless steel 316L, 321, 304 and carbon steel.
Flexible Options for Clients:
- Materials available to be selected:
- Ribbon mixer could be made of mild steel, Manganese steel, stainless steel 304, 316L, 321, and others.
- To save cost we can use different materials in contacting parts and noncontacting parts.
- Inner parts could be coated with Preservative,anti-seize compound, wear-resisting agent, etc.
- Surface finish: Sandblast, brushed treatment, mirror gloss finish.
Models Available>>>
| Model | Volume (KG/L) |
Motor (HP) |
Dimensions (L*W*H Mm) |
| UFM-100 | 100/260 | 2 | 2210*600*1450 |
| UFM-200 | 200/500 | 3 | 2310*710*1660 |
| UFM-300 | 300/700 | 5 | 2310*900*1750 |
| UFM-500 | 500/1200 | 7 1/2 | 2790*960*1830 |
| UFM-1000 | 1000/2400 | 15 | 3420*1220*2150 |
| UFM-2000 | 2000/4800 | 25 | 3900*1350*2450 |
| UFM-3000 | 3000/6500 | 40 | 3700*1850*2803 |
| Height from floor to outlet: 450 mm | |||
How to select a ribbon mixer?
- Please tell the volume of batch products, range 0.1 to 20 cbm.
- Select material of the mixer, contacting products parts, and other parts, so please tell your own products working condition, sanitary requirements.
- Please tell specific gravity and flowability of your products, with which we would select a right motor for you.
- Please tell if you need any other auxiliary equipment, such as cool and warm keeping, spay etc.
- Please tell openings requirement of the mixer, such as feed inlet, cleaning windows, exhaust hole etc.
- Please tell discharge mode and driving system: manual, pneumatic or electric?
*Important notice: Model selection is a key step to get your solution, please provide your products information and production layout as detailed as you can, so that our engineers could find you the best solution.
Contact our engineers right now!
About the Supplier
This supplier has been audited by SGS. Verify the report on the official SGS website with ID "QIP-ASR249079". Items marked "
" are certified.
){kind=link}
Company Profile
Unitfine machinery could be traced back to 1990s in designing and producing vibrating sieves, vibrating feeders, screw conveyor, etc related with powdered products processing, after years of keep growing we had become into a solution provider for powder processing, could undertake turnkey project as well as part of a whole production line with our own fabricated equipment and well subcontracting or outsourcing components. We are persistent to further prolong life, reduce weight, and simplify operations in order to achieve high efficiency, productivity, reliability, and lower carbon footprints.
Unitfine Team
Working with Chinese manufacturers you will soon find a very wide difference in mentalities, technical level and business maturity, which could cause you a lot of embarrassments and problems
We are a team of dedicated engineering and commercial profeessionals with over 30 years experience in machinery and working with international companies.
Our team is specialized in industrial products and working with the most potential manufacturers in China, we make sure that your requirements are correctly understood and implemented. We make sure that the quality level and delivery time will matched.
Main Products
A. Separating and Sieving equipment:
-Rotary vibrating sieve/screener/separator
-Linear Vibrating screen
-Gyratory screener(Utex type)
-Flow-through vibrating sieve
-Ultrasonic vibrating screen
B. Materials Handling system
-Tubular Conveyor
-Screw Conveyor
-Vibrating Feeder
-Vibrating elevator
-Belt conveyor
C. Drying Equipment
-Rotary Dryer(Kiln)
-Double Cone Vacuum Dryer
-LPG Industrial Spay Dryer
-PGZ Series Industry Continous Plate dryer
-Vacuum Tray Dryer
-Fzg Low Temperature Vacuum Dryer
D. Granulators
-QZL Balling Granulator
-FL Serie Fluid Bed Granulator
-GHL Rapid Mixing Granulator
-YK Oscillating Granulator
E. Pulverizers/Mill
-Multifunctional Grinder
-Ultrafine mill
-Air jet mill
-Ball mill
F. Packing Machine
-Automatic Carton Packing Line
-Carton Erector & bottom Sealer
-Automatic Carton Filler
-Carton Sealer
-Roller conveyor
-Flexible conveyor
Quality Control
Unitfine select suppliers and subcontractors according to very strict quality criterias. We guarantee that all quality procedures and standards are kept according to the technical designs and the quality requirements of our customers.
We control the quality of the products and the various steel structures in agreement with European quality standards.
Unitfine is committed to provide highest quality solutions to our clients' various needs. Backed with over 30 years of experience and technical knowledge in manufacturing, Unitine has assisted many in achieving higher quality products and cost saving through highly efficient operations.
We are devoted to excellence and will continue to further innovate and improve Unit-Fine's equipment. It is our commitment to create and maintain lasting relationship through superior products that add value to your company.
About Our Factory & Business Background
-
Business Type
- Trading Company
- Address
- 528, 5th Floor, Zhenzhong Business Building, 264 Xiangyang Road, High-tech Zone, Xinxiang City.
-
Plant Area
- 60 square meters
-
Number of Employees
- 7
-
Terms of Payment
- LC, T/T
-
International Commercial Terms(Incoterms)
- CIF, CFR, EXW
-
Average Lead Time
-
Peak Season Lead Time: 1-3 months
Off Season Lead Time: one month -
Nearest Port
- Shanghai Port, Qingdao Port
-
Minimum Order Quantity
- 1 Set
-
Supply Chain Partners
- 6
Our Production Capability & Technical Expertise
-
Main Products
- Vibrating Screen, Vacuum Conveyor, Pulverizers, Tube Chain Conveyor, Drying Equipment, Mixers, Rotary Cone Mixer, Vacuum Tray Dryer, Ultrasonic Generator, Tumbler Sifter
-
Customization Options
- Full Customization, Flexible customization
-
ODM Service Available
- Yes
-
OEM Service Available
- Yes
-
R&D Engineers
- 1 people
Our Industry Experience & Global Business Record
-
Year of Establishment
- 2017-06-15
-
Export Year
- 91410700MA442QME4U
-
Main Markets
- North America, South America, Europe, Southeast Asia/ Mideast
-
Repeat Buyers Choice
- 50%~80%
-
Number of Foreign Trading Staff
- 1
-
Overseas Agent/Branch
- No
-
New Products Launched in Last year
- Yes
Our Certifications, Standards & Industry Recognition
-
Cooperated with Fortune 500
- No
FAQ
- What materials are available for the ribbon mixer?
- The mixer can be made from mild steel, manganese steel, stainless steel 304, 316L, 321, or carbon steel. Contacting parts can be customized with coatings like preservative or anti-seize compounds.
- What is the batch capacity range?
- The batch capacity ranges from 0.1 to 20 cubic meters per batch, or approximately 0.3 to 15 tons per batch, depending on the model selected.
- How long does the mixing process take?
- The mixing time typically ranges from 3 to 15 minutes, ensuring high-speed and efficient mixing of powders, liquids, and granules.
- Can the mixer be customized for specific requirements?
- Yes, full customization is available. Options include heating systems, liquid spraying systems, high-speed choppers, and various discharge modes like ball valve or pneumatic systems.
- What is the minimum order quantity (MOQ)?
- The minimum order quantity is 1 set, making it suitable for lab testing and small-scale production needs.
- What after-sales service is provided?
- We provide 24 hours 7 days a week online support to assist with any technical issues or inquiries regarding the equipment.
- What certifications does the product have?
- The ribbon mixer is certified with CE and ISO standards, ensuring compliance with international safety and quality regulations.
- What is the lead time for production?
- The average lead time is 1 month during the off-season and 1-3 months during the peak season.
