Wire and Cable Rigid Frame Stranding Machine Twisting Machine
Contact Supplier
Product Highlights
- High-Speed Stranding Capability: Frame speed up to 194.1rpm for 12 reels and 171.0rpm for 18 reels.
- Wide Wire Diameter Range: Handles copper wires from 1.5mm to 5.0mm and aluminum from 1.8mm to 5.0mm.
- Flexible Stranding Pitch: Adjustable pitch range from 38.5mm to 799.5mm depending on reel configuration.
- Dual Inverter Power Control: Equipped with advanced dual inverter system for stable motor performance.
- Siemens Motor Standard: Uses high-quality Siemens motors for reliable operation and efficiency.
- Comprehensive Warranty: Includes 12 months warranty coverage for all mechanical defects.
- Online and On-Site Support: Provides both remote guidance and on-site installation services globally.
- Full Factory Testing: Machines undergo 100% visual and functional inspection before delivery.
Product Attributes
- Customization
- Available
- After-sales Service
- Online/on Spot
- Driven Type
- Electric
- Model NO.
- SAM-RFS
- Condition
- New
- Certification
- ISO, CE
- Warranty
- 12 Months
- Automatic Grade
- Automatic
- Mould Life
- >1,000,000 Shots
- Type
- High-speed Stranding Machine
- Motor
- Siemens
- Single Wire Diameter
- 1.2-5mm
- Capstan Wheel Diameter
- 2000mm
- Pay-off Bobbin in Cage
- 630mm
- Main Motor Power
- 132kw,AC,380V,50Hz
- Central Height of Machine
- 1500mm
- Power Control
- Dual Inverter
- Max Stranded Diameter
- 45mm
- Central Pay-off Bobbin
- 630mm
- Take-up Bobbin
- 1250mm-2500mm
- Stranding Pitch Range
- 65-1125mm
- Transport Package
- Wooden/Plastic Wrap
- Specification
- 42m(L)*5(W)*3(H)
- Trademark
- SAM
- Origin
- Guangdong
- HS Code
- 8479400000
- Production Capacity
- 10 Sets/Month
- Package Size
- 999.00cm * 99.00cm * 160.00cm
- Package Gross Weight
- 99.000kg
Shipping
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

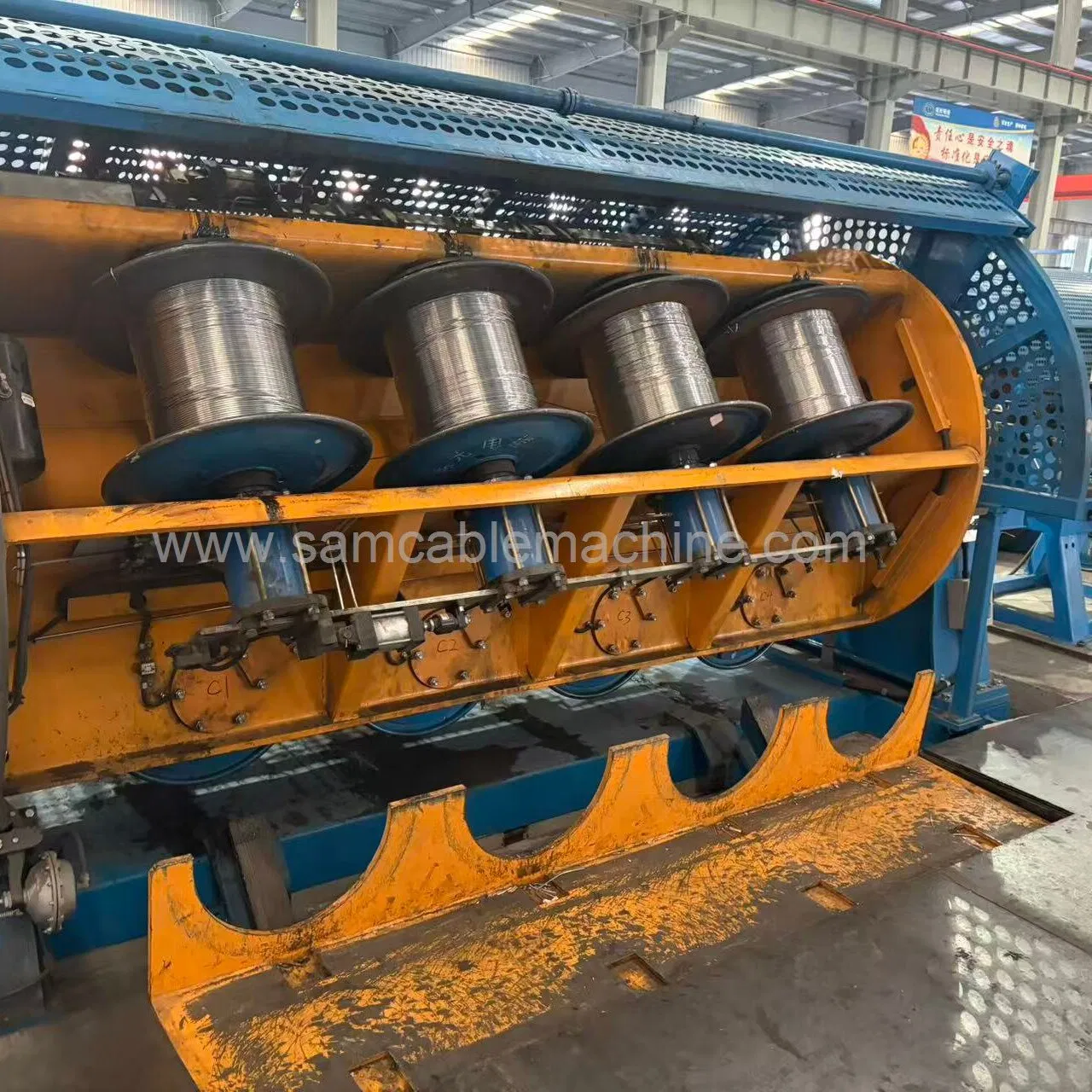

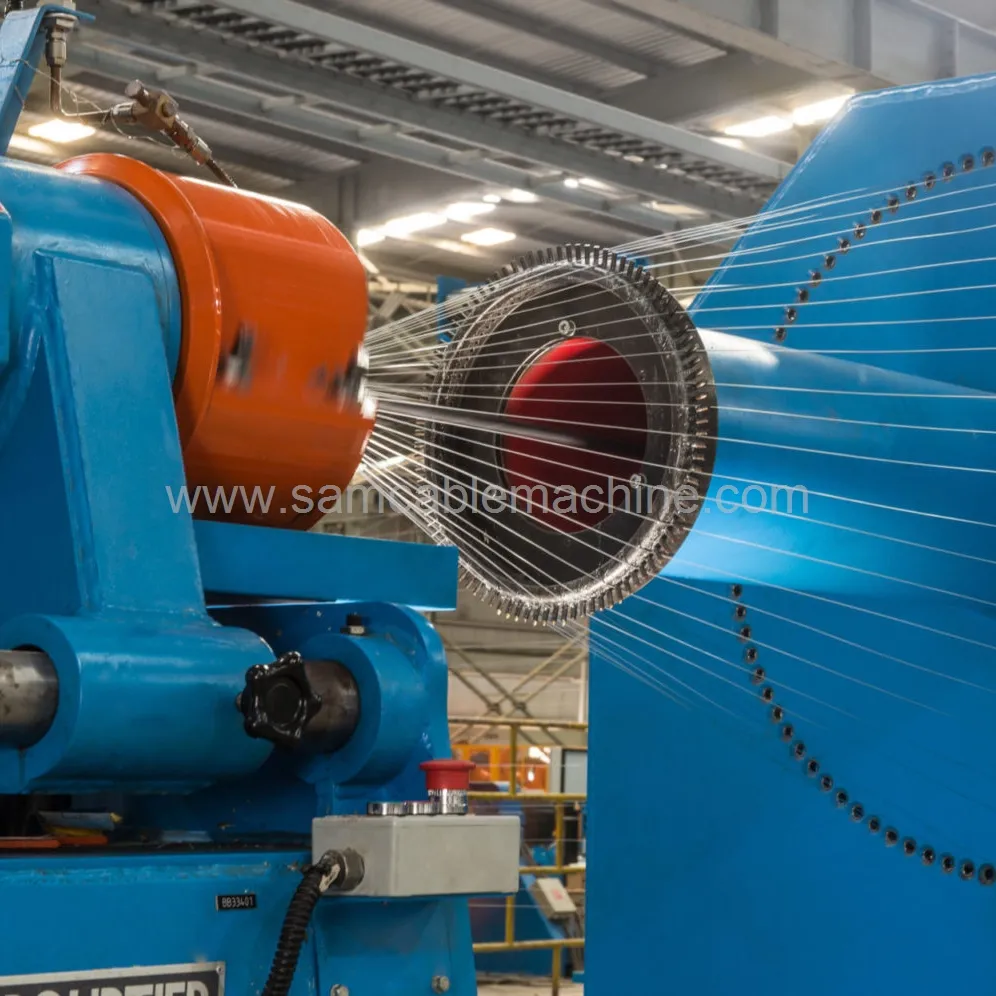

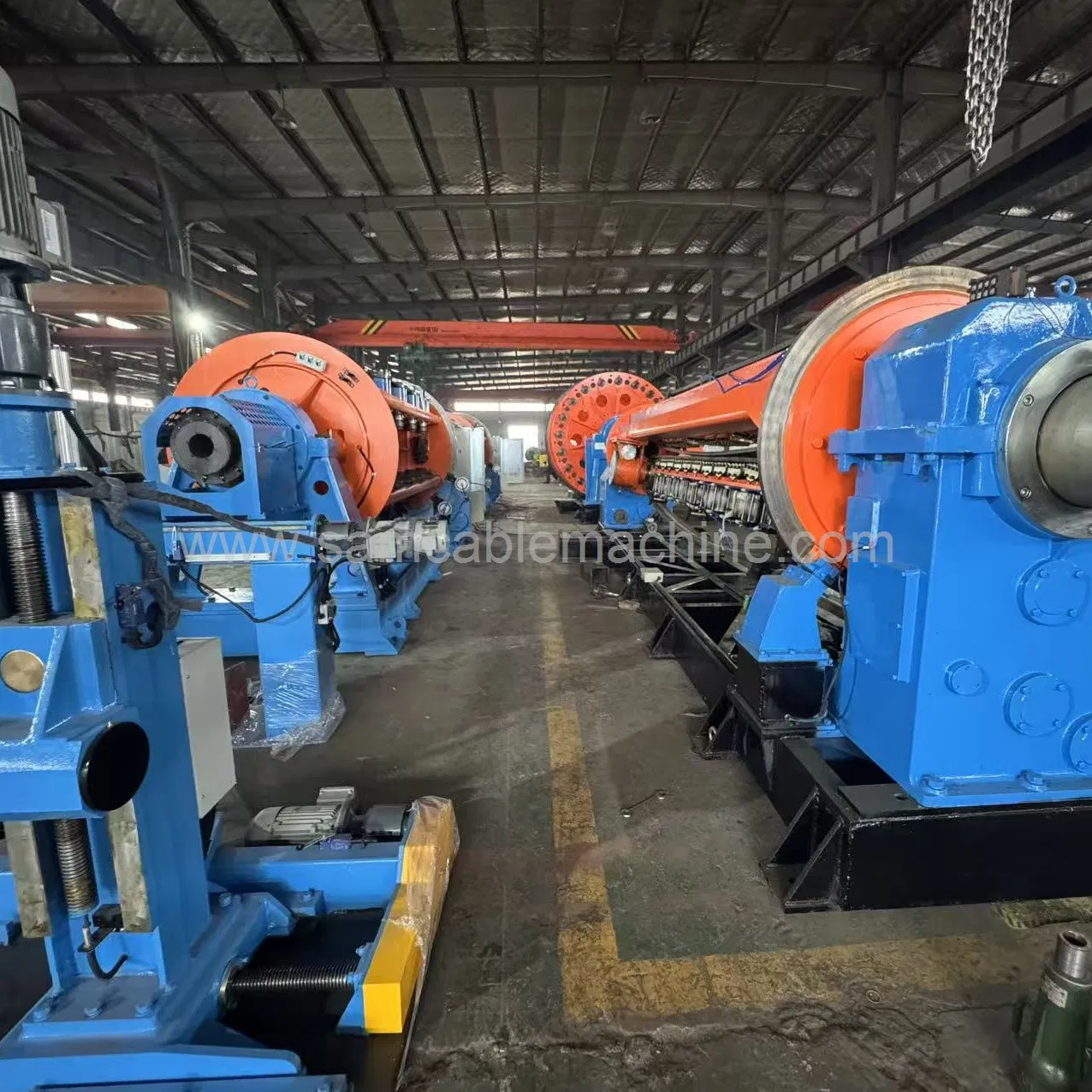

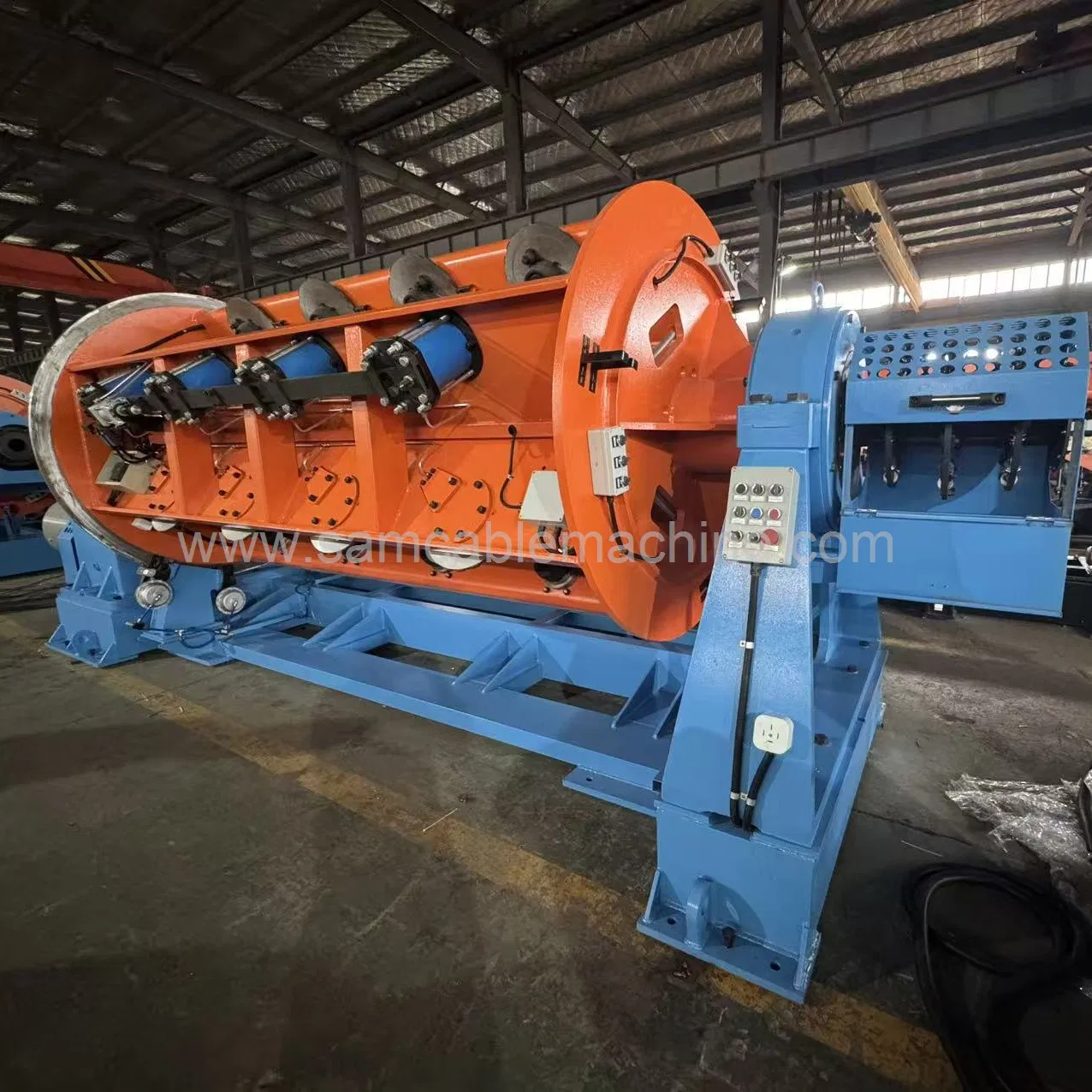

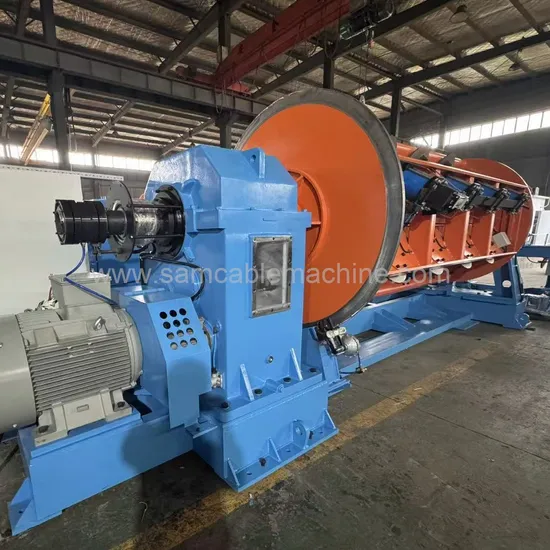

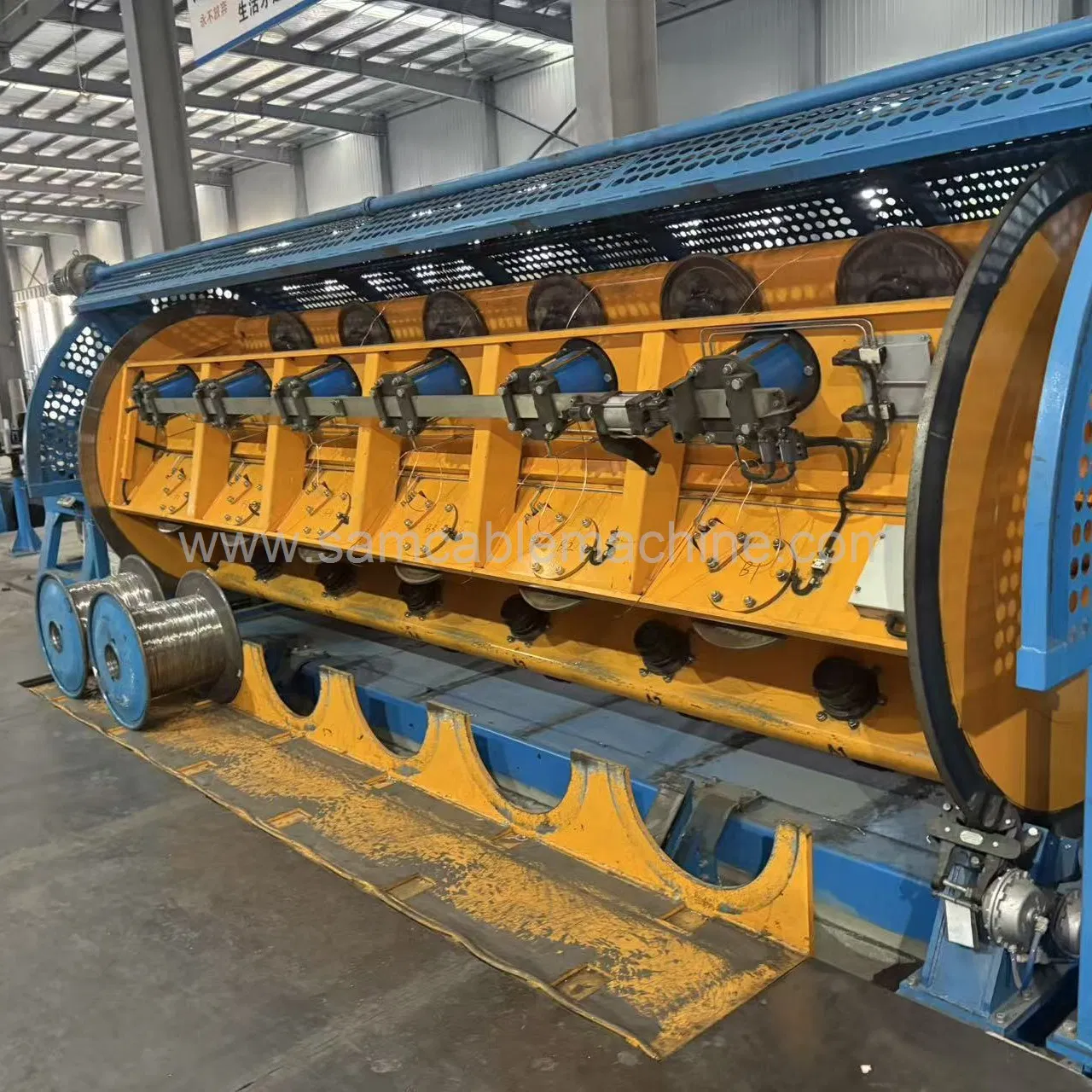

Product Images of Wire and Cable Rigid Frame Stranding Machine Twisting Machine
-
Wire and Cable Rigid Frame Stranding Machine Twisting Machine -
Wire and Cable Rigid Frame Stranding Machine Twisting Machine -
Wire and Cable Rigid Frame Stranding Machine Twisting Machine -
Wire and Cable Rigid Frame Stranding Machine Twisting Machine -
Wire and Cable Rigid Frame Stranding Machine Twisting Machine -
Wire and Cable Rigid Frame Stranding Machine Twisting Machine -
Wire and Cable Rigid Frame Stranding Machine Twisting Machine
Find Similar Products
Product Description
500 1+12+18 Rigid Frame Stranding Machine | ||
No. | Item | Parameter |
2.1 | Stranding single wire diameter | Copper: Φ1.5 ~ Φ4.5mm Aluminum: Φ1.8 ~ Φ5.0mm |
2.2 | Maximum stranding outer diameter | Φ45mm |
2.3 | Frame speed | 12 reels: 107.1-194.1rpm 18 reels: 94.3-171.0rpm |
2.4 | Stranding pitch | 12 reels: 38.5-572mm 18 reels: 43.7-649mm |
2.5 | Traction line speed | 7.48~61.2m/min (56 types) |
2.6 | Pay-off reel specification in frame | PND500mm |
2.7 | Central pay-off reel specification | PN800-PN1600mm |
2.8 | Take-up reel specification | PN1600-PN2500mm |
2.9 | Main motor power | 55kW (DC motor) |
630 1+12+18+24 Rigid Frame Stranding Machine | ||
No. | Item | Parameter |
2.1 | Stranding single wire diameter | Copper: Φ1.5 ~ Φ5.0mm Aluminum: Φ1.8 ~ Φ5.0mm |
2.2 | Maximum stranding outer diameter | Φ45mm |
2.3 | Frame speed | 12 reels: 94.1 ~ 170.7r/min 18 reels: 83.0 ~ 150.6r/min 24 reels: 73.2 ~ 133.0r/min |
2.4 | Stranding pitch | 12 reels: 42.7 ~ 622mm 18 reels: 47.6 ~ 704.7mm 24 reels: 53.9 ~ 799.5mm |
2.5 | Traction line speed | 7.16 ~ 58.56m/min |
2.6 | Traction sheave diameter | Φ2000mm |
2.7 | Pay-off reel specification in frame | PND630 |
2.8 | Central pay-off reel specification | PND630 |
2.9 | Take-up reel specification | PN1600 ~ PN2500 |
2.1 | Main motor power | 132kW (DC motor) |
2.11 | Equipment center height | 1000mm |
The company provides production equipment and productionsupporting schemes such as upward casting machine, wiredrawing machine Series, annealer machine, extrusion machine,stranding machine, and bunching machine.
About the Supplier
This supplier has been audited by SGS. Verify the report on the official SGS website with ID "QIP-ASI262115". Items marked "
" are certified.
){kind=link}
Company Profile
Shenzhen Sam Electrical Technology Co., Ltd. is located in Nanshan District, Shenzhen (a top GDP region in China), with production facilities in Dongguan and Jiangsu. Our core competitiveness lies in one-stop turnkey services for the wire and cable industry, including plant construction, raw material supply, equipment layout, testing laboratory construction and cable packaging. We have long been committed to helping customers obtain high-quality products at competitive prices.
A key strength is our comprehensive, high-quality product and solution system. We provide reliable core production equipment (upward continuous casting machines, wire drawing machines, annealing machines, extrusion machines, stranding machines, bunching machines, etc. ) and customized supporting solutions to ensure seamless integration of equipment and processes, maximizing production efficiency and product quality. For example, we customized a solution for a Southeast Asian railway cable client to meet extreme climate and strict technical requirements, optimizing insulation processes with professional equipment. This helped the client supply qualified cables for a Belt and Road light rail project, achieving a 99.8% product qualification rate.
Since establishment, we have adhered to the philosophy of "Providing customers with satisfactory equipment and first-class services". With a professional technical team and rich industry experience, we have served clients in hundreds of regions worldwide (Middle East, South Africa, Europe, Southeast Asia, etc. ), establishing long-term strategic partnerships. For instance, we provide continuous technical support and maintenance for a North African eco-friendly cable enterprise, helping it reduce production costs by 15% and improve efficiency by 20% through process optimization and intelligent monitoring.
Unlike ordinary equipment suppliers, our integrated services (from project planning to after-sales support) enable us to quickly address customer needs, solve production pain points, and create higher added value. A notable case: For an African client troubled by high raw material costs and outdated processes, we provided a full set of equipment, a centralized procurement system and production management experience, cutting raw material costs by 8% and realizing digital transformation of production lines, laying a solid foundation for its market expansion and grid upgrading projects.
About Our Factory & Business Background
- Address
- B303 Building 2, Phase 1, Software Park, Nanshan District, Shenzhen, Guangdong, China
-
Plant Area
- 98 square meters
-
Registered Capital
- 1,000,000 RMB
-
Terms of Payment
- LC, T/T, D/P, PayPal, Western Union, Small-amount payment
-
International Commercial Terms(Incoterms)
- CIF, CFR, EXW
-
Average Lead Time
-
Peak Season Lead Time: one month
Off Season Lead Time: one month -
Nearest Port
- shenzhen port
-
Minimum Order Quantity
- 1 set
-
Supply Chain Partners
- 15
Our Production Capability & Technical Expertise
-
Main Products
- wire and cable plant construction, cable raw material supply, cable equipment layout, cable testing laboratory construction, and wire and cable packaging
-
QA/QC inspectors
- 1 people
-
Inspection Type for Finished Products
- 100% inspection(Visual inspection & Function inspection)
-
Inspection Method for Finished Products
- Finished product checked by packing staff
-
Customization Options
- Customization from Designs, Full Customization, Minor Customization, Flexible customization
-
ODM Service Available
- Yes
-
R&D Engineers
- 1 people
-
Traceability of Raw Materials
- Yes
Our Industry Experience & Global Business Record
-
Year of Establishment
- 2022-08-11
-
Export Year
- 4 years
-
Main Markets
- Europe
-
Repeat Buyers Choice
- < 10%
-
Number of Foreign Trading Staff
- 3
-
Overseas Agent/Branch
- No
-
New Products Launched in Last year
- Yes
FAQ
- Who are we?
- We are based in Guangdong, China, supply wire and cable making machine with cable making solution.
- Can I visit your factory?
- Domestic and foreign customers are warmly welcome to contact us to visit our factory at anytime.
- Do you provide installation and commissioning services?
- Yes, we can provide the whole production solution service, including installation, commissioning, etc. If there are entry restrictions, we have a mature team to provide professional online installation guidance.
- What information should I provide to get a detailed quotation from you?
- For a single machine: Usually we need to know the inlet wire size, outlet wire size, productivity, pay-off and take-up wire size to be produced to select the appropriate machine.For a new cable plant or a new cable production line, we need to know the data sheet of the cable to be produced, the productivity, the standards to be followed, etc., in order to design all the machines required.
- Can we test the machine at your factory?
- Yes, we provide a comprehensive test service before delivery, with engineers to answer questions and hand over the equipment for operation.
