Enterprise Router Netengine 8000 M4 Integrated Chassis Components
Contact Supplier
Product Highlights
- High Switching Capacity: 2.4 Tbit/s bidirectional switching capacity for enterprise network performance.
- Modular Architecture: 8 slots with 6 DC or 2 AC service board slots for flexible expansion.
- Redundant Power & Fans: 1+1 redundant power supply and fan modules ensure continuous operation.
- Wide Input Voltage Range: Supports DC -40V to -72V and AC 90V to 290V for diverse power environments.
- High Availability: DC availability up to 0.999998291 with 33.4 years MTBF.
- Comprehensive Port Support: Supports up to 96 electrical ports, 12 100GE, and 72 10GE ports.
- Flexible Power Options: Available in both DC and AC power supply modes with integrated chassis.
- OEM & ODM Services: Customization available from samples and designs with professional support.
Product Attributes
- Customization
- Available
- Type
- Enterprise Router
- Network Site
- Border Router
- Model NO.
- NetEngine 8000 M4
- Transfer Rate
- 1/10/100 Gbps
- Firewall
- Without Firewall
- Ports
- 8
- Port Structure
- Modular
- Application
- Enterprise
- Network
- Enterprise Network
- Performance
- Line-Rate Router
- Architecture
- Crossbar System
- Use
- Router
- Warranty
- 1 Year
- Description
- Netengine 8000 M4 Integrated Chassis Components
- Power Supply Mode
- DC, AC
- Number of Slots
- 8
- Number of Service Board Slots
- DC: 6 AC: 2
- Switching Capacity [BPS,Bit/S]
- 2.4 Tbit/S (Bidirectional)
- CPU
- 16-Core, 2.0 GHz
- Storage
- 16 GB
- Flash Memory
- 64MB
- Transport Package
- Mail Box Packing
- Specification
- 8.89cm(2U) x 44.2cm x 22cm
- Trademark
- HW
- Origin
- Hubei, China
- Production Capacity
- 100 Piece/Pieces Per Month
- Package Size
- 44.20cm * 22.00cm * 8.89cm
- Package Gross Weight
- 10.400kg
Shipping
- Shipping Cost:
- Contact the supplier about freight and estimated delivery time.
Online Trading Protection
- Payment Guarantee
-
Platform-protected payments with refund support for eligible order issues.
- Platform Logistics
- Clearer shipment tracking with platform-supported logistics.
- Inspection Service
- Optional pre-shipment inspection for quality and quantity checks.
- After-Sales & Dispute Handling
- Platform-assisted dispute resolution, including refunds or returns when applicable.
Only orders placed and paid through Made-in-China.com Secured Trading are eligible for payment protection and the corresponding platform services.

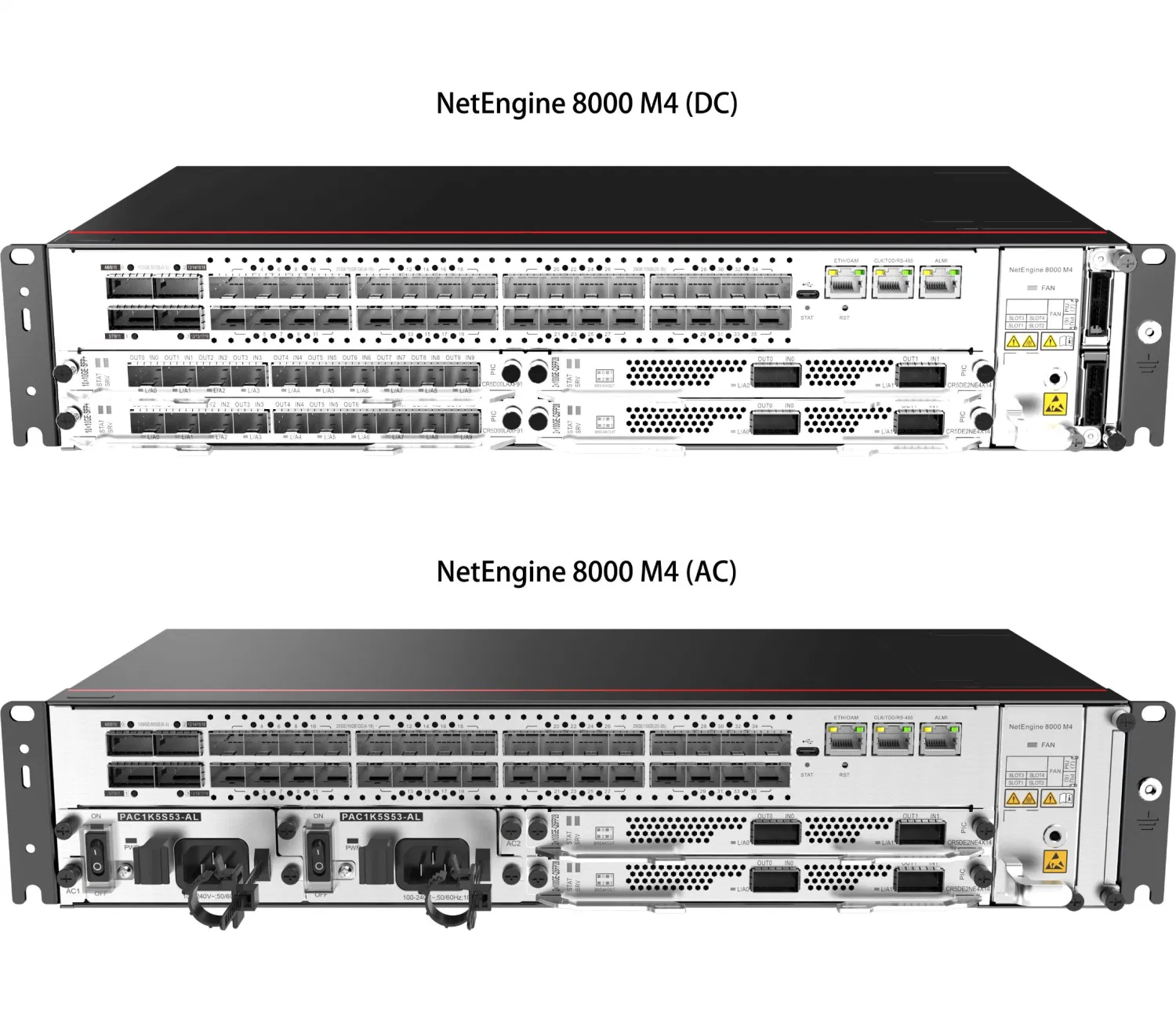

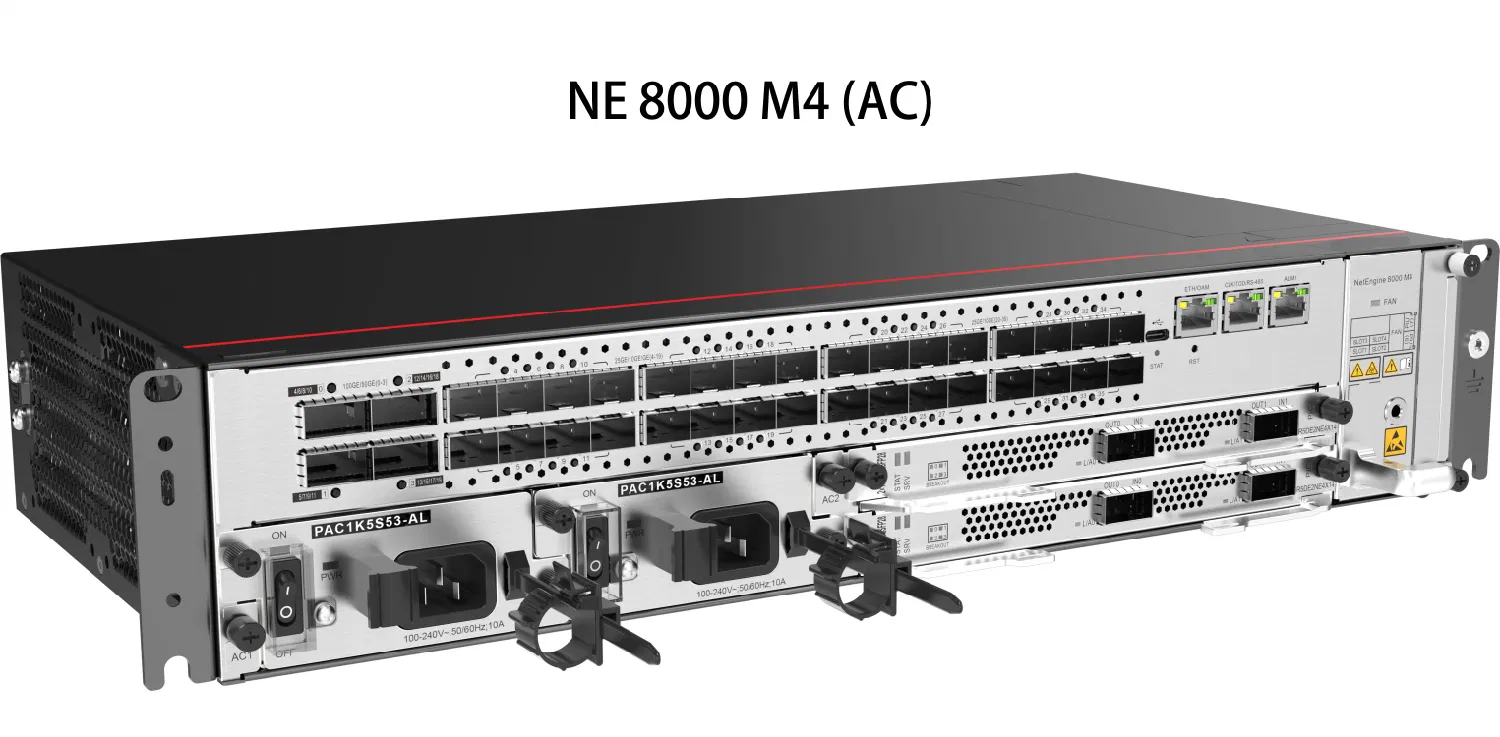

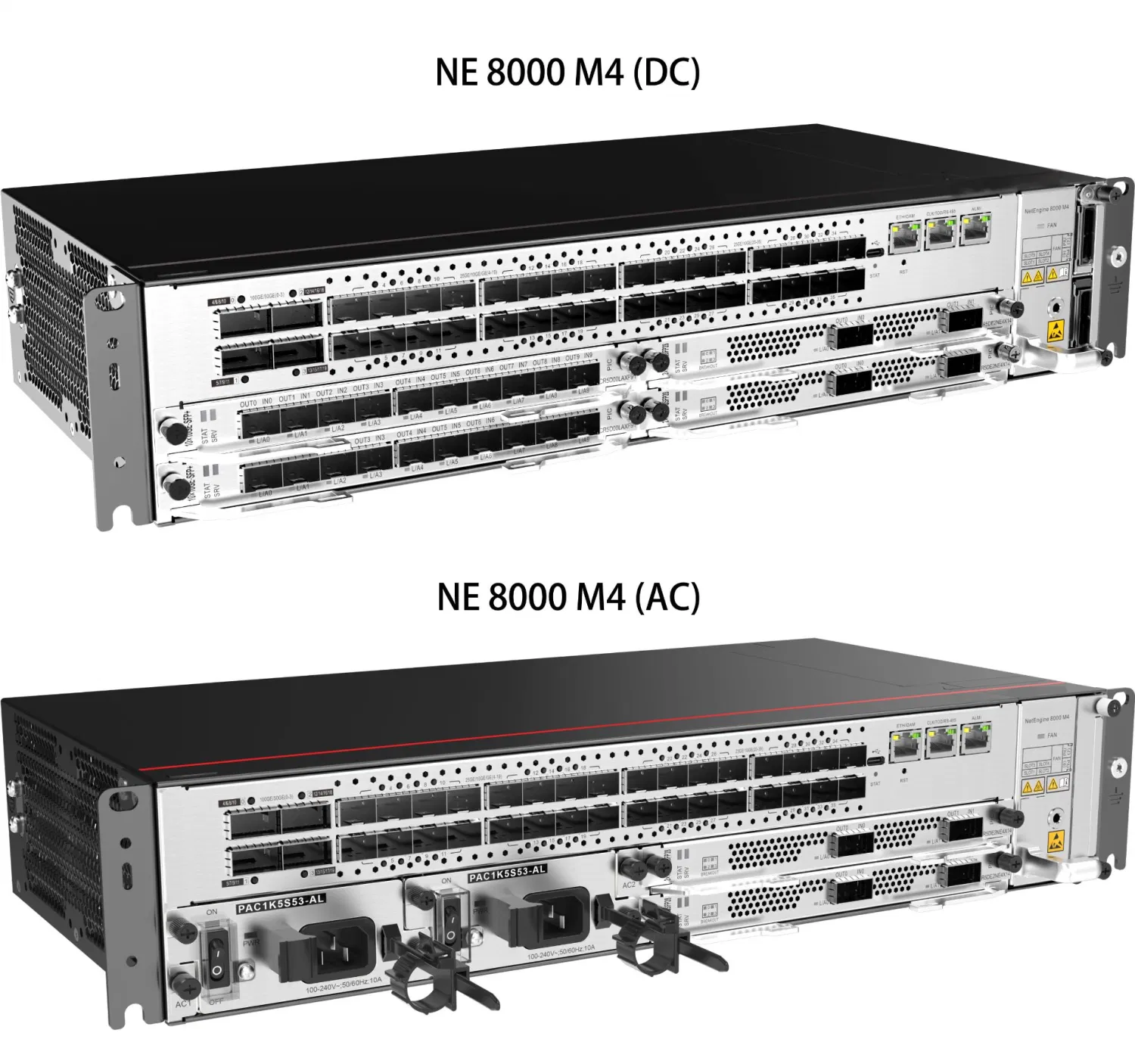

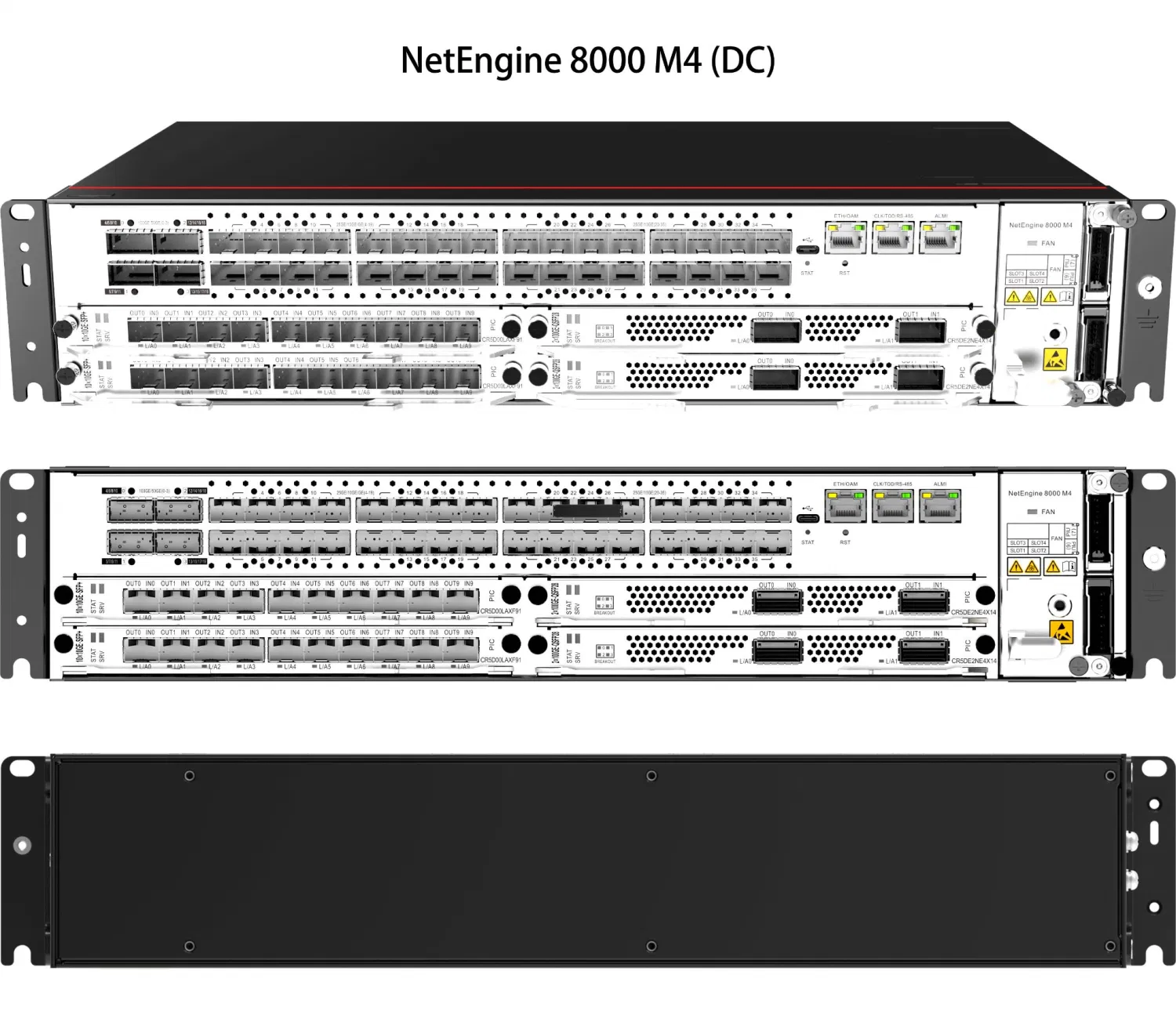

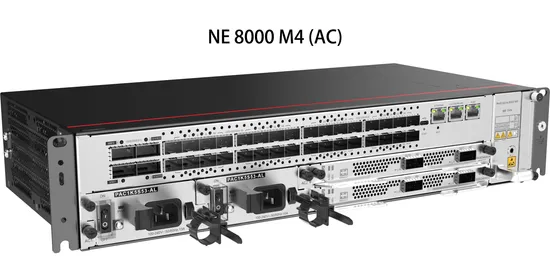

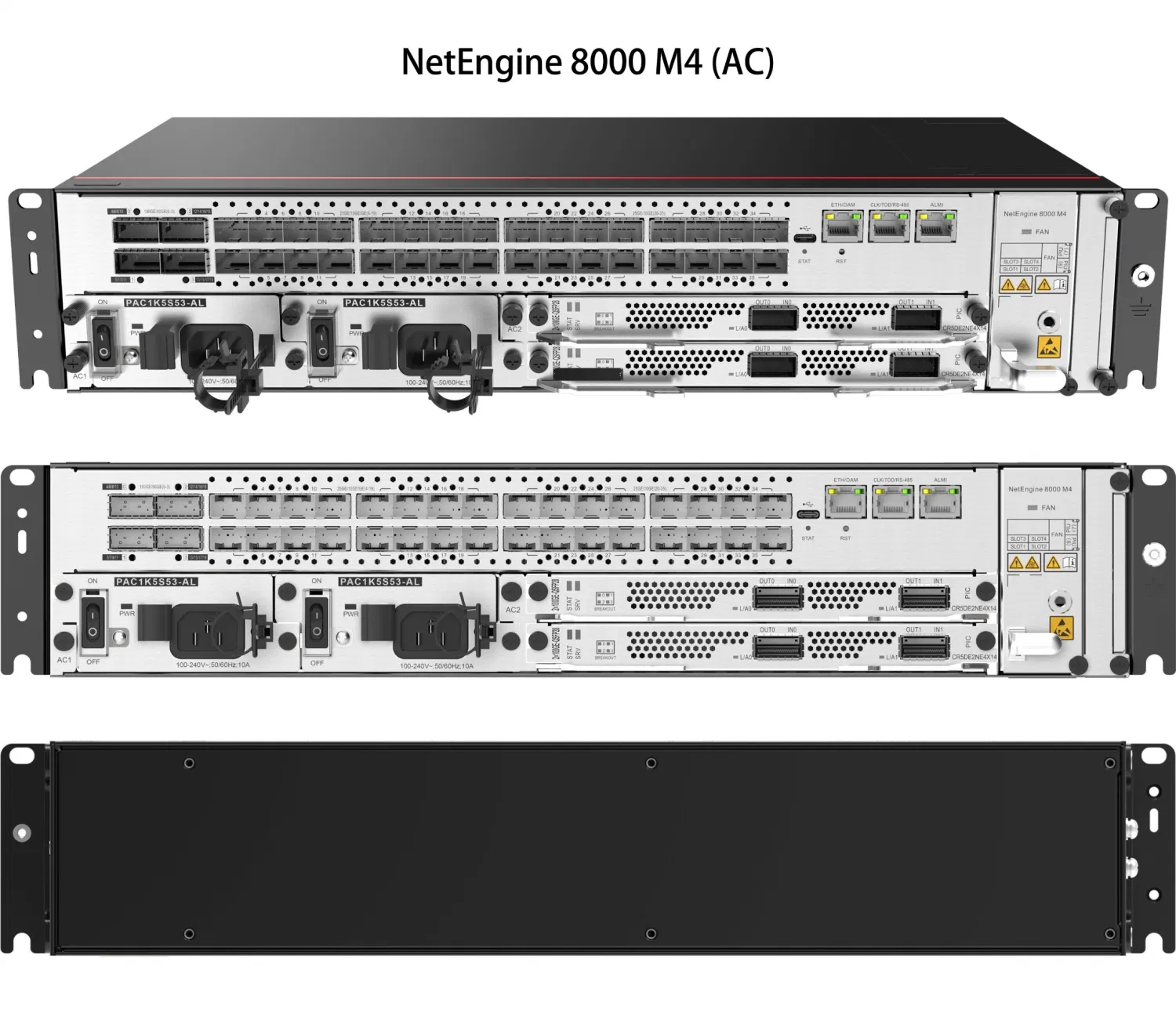

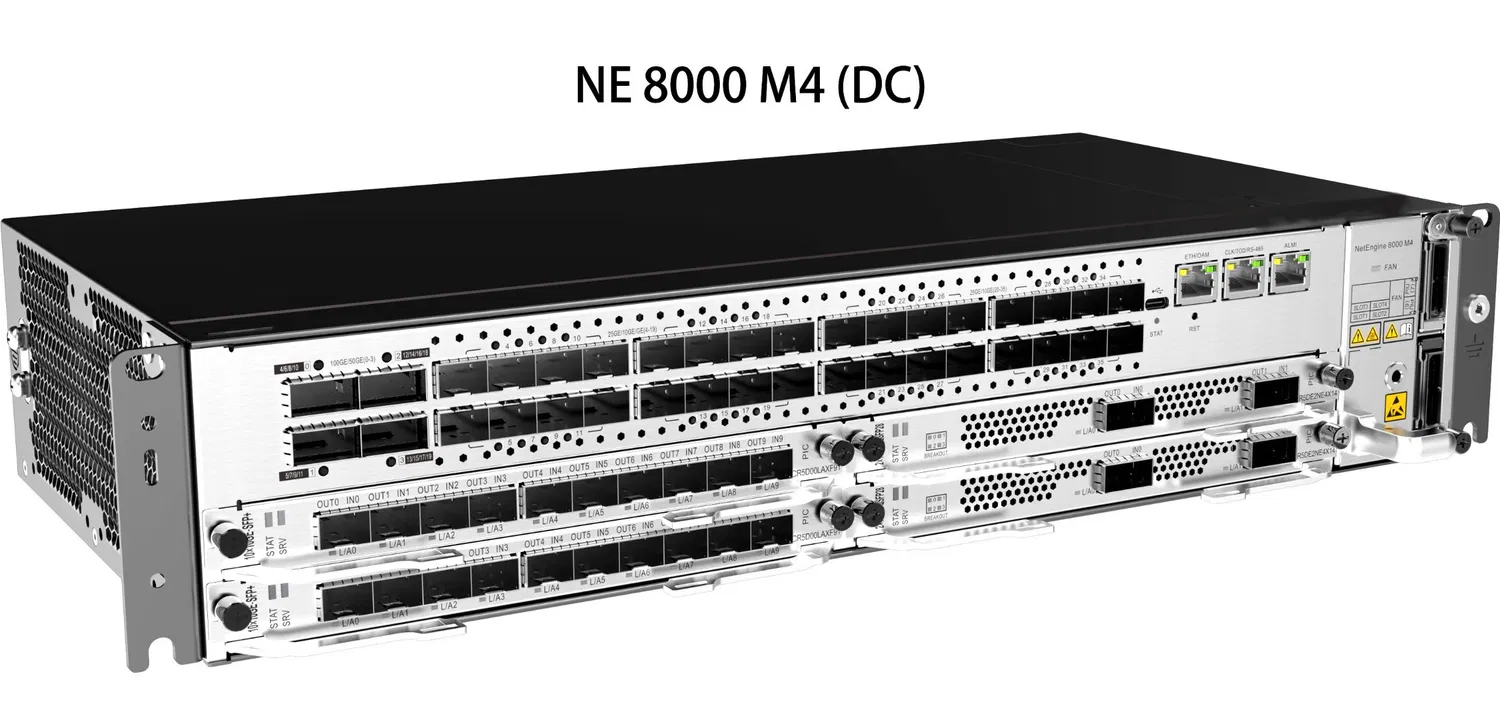

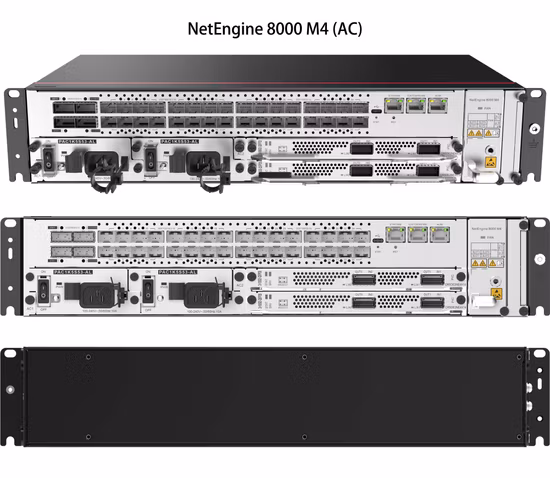

Product Images of Enterprise Router Netengine 8000 M4 Integrated Chassis Components
-
Enterprise Router Netengine 8000 M4 Integrated Chassis Components -
Enterprise Router Netengine 8000 M4 Integrated Chassis Components -
Enterprise Router Netengine 8000 M4 Integrated Chassis Components -
Enterprise Router Netengine 8000 M4 Integrated Chassis Components -
Enterprise Router Netengine 8000 M4 Integrated Chassis Components -
Enterprise Router Netengine 8000 M4 Integrated Chassis Components -
Enterprise Router Netengine 8000 M4 Integrated Chassis Components
Find Similar Products
Product Description
Overview: NetEngine 8000 M4
 |
|
Technical specifications
| NE8000 M6 Integrated Chassis Components | ||||
| Part Number | 02355FTG | 02355JFT | 02355FTE | 02355JFR |
| Model | CR8PM4BASAC2 | CR8PM4BASAC6 | CR8PM4BASDC2 | CR8PM4BASDC6 |
| Description | NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box) | NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box) | NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box) | NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box) |
| Height x Wide x Depth | 8.89cm(2U) x 44.2cm x 22cm | |||
| Weight with packaging [kg(lb)] | DC: 9.9 kg (21.83 lb) AC: 11.9 kg (26.24 lb) |
|||
| Weight without packaging (full configuration) [kg(lb)] | DC: 10.4 kg AC: 10.8 kg |
|||
| Weight without packaging [kg(lb)] | DC: 7.2 kg (15.87 lb) AC: 9.2 kg (20.28 lb) |
|||
| Weight with packaging (full configuration) [kg(lb)] | DC: 13.1 kg AC: 13.5 kg |
|||
| Typical power consumption (with configuration) [W] | DC: 283.4 W AC: 305.1 W |
|||
| Typical heat dissipation (with configuration) [BTU/hour] | DC: 919.47 BTU/hour AC: 989.87 BTU/hour |
|||
| Heat dissipation mode | Air cooling | |||
| Power supply mode | DC, AC | |||
| Input voltage range [V] | DC: -40 V to -72 V AC: 90 V to 290 V |
|||
| Rated input voltage [V] | DC: -48 V/-60 V AC: 200 V-240 V/100 V-127 V dual-live wire, supporting 240 V HVDC |
|||
| Maximum input current [A] | DC: 30 A AC: 10 A |
|||
| Rated output power [W] | DC: 1200 W AC: 1500 W |
|||
| Number of slots | 8 | |||
| Number of service board slots | DC: 6 AC: 2 |
|||
| CPU | 16-core, 2.0 GHz | |||
| SDRAM | 16GB | |||
| Storage | 16 GB | |||
| Flash memory | 64MB | |||
| Switching capacity [bps,bit/s] | 2.4 Tbit/s (Bidirectional) | |||
| Redundant fans | 1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F) (one fan module contains two fans) | |||
| Redundant power supply | 1+1 | |||
| Noise at normal temperature (acoustic power) [dB(A)] | < 65 dB(A) | |||
| Airflow direction | From left to right | |||
| Maximum input cable size | DC: 10 mm^2. Recommended: 4 mm^2 (0-14 m), 6 mm^2 (15-20 m), 10 mm^2 (21-30 m) AC: Standard C13 cable |
|||
| Front-end circuit breaker/fuse | DC: ≥ 16 A (Based on long-term evolution requirements and site conditions, the recommended current is greater than or equal to 32 A.) AC: ≥10 A |
|||
| Long-term operating temperature [°C(°F)] | DC: -20°C to +60°C (-4°F to +140°F) AC: -20°C to +55°C (-4°F to +131°F) |
|||
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158 °F) | |||
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 0.5°C/min (32.9°F/min), non-condensing | |||
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing | |||
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing | |||
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing | |||
| Storage altitude [m(ft.)] | < 5000 m (16404.2 ft.) | |||
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].) | |||
| MTBF [year] | DC: 33.4 AC: 31.62 |
|||
| MTTR [hour] | 00000001 | |||
| Availability | DC: 0.999998291 AC: 0.999998195 |
|||
| Maximum number of electrical ports | DC: 96 AC: 56 |
|||
| Maximum number of 100GE ports | DC: 12 AC: 8 |
|||
| Maximum number of 40GE ports | DC: 12 AC: 8 |
|||
| Maximum number of 10GE ports | DC: 72 AC: 52 |
|||
| Maximum number of FE ports | DC: 96 AC: 56 |
|||
| Maximum number of physical ports on the entire device | 116 | |||
| Maximum number of 50GE ports | DC: 12 AC: 8 |
|||
| Maximum number of 25GE ports | DC: 64 AC: 48 |
|||
| Maximum number of GE ports | DC: 96 AC: 56 |
|||
