Основная Информация
Тип
Передненавесное Оборудование для ТВ
функция
Передача видеосигналов оборудование
Audio Compression
AAC, AAC+, AAC++, MP3, MP2, Dolby Digital AC-3
Video Compression
H.265/Hevc, H.264/MPEG4
Protocol
HTTP/Rtsp/Rtmps/Srt/UDP/Rtp/Onvif/Hls
Торговая Марка
kunuomagic
Транспортная Упаковка
стандартный пакет экспорта
Описание Товара

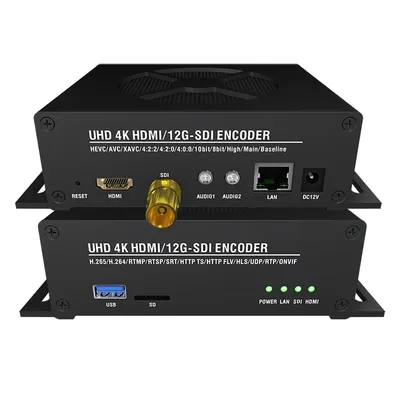

H.265 UHD 4K 60fps HD MI SDI Video Streaming Encoder support 1*HD MI input, 1*SDI Input, it can also output 2 channels TS over IP in H.265 HEVC format with multi-screen multi-protocol, multi-resolution to meet the increasing demand
for high quality video delivery to Internet and all kinds of terminal devices. It's become more and more popular to head-end IPTV& OTT systems, Hotel, Hospitality & Health Clubs,Remote live Rebroadcasts and real-time transmission, Digital Signage Project,OTV-4KHS Encoder works with SRT/HTTP/HLS/FLV/RTSP/RTMP/RTMPS/UDP/RTP (Unicast/Multicast) Stream Protocols and ON VIF. Also, the OTV-4KHS Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Main Features
* Video Input: 1*channel HD MI input,1*channel 12G-SDI Input, encoding at the same time.
* Video resolution up to Full UHD 4K@60fps
* Capable of Real-time Recording locally or external storage by USB port/SD Card.
* Output 2 groups IP streams with different resolution, bitrate and protocol
* Video compression: HEVC Main(Default)/HEVC Main Intra/HEVC Main 10 Intra/H.264
* Audio compression: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus
* Video bitrate Control: CBR/VBR 16Kbps ~ 32Mbps
* Support Text/image OSD, image overlay
* Support automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance
* Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
* Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually
* Take effect immediately when applied the settings, no need to restart.
* Configurable of Multi-bitrate, Multi-resolution, Multi-protocol
* Providing SRT, HLS, RTSP, HTTP, UDP and RTMPs protocol
* Compatible with ON VIF Network Video Protocol
* Any IOS browsers are able to have streams from IPTV Streaming Encoder in Anytime,
* Anywhere by HLS protocol without install any software players.
* Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMPs protocol with software
players(such as VLC).
* System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
* Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER,compatible with Windows VFW
software architecture and WDM mode
* Web-based management
|
Item | Description |
Audio and video interface |
Video input: 1CH H DMI +1 CH SDI
Audio input: 1*H DMI built-in audio, 1*SDI built-in audio, 2 analog external audio |
Video input |
Maximum resolution: 4096x2160@60 (backward compatible)
Color space: HDR1010bit |
Video Encoding |
Encoding type: H.265
Maximum encoding capacity: SDI and H DMI can be input and encoded at the same time, one channel is 4K60 + another channel 1080P60
Encoding format: 4.2.0 8bit/4.2.2 8bit/4.0.0 8bit/4.2.0 10bit/4.2.2 8bit/4.0.0 8bit
Encoding Profile: HEVC Main(Default)/HEVC Main Intra/HEVC Main 10 Intra/HEVC Main Still Picture/ HEVC Main 12/ HEVC Main 4:2:2
Intra/
HEVC Main 4:2:2 10/ HEVC Main 4:2:2 10 Intra/ HEVC Main 4:2:2 12/
HEVC Main 4:4:4/ HEVC Main 4:4:4 Intra/ HEVC Main 4:4:4 10/
HEVC Main 4:4:4 10 Intra/ HEVC Main 4:4:4 Still Picture
Encoding type: H.264
Encoding format: 4.2.0 8bit/4.2.2 8bit/4.2.0 10bit/4.2.2 8bit
Encoding Profile: AVC Constrained Baseline/ AVC Baseline/ AVC Main/
AVC Constrained High/ AVC Progressive High/ AVC High(Default)/
AVC High 10/ AVC High 10 Intra/ AVC High 4:2:2/ AVC High 4:2:2 Intra/Sony XAVC High 10 Intra CBG/ Sony XAVC High 10 Intra VBR/
Sony XAVC Main/ Sony XAVC High/ SonyXAVC High 4:2:2 |
Other Codes: |
Encoding frame rate: the same as the input frame rate / automatic / custom frame rate 5-60 adjustable
Key frame interval (frame): 5-300 adjustable
Bit rate (kbit): 32-64000 adjustable
Image quality range: high/high~high/medium~high/low~high/low~high
3840x2160/2560x1440/1980x1200/1920x1080/1680x1056/1600x1200/1600x900/1280x1024/1280x720/1024x768/1024x576/960x540/850x480/800x600/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/same
input resolution
Stream Control: cbr/vbr/strong vbr
Streaming: Support RTMP/RTSP/ RTSP(S)/HTTP TS/HTTP FLV/HLS/SRT/UDP multicast/RTP multicast |
Recording Capability |
Storage: USB3.0 U disk / SD card in NTFS/EXFAT/FAT32 format
View: SMB/CIFS file share (it can be copied to browser to open): \\192.168.1.168\encoder\ |
Audio Encoding |
Audio Input: Auto/H DMI/SDI/Analog 1/Analog 2
Encoding sample rate: 44100/48000/same as input sample rate
Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus
Encoding bit rate: AAC:48000~320000/AAC+:24000~48000/AAC++:12000~32000/MP3:64000~320000/ MP2: 64000~320000/
AC3:40000~640000/Opus:8000~256000
Left and right channels: L+R/L/R
Digital volume gain: -50~50
Noise Reduction: Disable/Enable
PTE stream usage, G711 encoding: disable/enable
File format: Ts format |
OSD |
Display area: Area 1/ Area 2/ Area 3
Transparency: 0-255
Type: Text/Picture/Time
X coordinate: 0-1920
Y coordinate: 0-1080
LOGO: 4 LOGO can be uploaded for selection
Font size: 8-72Background color: transparent/white/black
Font color: RGB color |
Management |
Configuration Interface: web-based UIUpgraded: via network
Connector: RJ45, 1000M Ethernet interface.
ON VIF: Support ON VIF to find and browse videos |
The Working Environment |
Power Supply:DC 12V~3A Power consumption:Less than 15W
Operation temperature:0 -50°C
Storage temperature:-20-60°C
Dimensions:200mmx43mm x105mm
Weight:0.468Kg |
